MEAN WELL HVGC-240-1050A [3/9] Hvgc 24
![MEAN WELL HVGC-240-700AB [3/9] Hvgc 24](/views2/1700355/page3/bg3.png)

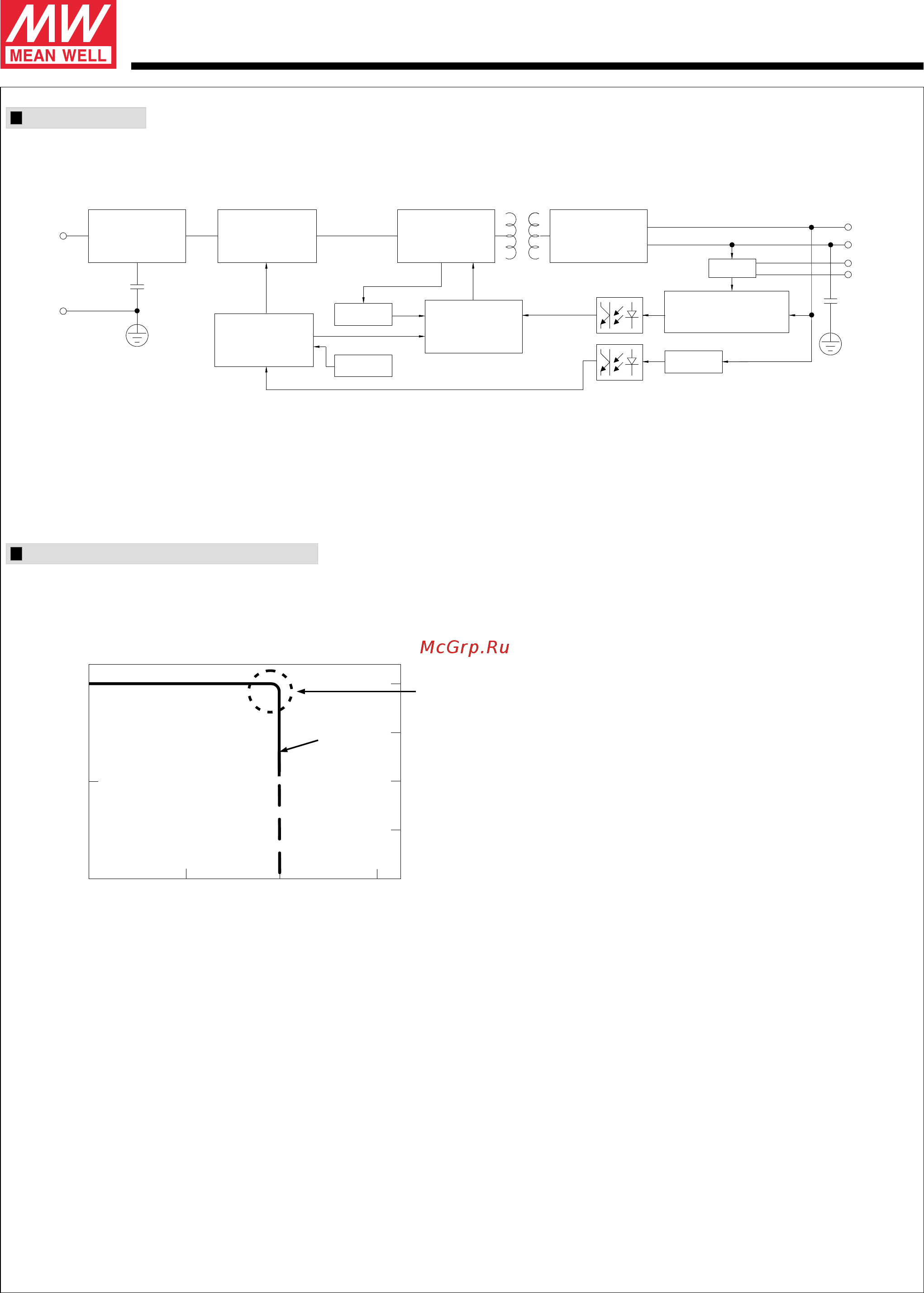

Block Diagram
PFC fosc : 45KHz
PWM fosc : 65KHz
DIM+
(B Type)
DIM-
DETECTION
PWM
CIRCUIT
O.L.P.
EMI FILTER
RECTIFIERS
POWER
SWITCHING
FILTER
&
RECTIFIERS
+V
-V
I/P
FG
CONTROL
O.V.P.
&
O.L.P.
PFC
CIRCUIT
PFC
CONTROL
O.T.P.
240W Constant Current Mode LED Driver
HVGC-240 series
File Name:HVGC-240-SPEC 2018-10-18
DRIVING METHODS OF LED MODULE
Typical output current normalized by rated current (%)
Vo(%)
100
50
50 100
Io (%)
Constant
Current area
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
※ This series works in constant current mode to directly drive the LEDs.
