•VRV
®
Systems • Indoor Units
145
Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

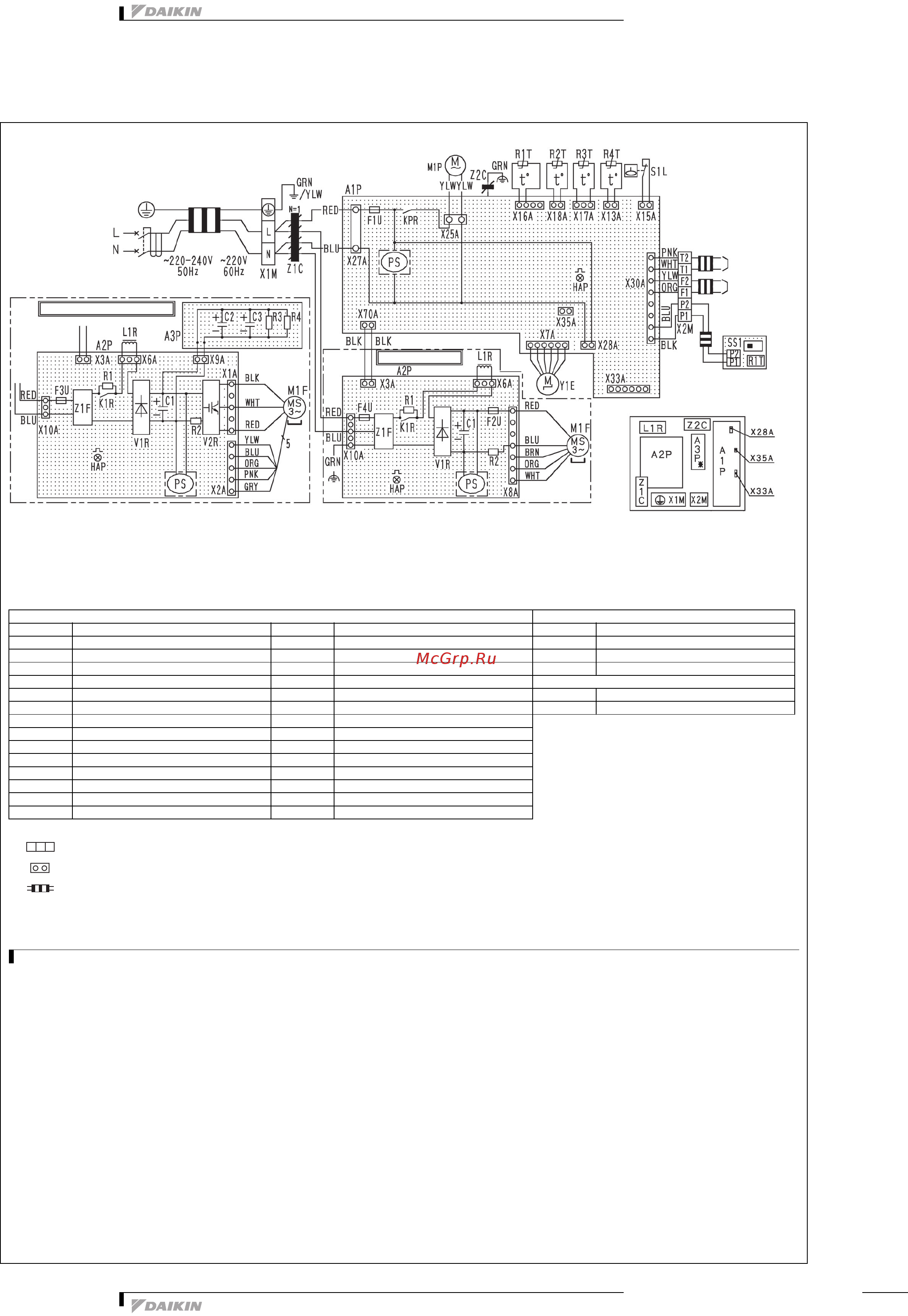

8 Wiring diagram
8 - 1 Wiring diagram
FXMQ-P
3D058783
NOTES
1 In case of using central remote control, connect it to the unit in accordance with the attached installation manual.
2 When connecting the input wires from outside, forced off or on/off control operation can be selected by remote control.
In details, refer to the installation manual attached the unit.
Indoor unit Connector optional accessory
A1P Printed circuit board R1 Resistor (current limiting) X28A Connector (power supply for wiring)
A2P Printed circuit board (Fan) R2 Current sensing device X33A Connector (for wiring)
A3P Printed circuit board (Capacitor) R3, R4 Resistor (electric discharge) X35A Connector (adapter)
C1,C2,C3 Capacitor R1T Thermistor (suction air)
F1U Fuse (T, 3,15A, 250V) R2T Thermistor (liquid) Wired remote control
F2U Fuse (T, 5A, 250V) R3T Thermistor (gas) R1T Thermistor (air)
F3U Fuse (T, 6,3A, 250V) R4T Thermistor (discharge air) SS1 Selector switch (main/sub)
F4U Fuse (T, 6,3A, 250V) S1L Float switch
HAP
Light emitting diode (service monitor-green) (A1P, A2P)
V1R Diode bridge
KPR Magnetic relay V2R Power module
K1R Magnetic relay X1M Terminal strip (power supply)
L1R Reactor X2M Terminal strip (control)
M1F Motor (fan) Y1E Electronic expansion valve
M1P Motor (drain pump) Z1C,Z2C Noise filter (ferrite core)
PS Switching power supply (A1P, A2P) Z1F Noise filter
: Terminal Colors: RED: Red BRN: Brown ORG: Orange
: Connector BLK: Black GRY: Gray GRN: Green
: Field wiring WHT: White BLU: Blue
YLW: Yellow PNK: Pink
WIRING DIAGRAM
Wired remote control
(optional accessory)
Power
supply
For FXMQ50PVE • 63PVE • 80PVE • 100PVE • 125PVE
Input from outside
Note 2.
Transmission wiring
central remote
control
Note 1.
EL. COMPO. BOX (INDOOR)
Only FXMQ50PVE • 63PVE • 80PVE • 100PVE • 125PVE
For FXMQ20PVE • 25PVE •320PVE •40PVE
To X1M
To X70A(A1P)
