Zkteco ML10 [10/10] Test the lock by rotating the back handle and using the mechanical key a
![Zkteco ML10 [10/10] Test the lock by rotating the back handle and using the mechanical key a](/views2/1703521/page10/bga.png)
58mm
(5/64")
35mm
14mm
29mm
21mm
12mm
2mm

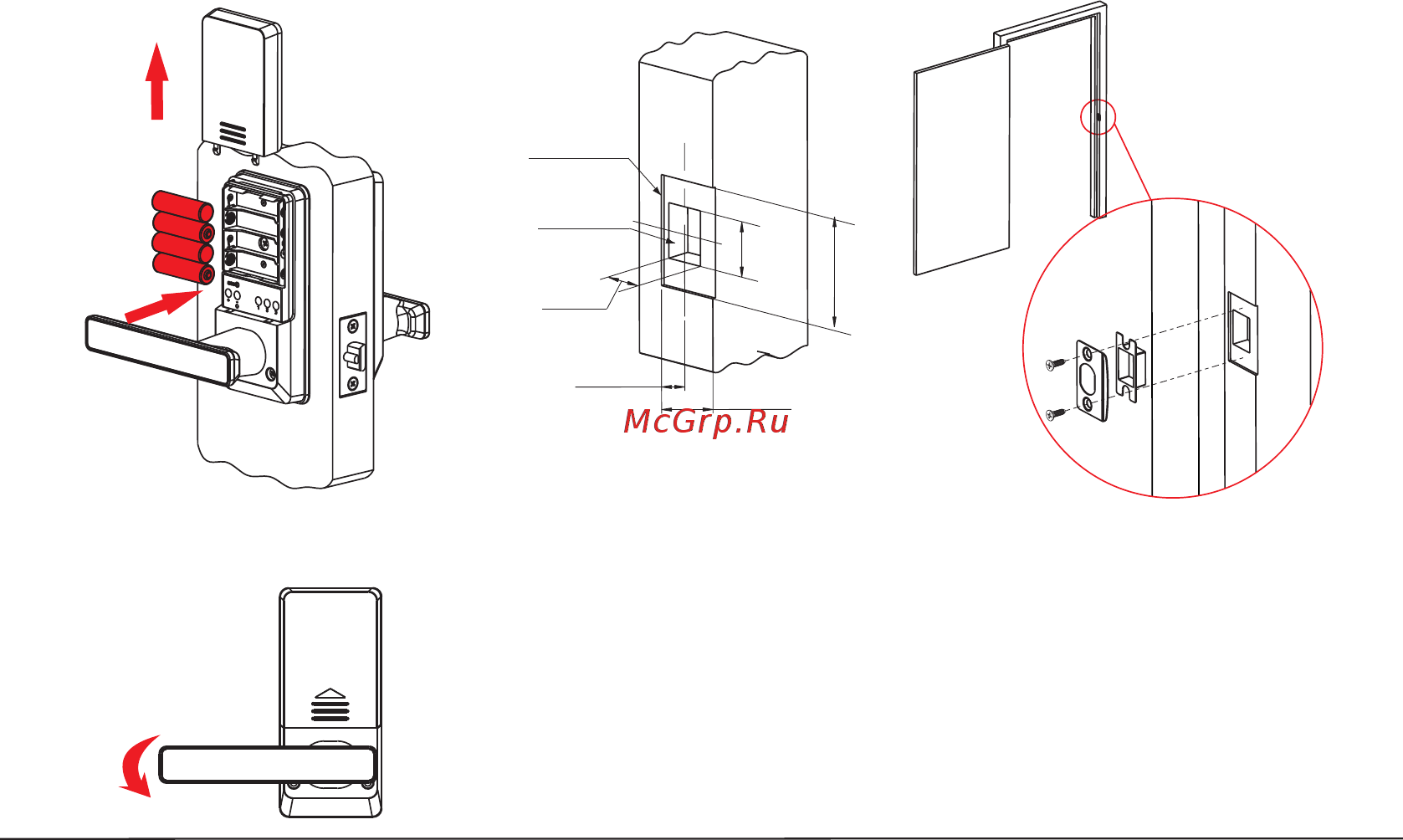

6. Insert batteries.
K
E
G
F
7. Mark and drill holes for the strike.
8. Test the lock by rotating the back handle and using the mechanical
key (A).
Note : When the door is l ocked and the clutch is idle, the front handle
can be turned, but the door will remain locked.
9
(15/32")
(53/64")
(35/64")
(1-3/8")
(1-9/64")
(2-9/32")
