Door Preparation

Note: The standard lock includes 2 mounting hardware packages only, which are used for the door

thickness of 39-46mm and 47-54 mm separately.

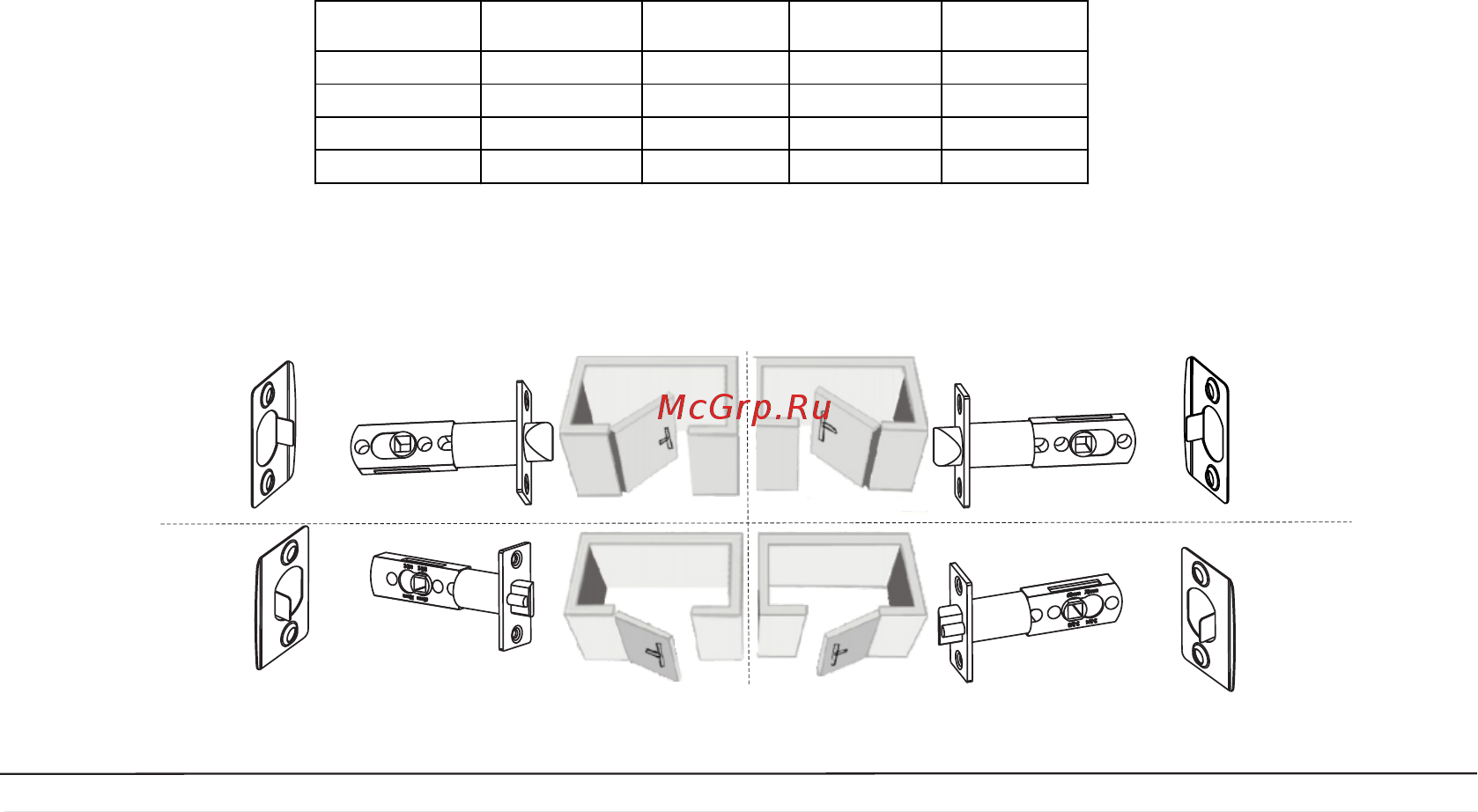

Note: Please refer to the above picture to adjust the direction of strike plate F and latch D.

1. Check the door thickness and prepare the corresponding mounting

hardware package.

2. Check door opening direction.

30~38 56 20 10 25

39~46 64 30 10 35

47~54 72 35 10 40

55~60 80 45 10 50

H Spindle Length

(mm)

J Screw Length

(mm)

M Screw Length

(mm)

L Screw Length

(mm)

Door Thickness

(mm)

Left inward Right inward

Left outward Right outward
