File Name:ODLV-45-SPEC 2017-07-21
ODLV-45 ser i e s
45W PWM Output LED Driver

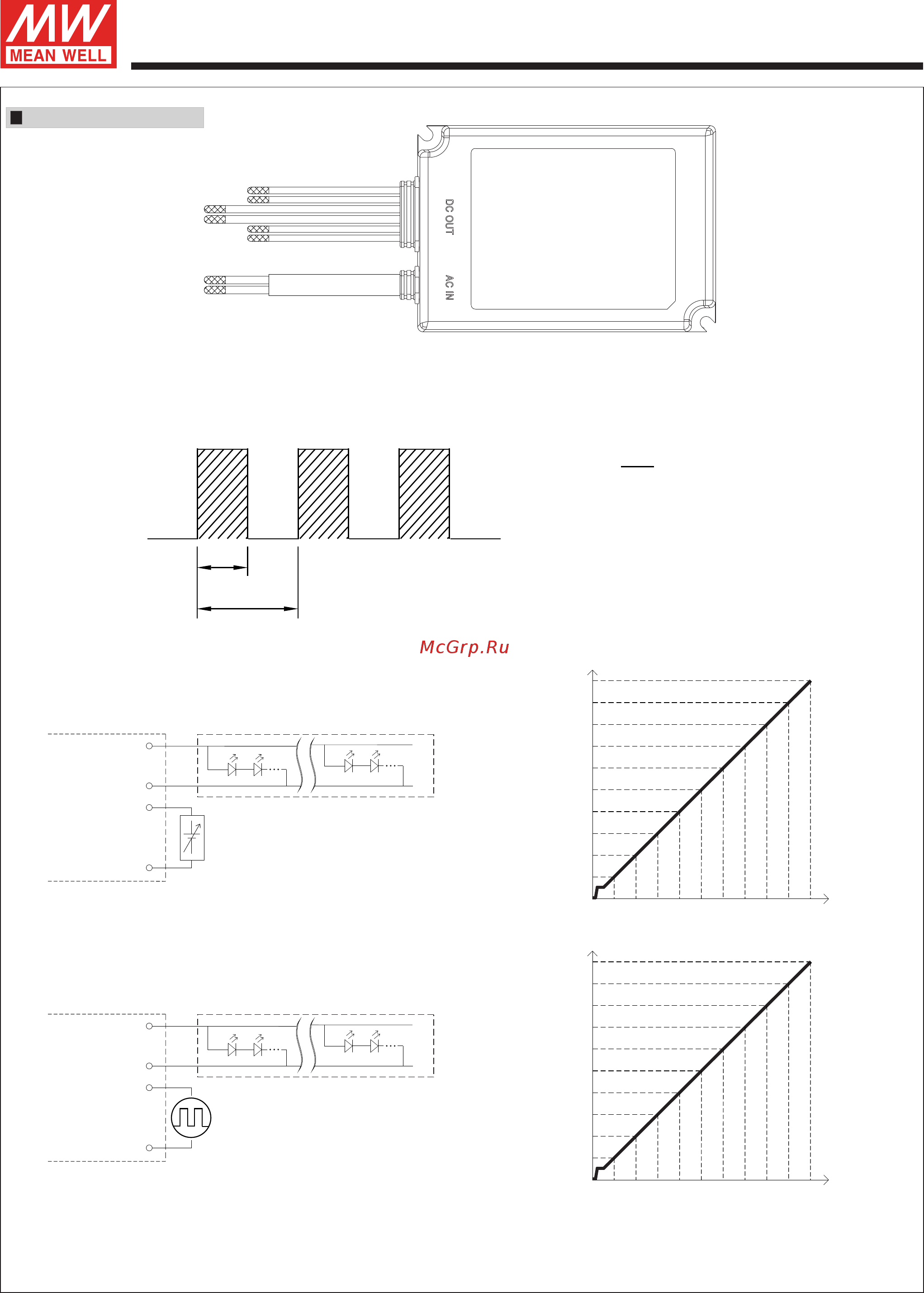

DIMMING OPERATION
2 in 1 dimming function
Applying additive 0 ~ 10VDC
Applying additive 10V PWM signal (frequency range 300~3000Hz):
Vo+
Vo-
DIM+
DIM-
+
+
+
-
-
-
DO NOT connect "DIM- to Vo-
Additive Voltage
Vo+
Vo-
DIM+
DIM-
+
+
-
-
DO NOT connect "DIM- to Vo-
Additive PWM signal
0V 1V 2V 3V 4V 5V 6V 7V 8V 9V 10V
10%
0%
20%
30%
40%
50%
60%
70%
80%
90%
100%
0%
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
10%
0%
20%
30%
40%
50%
60%
70%
80%
90%
100%
Dimming input: Additive voltage
Duty cycle of additive 10V PWM signal dimming input
Dimming principle for PWM style output
Dimming is achieved by varying the duty cycle of the output current.
Duty cycle of output current (%)Duty cycle of output current (%)
Note : 1. Min. duty cycle of output current is about 8% and the output current is not defined when 0%< Iout<8%.
2. The duty cycle of output current could drop down to 0% when dimming input is about 0Vdc or 10V PWM signal with 0% duty cycle.
AUX+(Yellow)
AUX-(Green)
V +(Red)
0
V -(Black)
0
DIM+(Purple)
DIM-(Gray)
ACL(Brown)
ACN(Blue)
ON
OFF
TON
T
Output DC current
Io=0A
Output PWM frequency : 1KHz(±20%)
Duty cycle(%) = ×100%
TON
T
