2 Dimensional drawing & centre of gravity

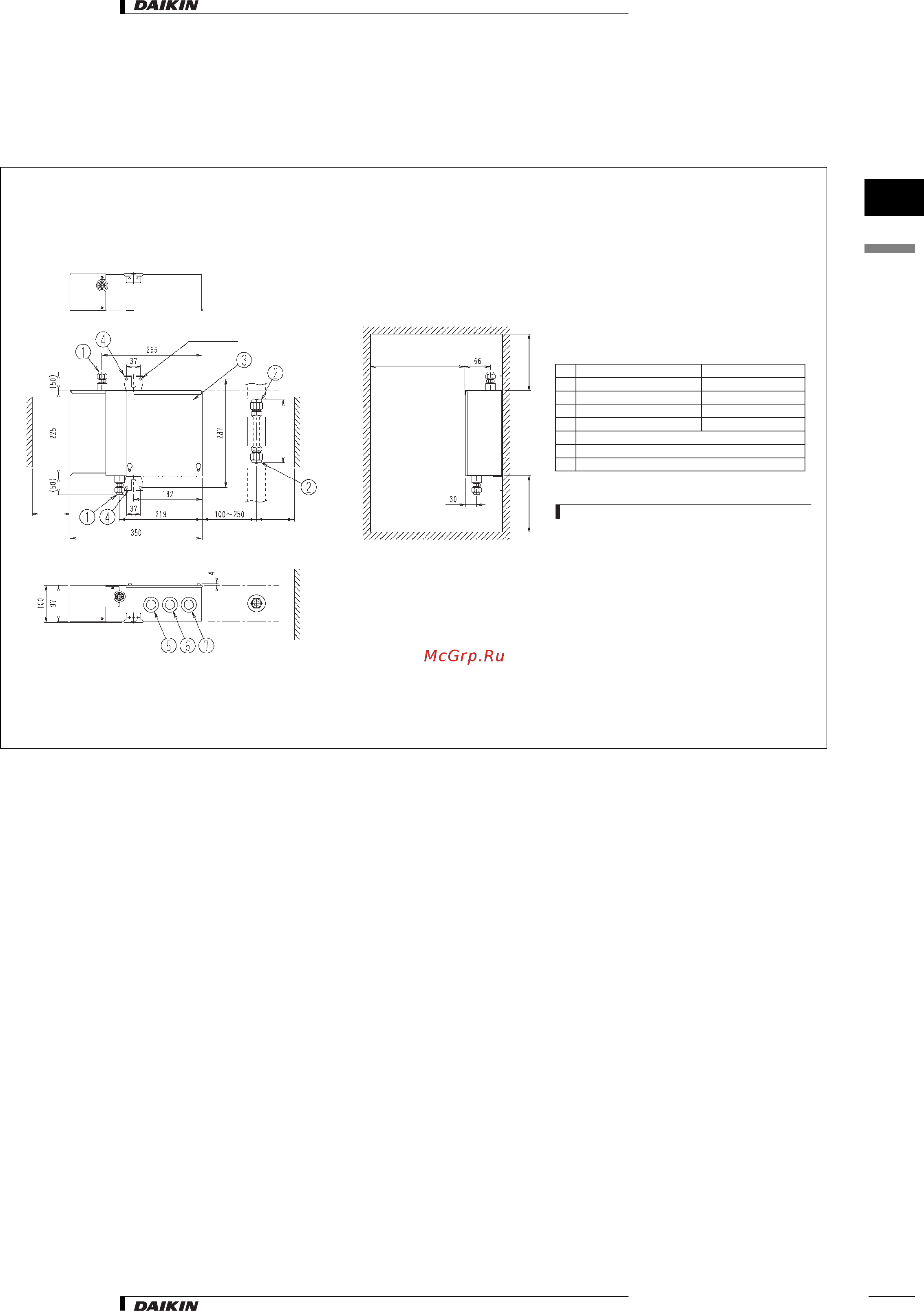

2 - 1 Dimensional drawing

2 - 1 - 1 Wall mounted installation

BEVQ-

MVE

3D045389

(Suspension bolt pitch)

(165.5)

(Servicing space)

4-M4 Mounting

100 or more

(Servicing space)

500 or more

(Servicing space)

200 or more

(Servicing space)

200 or more

Note 2

INSTALLATION FIGURE

(When installing the unit on wall)

NOTES

1 Be sure to install wire connection port to be sure to become

downward.

2 Be sure to secure the space which can be the thightening work of

the flare nut.

Nr Part name Description

1 Liquid pipe connection port ø 9.5 mm Flare connection

2 Gas pipe connection port ø 15.9 mm Flare connection

3 Electric parts box

4 Suspension bolt

5 Wire connection port (Indoor unit conncection)

6 Wire connection port (Power supply • Ground)

7 Wire connection port (Transmission (VRV) • Gas pipe thermistor)
