www.tracopower.com Page 1 of 5

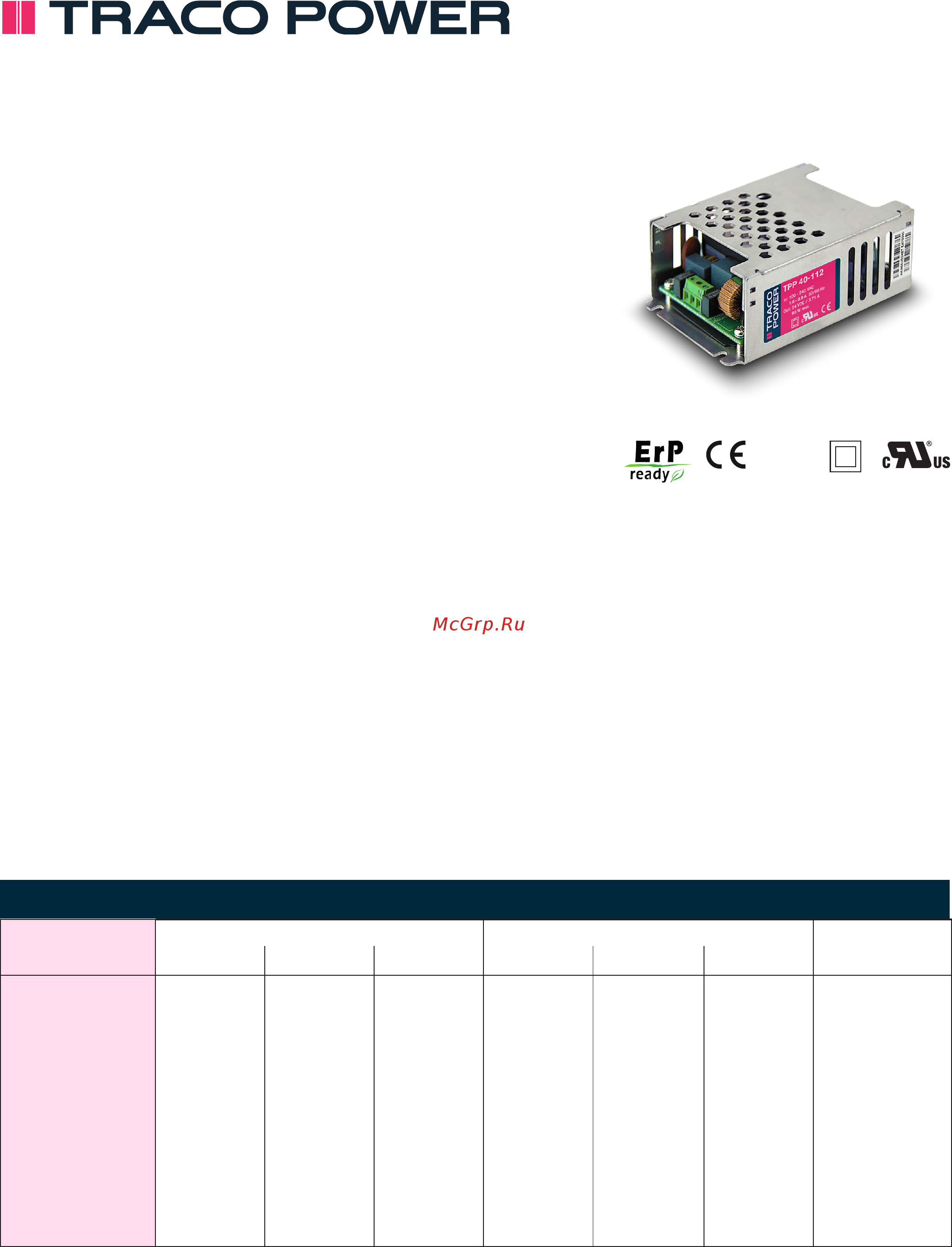

AC/DC Medical Power Supply TPP 40 Series, 40 Watt

Models

• Enclosed power supply with screw

terminal connection

• Certiﬁcation according to IEC/EN/ES

60601-1 3rd edition for 2MOPP

• Low leakage current <75 A rated for

BF applications

• Risk management process according to

ISO 14971 including risk management ﬁle

• Acceptance criteria for electronic assem-

blies according to IPC-A-610 Level 3

• EMC emission to IEC 60601-1-2 ed.4

• Protection class l and ll

• Approved for operation up to 5000 m MSL

• Ready to meet ErP directive, < 0.15 W

no load power consumption

• 5 year product warranty

The TPP 40 Series of 40 Watt AC/DC power supplies feature a reinforced dou-

ble I/O isolation system according to latest medical safety standards IEC/EN ES

60601-1 3rd edition for 2  MOPP up to 5000 m MSL. The earth leakage current

is below 75 A what makes the units suitable for BF (body ﬂoating) applications.

The excellent efﬁciency of up to 92% allows a high power density for the stan-

dard 2.44” x 3.0” packaging format. The full load operating temperature range

is –40°C to +70°C while it goes up to 85°C with 50% load derating. The EMC

characteristic complies to IEC 60601-1-2 ed.4 and is dedicated for applications

in industrial and domestic ﬁelds. High reliability is provided by use of industrial

quality grade components and an excellent thermal management. It makes the

products an ideal solution for medical devices and for demanding safety and

space critical applications.

Order code Output voltage Output current max. Efﬁciency max.

Vout 1 Vout 2 Vout 3 Vout 1 Vout 2 Vout 3

TPP 40-105

5 VDC 8.0 A 90 %

TPP 40-112

12 VDC 3.34 A 92 %

TPP 40-115

15 VDC 2.67 A 92 %

TPP 40-124

24 VDC 1.67 A 92 %

TPP 40-221

+12 VDC +5 VDC 3.34 A 4 A 89 %

TPP 40-231

+15 VDC +5 VDC 2.67 A 4 A 88.5 %

TPP 40-251

+24 VDC +5 VDC 1.67 A 4 A 86 %

TPP 40-321M2

+12 VDC +5 VDC –12 VDC 3.34 A 4 A 0.5 A 88 %

TPP 40-331M3

+15 VDC +5 VDC –15 VDC 2.67 A 4 A 0.5 A 88 %

TPP 40-3512

+24 VDC +5 VDC +12 VDC 1.67 A 4 A 0.5 A 86 %

Models

prepared

C B

Scheme

ES 60601-1

Note: - Vout 1 is ajustable by ±10% with internal potentiomet

- Multi output models have a common ground (not isolated)

- Total power should not exceed 40 Watt for continuose operation

- Other output voltages are available on request

Open frame version with pin connection

see TPP 40A Series

www.tracopower.com/overview/tpp40a
