TPP 40 Series, 40 Watt
www.tracopower.com
© Copyright 2018 Traco Electronic AG Specifications can be changed without notice!
Page 5 of 5
Rev. June 05. 2018

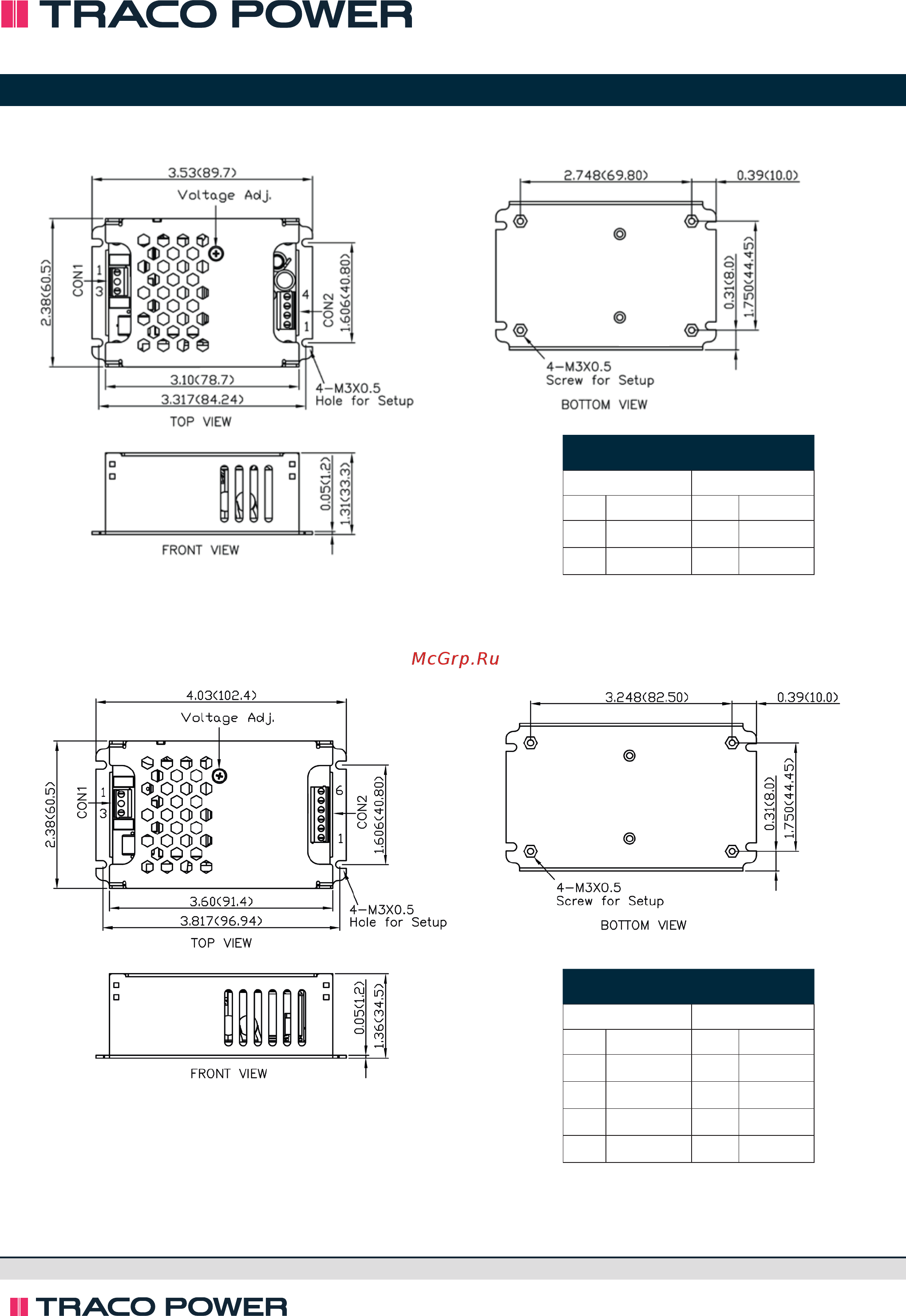

Outline Dimensions
Single output enclosed:
Input Output
Pin Single Pin* Dual
1
Line
1,2
–Vout
3
Neutral
3,4
+Vout
Screw Terminal
*Terminal rated for 10 A max.
(at higher current connection has to be split)
Multi output enclosed:
Dimensions in inch, () = mm
Tolerances: x.xx±0.02 (x.x±0.5) x.xxx±0.01 (x.xx±0.25)
Wire dimensions range 26 - 16 AWG
M3×0.5 screw locked torque MAX 5Kgf.cm/0.49N.m
Terminal screw locked torque MAX 2Kgf.cm/0.2N.m
Weight: 216 g (7.80 oz)
Weight: 169 g (5.96 oz)
Input Output
Pin Single Pin* Dual
1
Line
1
Vout 3
3
Neutral
2,3
Com
4,5
Vout 2
6
Vout 1
Screw Terminal
*Terminal rated for 10 A max.
(at higher current connection has to be split)
