6Main features
6-1 Creating maximum comfort
6-1-4 PID control
Proportional Integral Derivative control with an automatic capacity balancing circuit:
– enables the use of lengthy piping up to 100 meters (actual length)
– consists of two control systems:
1Oil control system that controls the refrigerant oil volume to prevent it from raising or backing up in the pipes
2 Refrigerant flow stabilization mechanism: prevents refrigerant drift, caused by level difference of indoor units in the same system.
6-1-5 Operation control of small capacity indoor units
If the operating frequency is minimal, the refrigerant pressure and outdoor temperature are detected, the number of control steps are calculated, and
capacity of outdoor unit heat exchanger (refrigerant accumulates in coils) and air flow of outdoor unit fans (controls pole change of the two fans) are
controlled.
If operating a small-capacity indoor unit, the bypass valve is controlled (ON/OFF), with capacity control being executed at a minimum of 14% for a 5HP
outdoor unit (when operating one 20-class indoor unit), or a minimum of 8% for 8 and 10HP outdoor units (when operating one 20-class indoor unit.

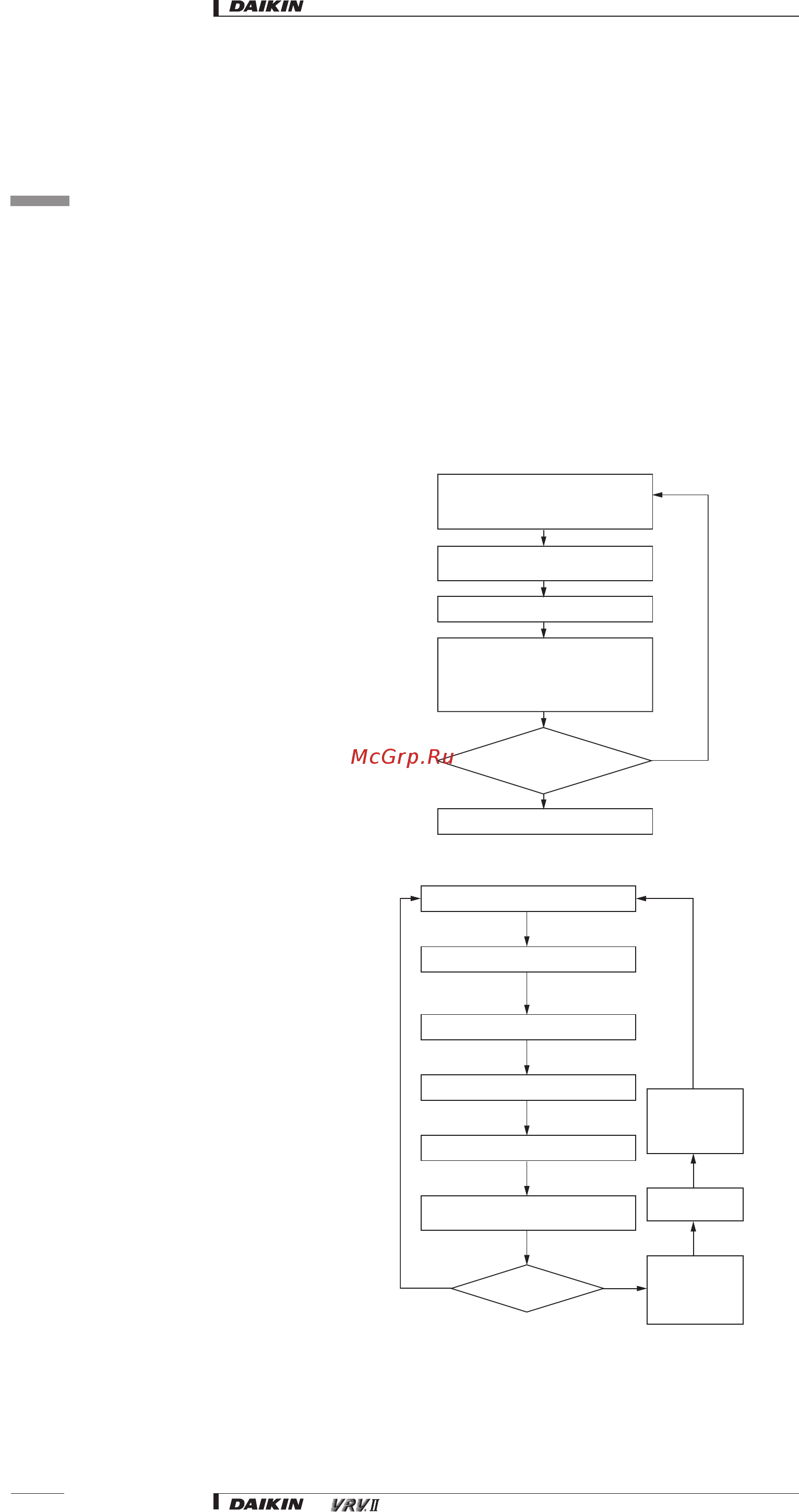

6-1-6 Control flow
Minimum Frequency
(5HP Outdoor Unit: 30Hz)
(8/10HP Outdoor Unit: 30Hz)
No
Are you operating a
small-capacity indoor unit?
Yes
Detection of Refrigerant Pressure and Outdoor
Temperature
Step Control Calculation
Bypass Valve On/Off Control
Capacity Control of Outdoor Unit
Heat Exchangers
Air Flow Control of Outdoor
Unit Fans
Deviation (difference between
sensed pressure and desired value)
No Yes
Frequency Alteration of Inverter Compressor
On/Off of ON/OFF Compressor
Outdoor Coil Capacity
Control Air Volume
Control by Outdoor
Unit Fan
Step Control
Calculation
Detection of
Refrigerant Pressure
and Outdoor
Temperature
Sampling Timer Count
Operating Pressure Detection by Pressure Sensors
Calculation of Constant for Integral Control
Total capacity Decision by Multi-Variable P-Control
Optimal Load Decision
Minimum Frequency
Every T Seconds
