Biostar B350ET2 Версия 6.x [53/71] Jfront_usb3_1 前置面板usb 3 1 gen1 5gb s 接头
![Biostar B350ET2 Версия 6.x [53/71] Jfront_usb3_1 前置面板usb 3 1 gen1 5gb s 接头](/views2/1707917/page53/bg35.png)

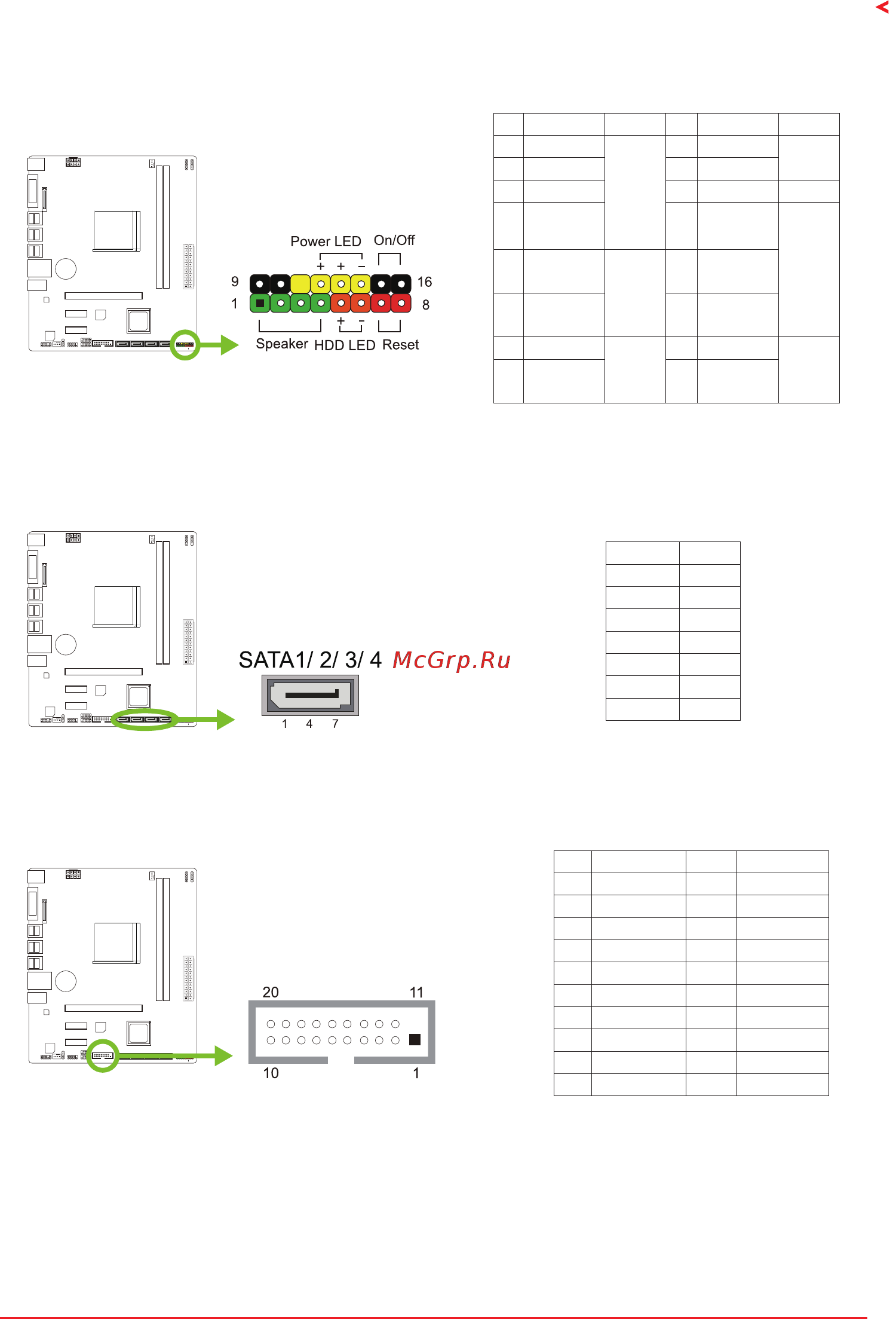

第二章: 硬件安装 | 15
B350ET2
PANEL1: 前置面板接头
此16针脚接口包含开机，重启，硬盘指示灯，电源指示灯和扬声器接口。
针 定义 功能 针 定义 功能
1 +5V
扬声器
接口
9 N/A
N/A
2 N/A 10 N/A
3 N/A 11 N/A N/A
4 扬声器 12
Power
LED (+)
电源指
示灯
5
HDD LED
(+)
硬盘指
示灯
13
Power
LED (+)
6
HDD LED
(-)
14
Power
LED (-)
7 接地
重启按
钮
15 电源按钮
开机按
钮
8
Reset
control
16 接地
SATA1~SATA4: 串行ATA 6�0 Gb/s 接口
此接口通过SATA数据线连接SATA硬盘。
针 定义
1 接地
2 TX+
3 TX-
4 接地
5 RX-
6 RX+
7 接地
JFRONT_USB3_1: 前置面板USB 3�1 Gen1 (5Gb/s)接头
PC前置面板支持附加的USB数据线，也可连接即插即用外围设备。
针 定义 针 定义
1 VBUS0 11 D2+
2 SSRX1- 12 D2-
3 SSRX1+ 13 接地
4 接地 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 接地
7 接地 17 SSRX2+
8 D1- 18 SSRX2-
9 D1+ 19 VBUS1
10 ID 20 Key
