B350ET2 Версия 6.x
Руководство пользователя Страница: 55

Biostar B350ET2 Версия 6.x [55/71] _rgbled1 2 rgb led装置 5050 smd 接头

第二章: 硬件安装 | 17

B350ET2

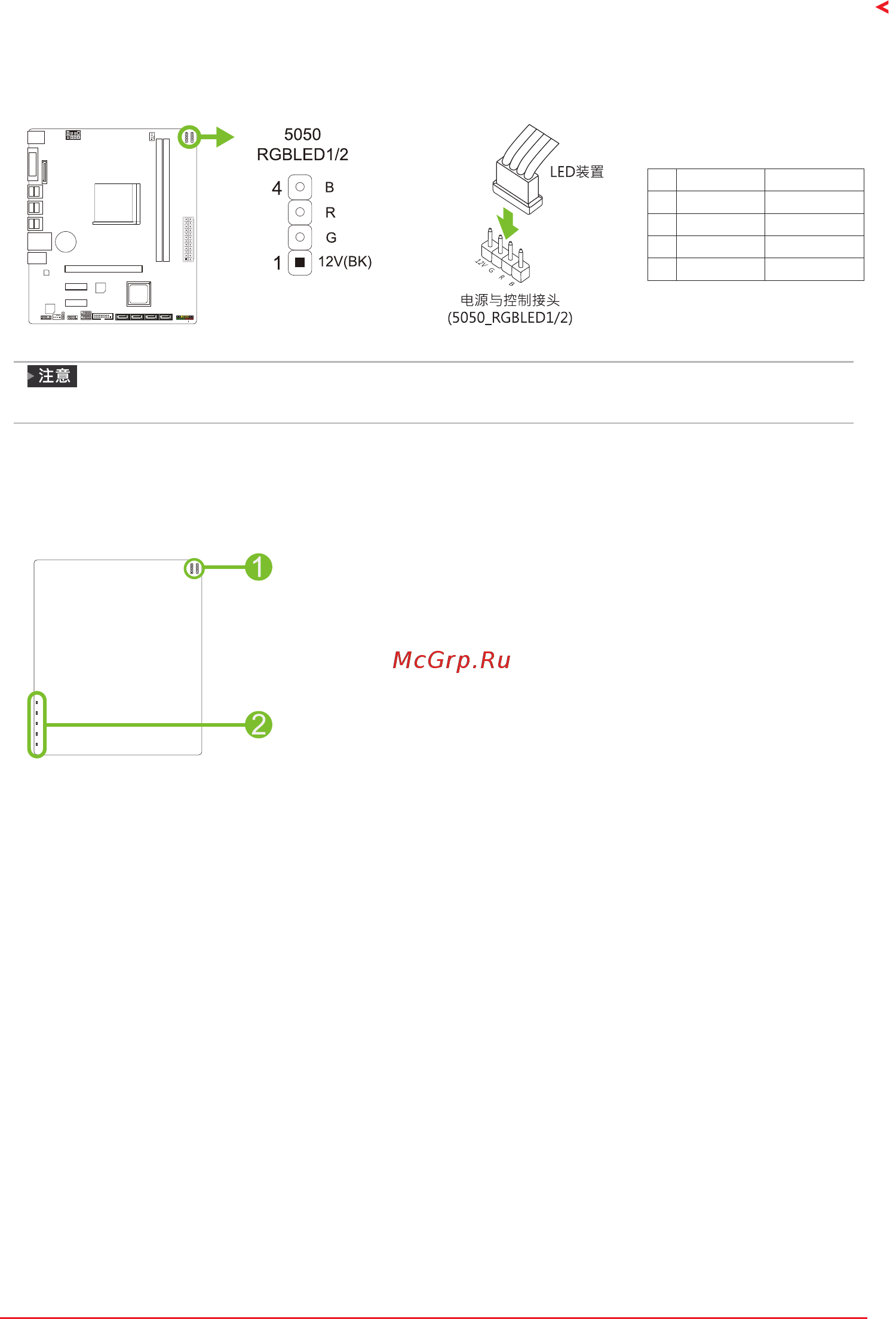

5050_RGBLED1/2: RGB LED装置 (5050 SMD) 接头

此接头提供12V电源与RGB控制讯号，可连接RGB LED装置（5050 SMD）。

针电缆颜色定义

1 12V (黑色) VCC12

2 G (绿色) LED_GREEN

3 R (红色) LED_RED

4 B (蓝色) LED_BLUE

确保正确將针脚连接到LED装置，错误的连接可能会损坏您的LED装置或主板。

2�8 LED灯

LED灯

下面的LED灯由RACING GT软件控制。请参考3.3章节的软件设置。

1. RGB LED 接头

2. 板载LED灯(x5)
