34 | Chapter 3: UEFI BIOS & Soware

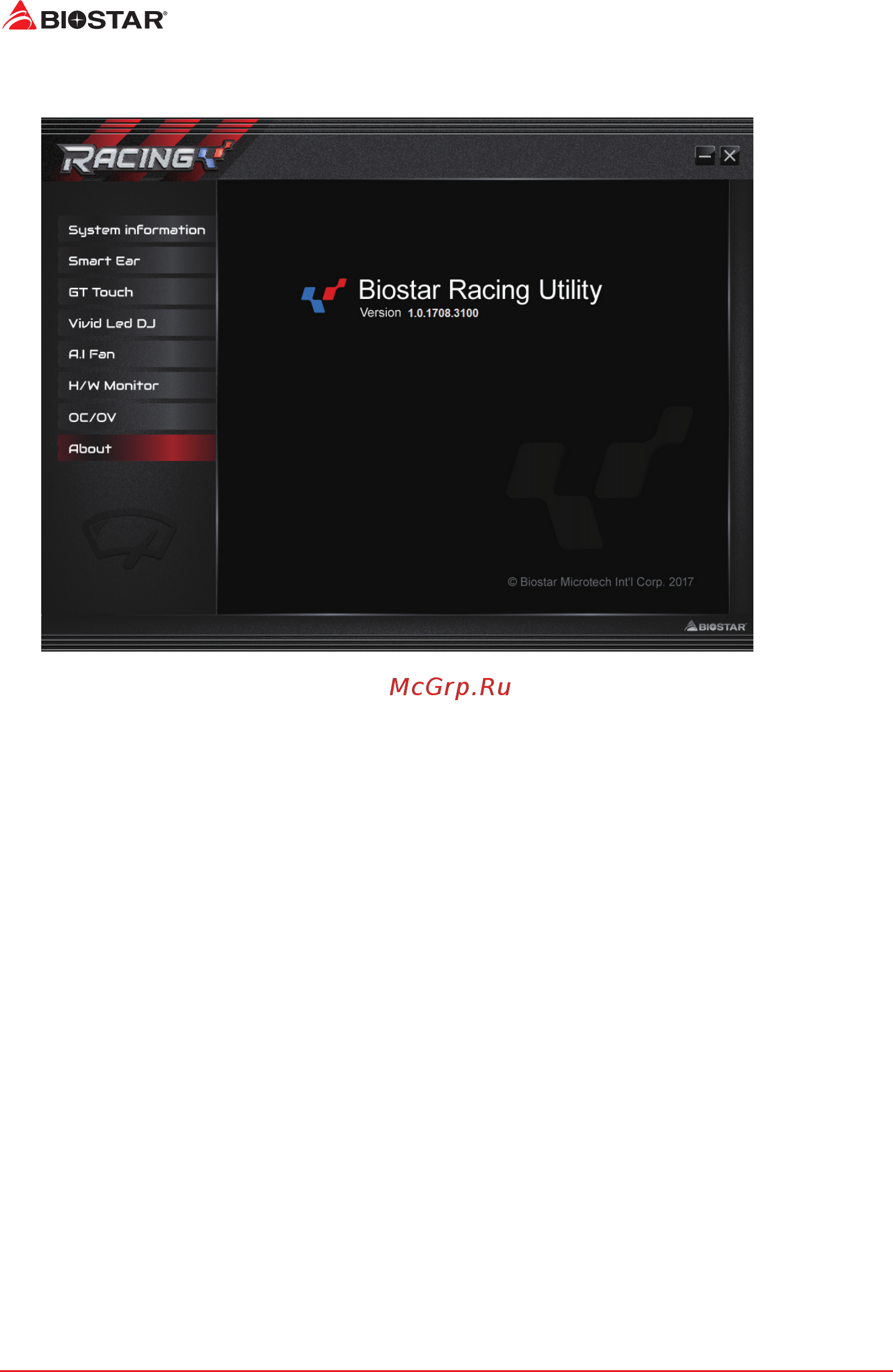

About

The About menu to display the Racing GT EVO Ulity version informaon.
