12 | 第二章: 硬件安装

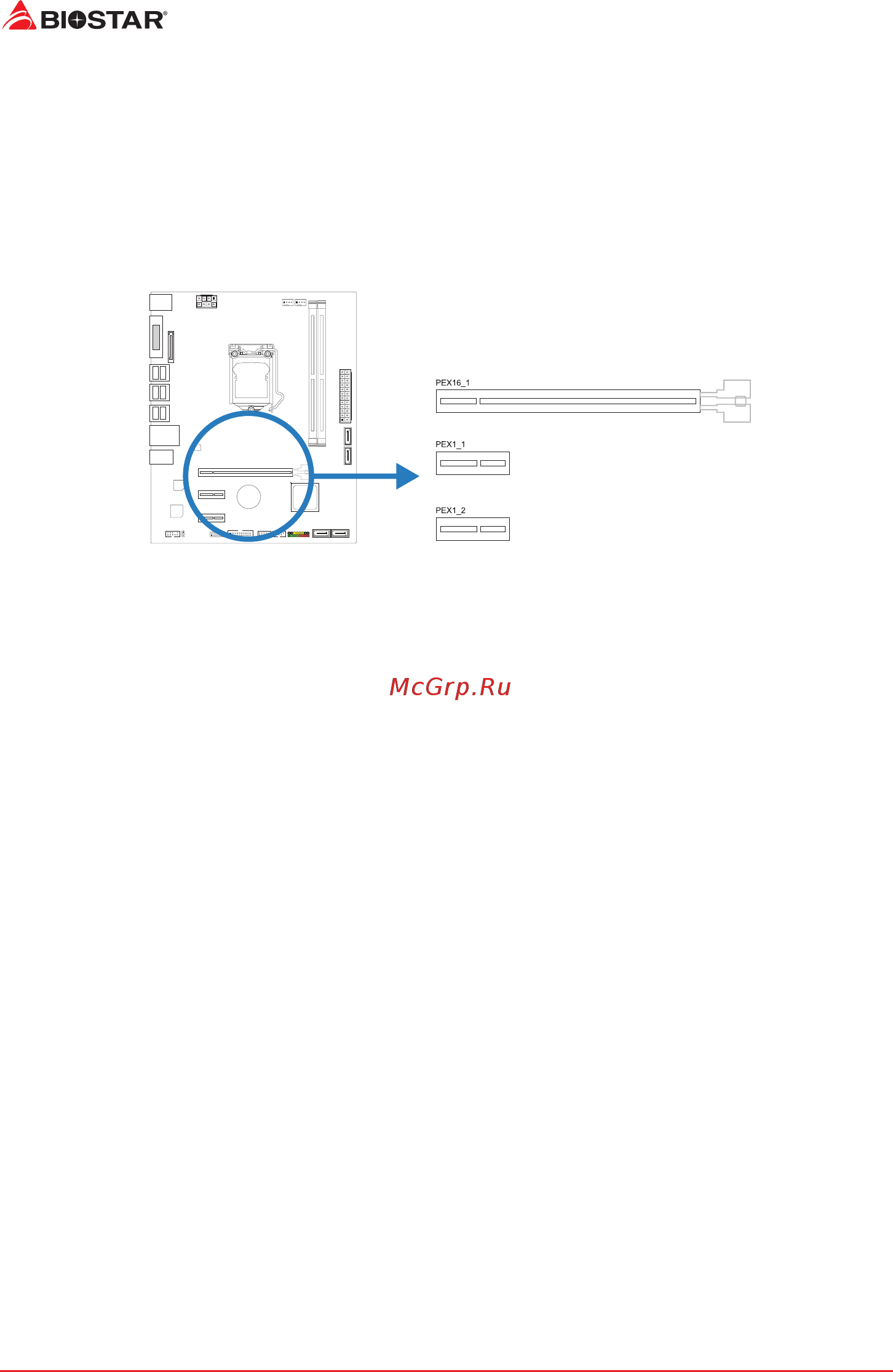

2�5 扩展槽
PEX16_1: PCI-Express Gen3 x16 插槽
• 符合PCI-Express 3.0规范。
• 同步单向最大理论带宽为16GB/s，总带宽为32GB/s。
PEX1_1/1_2: PCI-Express Gen3 x1 插槽
• 符合PCI-Express 3.0规范。
• 同步单向最大理论带宽为1GB/s，总带宽为2GB/s。
安装扩展卡
请参照以下步骤安装扩展卡：
• 安装扩展卡前请阅读扩展卡的相关指示说明。
• 打开电脑机箱后盖，移除螺丝和插槽支架。
• 将扩展卡按照正确的方向插入插槽，直到扩展卡完全就位。
• 用螺丝将扩展卡的金属支架固定到机箱后置面板。
• 还 原电 脑 机 箱后盖。
• 开机。如有必要，可为扩展卡更改BIOS设置。
• 安装扩展卡的驱动。
