Biostar Hi-Fi B250S1 Версия 6.x [51/64] Com1 串行端口
![Biostar Hi-Fi B250S1 Версия 6.x [51/64] Com1 串行端口](/views2/1707945/page51/bg33.png)
第二章: 硬件安装 | 17
Hi-Fi B250S1

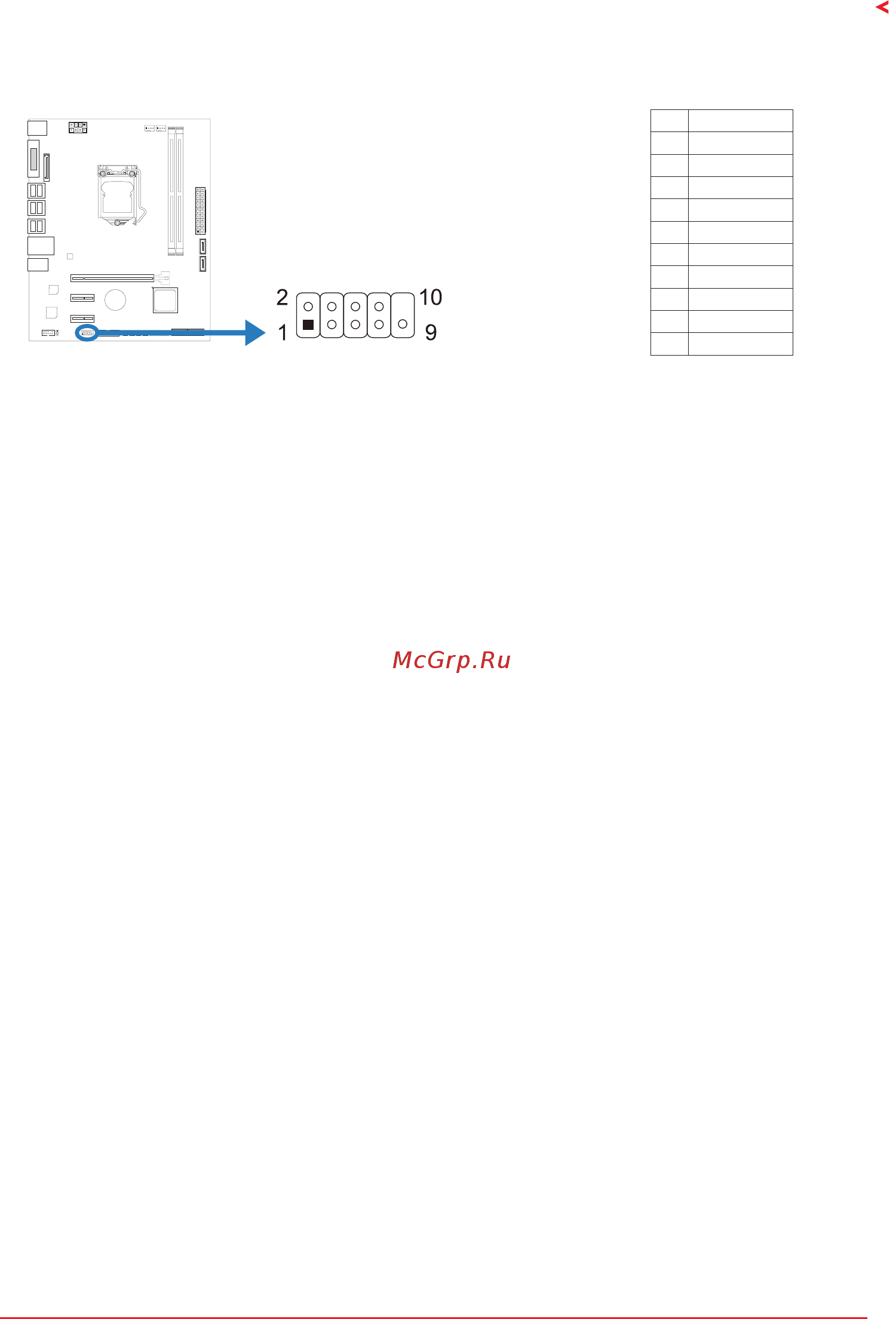

COM1:串行端口
此主板有一个串行端口可接出RS-232接头。
针 定义
1 载波检测
2 接收资料
3 发送数据
4 资料终端备妥
5 接地信号
6 资料集备妥
7 输送要求
8 清除发送
9 振铃指示器
10 Key
