SiE30-408 Adaptors for Connection of Air Conditioners
Appendix 209
5.2 Wiring Adaptor for Electrical Appendices (1)
(KRP2A61, 62)
Application /
Intended use
This adapter enables remote operation control, remote temperature setting, operation display,
fetch of malfunction display, and others, but cannot be used in combination with other
centralized controllers.
Since this adapter is connected to the centralized control line, “air conditioners, which are
connected to the centralized control lines (F1 / F2), are all operated under unified control.”

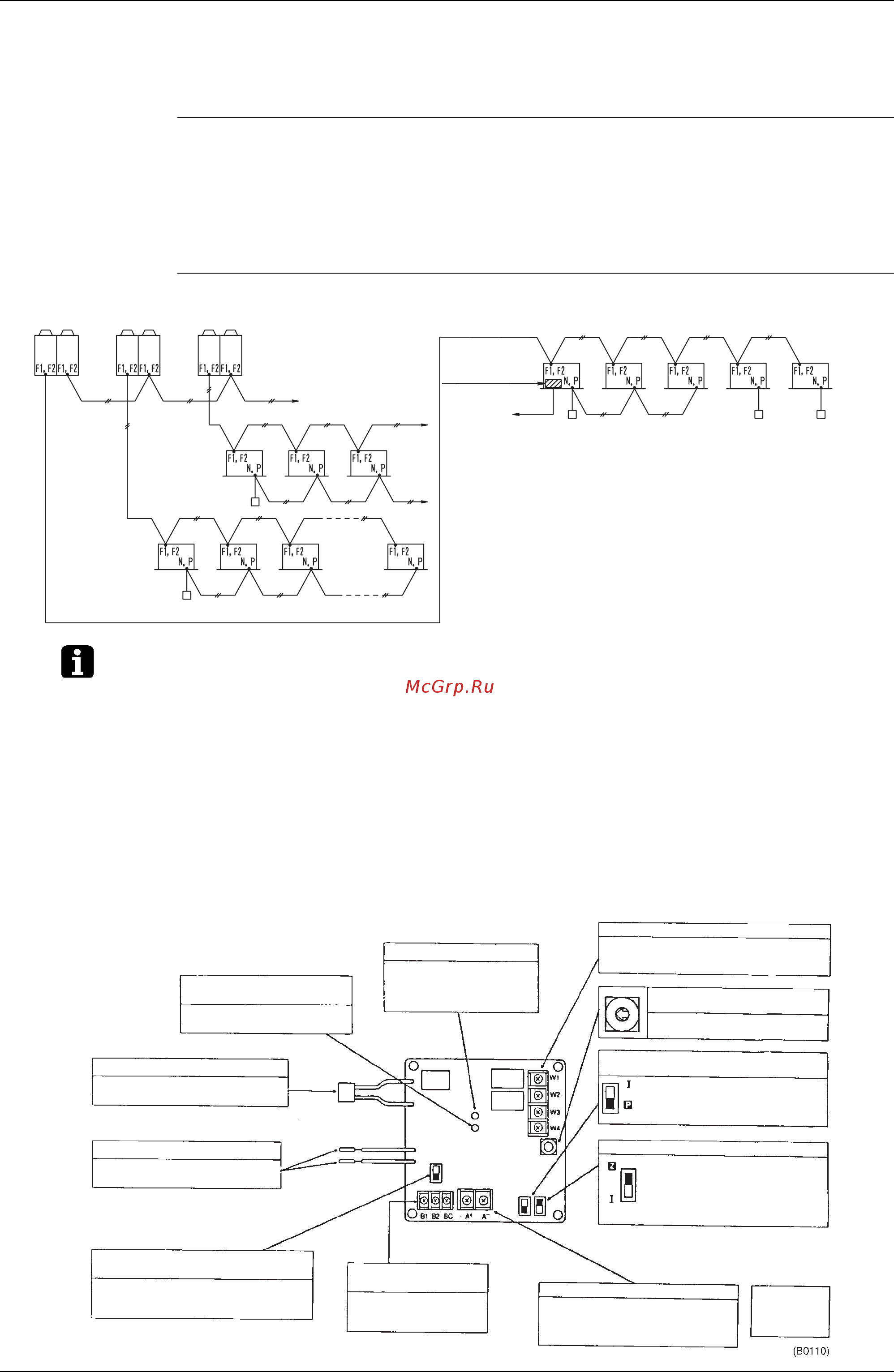

Overview of system
Notes 1. Shaded area: Represents the wiring adaptor for electrical appendices (1).
2. The wiring adaptor for electrical appendices (1) is used to "operate all indoor units
connected to the centralized control lines (i.e., terminals F1 and F2) under unified control". In
other words, the said indoor units are all operated under one and the same control via the
wiring adaptor for electrical appendices (1) from the centralized control monitor.
3. In order to operate the said indoor units under individual group control, use the wiring
adaptor for electrical appendices (2) (KRP4A51, 52, 53, 54). The wiring adaptor for electrical
appendices (1) is not available for this control.
5.2.1 Part Names and Functions
Outdoor unit
To outdoor unit
Indoor unit
Centralized
control monitor
Wiring adaptor for
electrical
appendices (1)
Microcomputer normal monitor
(HAP: GREEN)
Flickers when the microcomputer is
operating normally.
Display output terminal board (X2M)
Connects operation and error output to a remote
point (host computer monitor panel, etc.). (Normal
operation: W1, W2; Malfunction: W3, W4)
Tr ouble monitor (H10P: RED)
Lightsup when trouble occurs in
electrical wiring or parts.
Remote control is disabled.
(LED is out in normal operation.)
Control mode s
elector switch (R
S1)
(Factory set: 0)
For selecting how to operate the
system via remote.
Power supply connector (D1, D2)
To adapter power supply connector
(X1BA) on indoor unit
Transmission wiring (F1, F2)
To F1 and F2 on indoor unit terminal
board
Input changeover switch (SS1) (Factory set:
VOLT)
Set according to the type of input (voltage/
non-voltage) sent to remote control input
terminal board (X1M)
Remote control input
terminal board (X1M)
Connects control inp
ut from
remote (ho
st computer
monitor panel, timer, etc.).
Temperature setting input terminals (A
+
, A
-
)
Temperature setting is determined by a
resistance value between 0 and 135⍀.
NEVER apply voltage to this terminal for
any reason whatsoever.
For details,
see the wiring
diagram (rear
surface).
Temperature setting ON/OFF switch (SS2)
(Factory set: P)
To enable temperature setting with the
remote controller, set to “Inhibition”
.
To set temperature setting only by remote
control, set to “Permission”.
Display output switch (SS3) (Factory set: Z)
To display all control unitsasunified
zone, set to “Zone”.
(Factory set)
SS3
SS3
Note: Do not set to “Individual”. This
will cause asystem error (H10P
flashes.)
