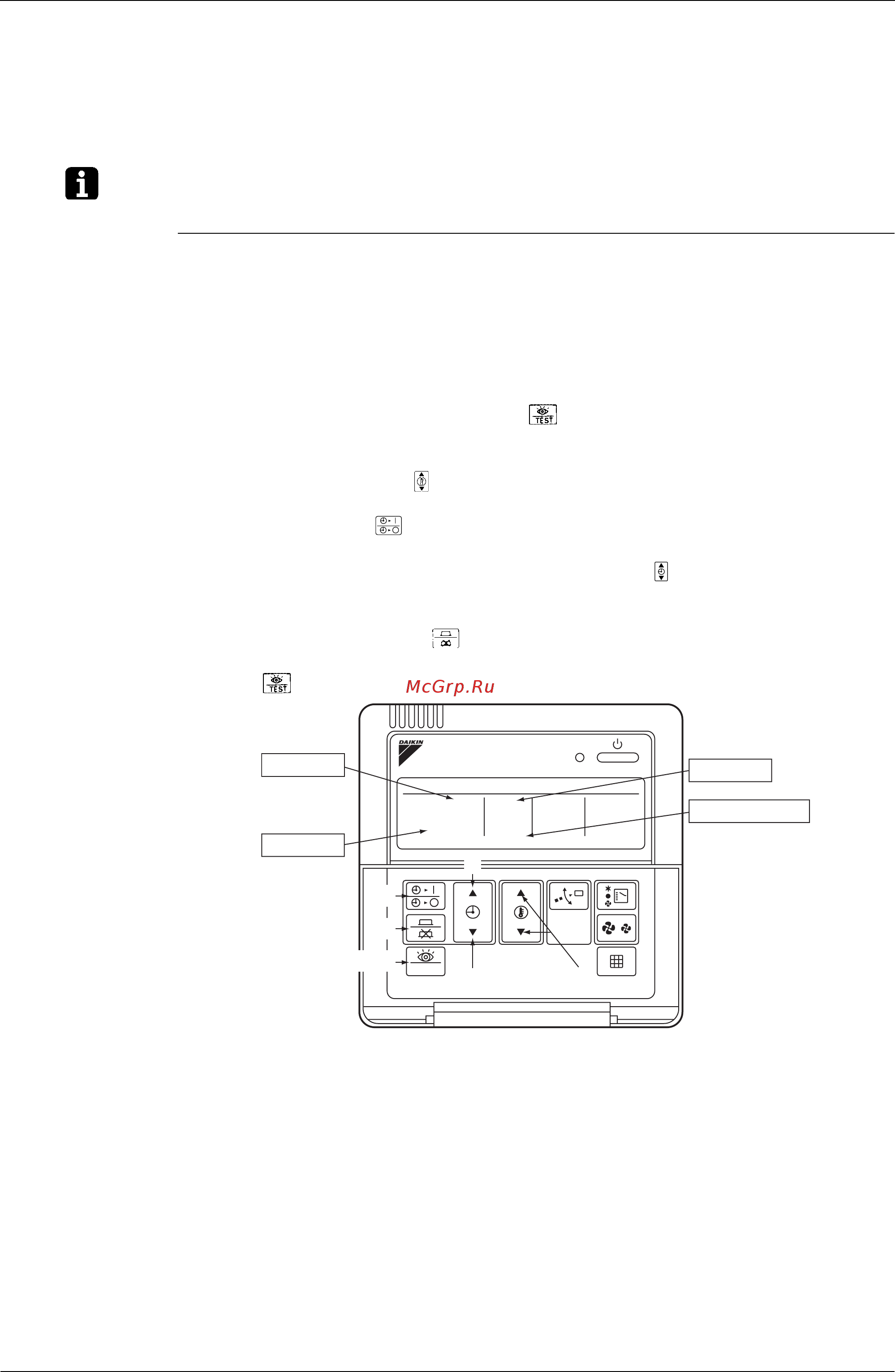

Field Settings from Remote Controller SiE30-408
48 Field Settings from Remote Controller
1.1.3 Settings of AirNet Address
For the setting of AirNet address of indoor unit, select mode No. using remote control and follow
the procedure below.
(Make settings by changing unit No. with no remote control equipped.)
The settings of AirNet address make it easy to check indoor unit by using service checker.
Note: Do not change the settings at AirNet maintenance clients due to pre-setting.
Procedure 1. Turn on the power supply.
Turn on the power supply of indoor unit (+ unit of rate control or checker). (Setting is
available only with turning on the power supply.)
Check installation and electric wiring again before turning on the power supply.
(In turning on the power supply after all LCDs are displayed, the operation is occasionally
not accepted displaying "88" for a period of about one minute.)
2. Put the system into setting mode.
While in normal mode, press and hold the button for a period of four seconds or more
to put the system into "Field Setting Mode".
3. Select mode No.
Select mode No. 03 using button.
4. Select unit No.
Select unit No. using button. (Unit No. 1-16)
5. Set AirNet address.
Select AirNet address using the upper and lower button of . (Settings with number in the
range from 1 to 128 is available.)
6. Determine group No.
Determine the content using button.
7. Return to normal mode.
Press button.
1-28
1
AIR CONDITIONER
UNIT No.
TEST
(VL042)
35
Mode No.
Field Set Mode
6
5
72
4
Group No.
Unit No.
03
SETTING
