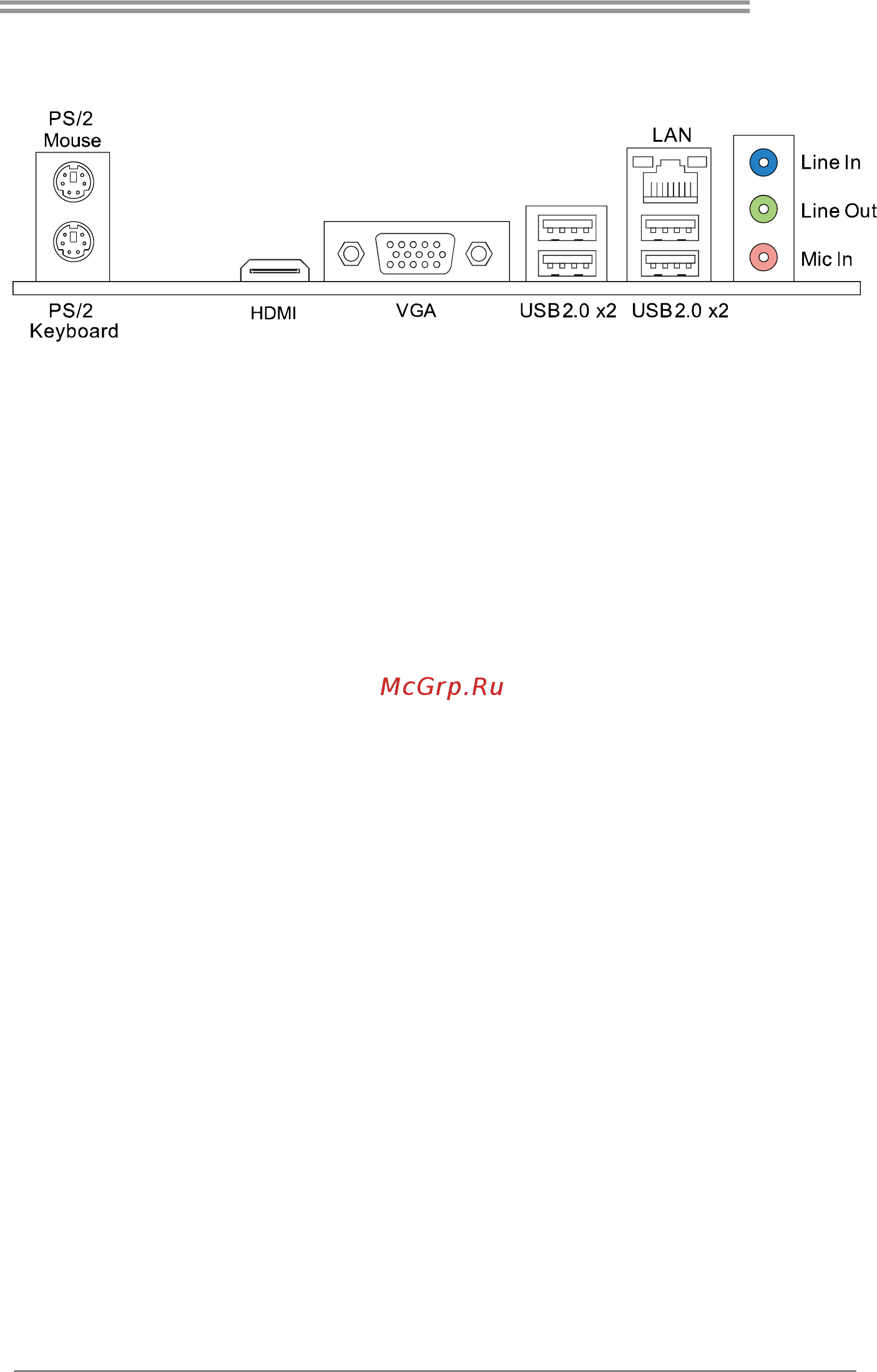

1.4 Rear Panel Connectors
Note1: HDMI & VGA ports only work with an Intel® integrated Graphics Processor.
Note2: The mainboard supports two independent display outputs.
Note3: Maximum resolution:
HDMI: 1920 x 1200 @60Hz, compliant with HDMI 1.4a
VGA: 1920 x 1200 @60Hz
Note4: The Line-In port does not support recording function and incoming audio will export
from Line-Out port directly.
