Hi-Fi A85X
19

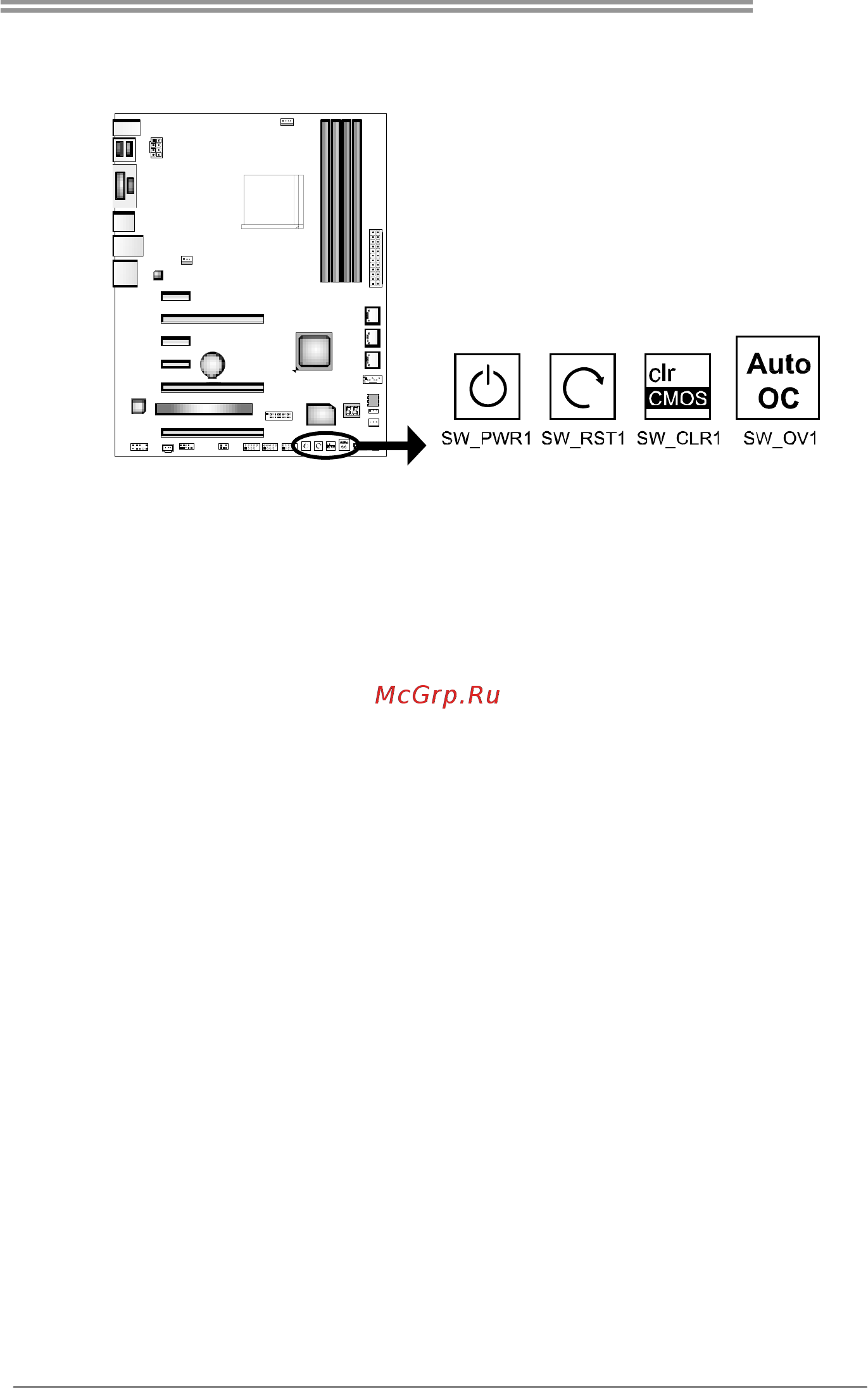

On-Board Buttons
There are 4 on-board buttons.
SW_PWR1:
This is an on-board Power Switch button.
SW_RST1:
This is an on-board Reset button. The led will blink when reading or writing to the HDDs.
SW_CLR1:
This is an on-board Clear CMOS button. Press the button 1~2 seconds to load the BIOS
defaults.
SW_OV1:
This is an on-board O.C. Switch button which is used for automatic overcolocking.
To Enable O.C.: Press the button once while the system is off. The button will be
locked and remain in a depressed position until it is pressed again. After reboot, the
CPU will be O.C. automatically to optimal performance value.
To Disable O.C.: Power off the system and press the button again. The button will be
released from the depressed position and the CPU configuration will go back to your
original settings.
