Hi-Fi A85X
3
Specifications
Form Factor ATX Form Factor, 305mm x 244 mm
OS Support
Windows XP / Vista / 7/ 8
Biostar reserves the right to add or remove support for any OS with or without notice.

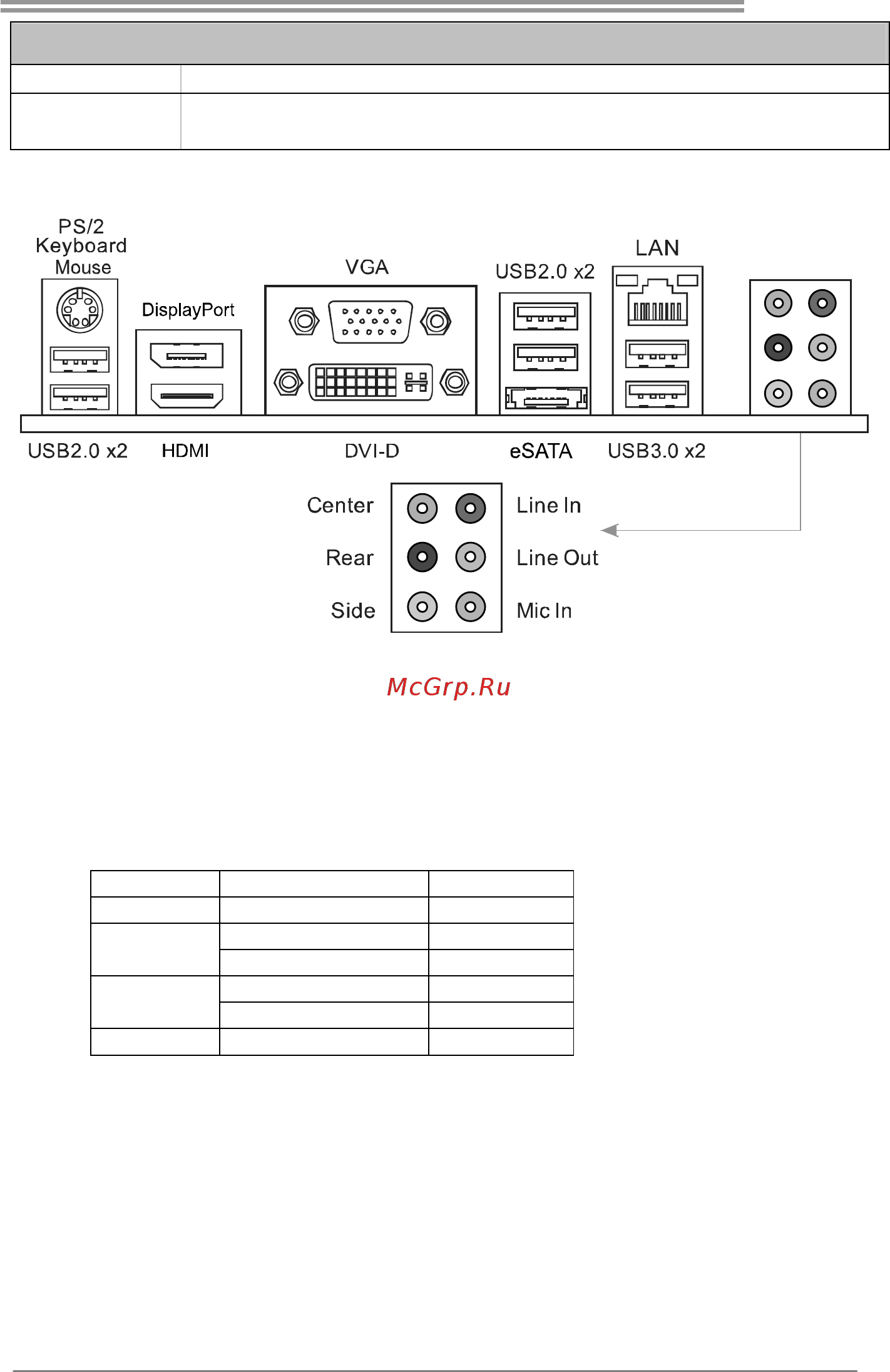

1.4 REAR PANEL CONNECTORS
Note 1: HDMI / DVI-D / VGA / DisplayPort output require an AMD family processor with intedrated
graphics.
Note 2: The mainboard supports three independent display outputs and the configurations can be
HDMI+DisplayPortP+DVI-D or HDMI+VGA+DVI-D
Note 3: Since the audio chip supports High Definition Audio Specification, the function of each
audio jack can be defined by software. The input / output function of each audio jack listed
above represents the default setting. However, when connecting external microphone to
the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.
Note 4: Maximum resolution:
Outputs Maximum resolution Bit Depth
DispalyPort 4096 x 2160 @30Hz 18, 24, 30 bpp
1920 x 1080 @60Hz 24, 30, 36 bpp
HDMI
1920 x 1200 @60Hz 24 bpp
1920 x 1200 @60Hz 30 bpp
DVI-D
2560 x 1600 @60Hz 24 bpp
VGA 1920 x 1600 @60Hz --
