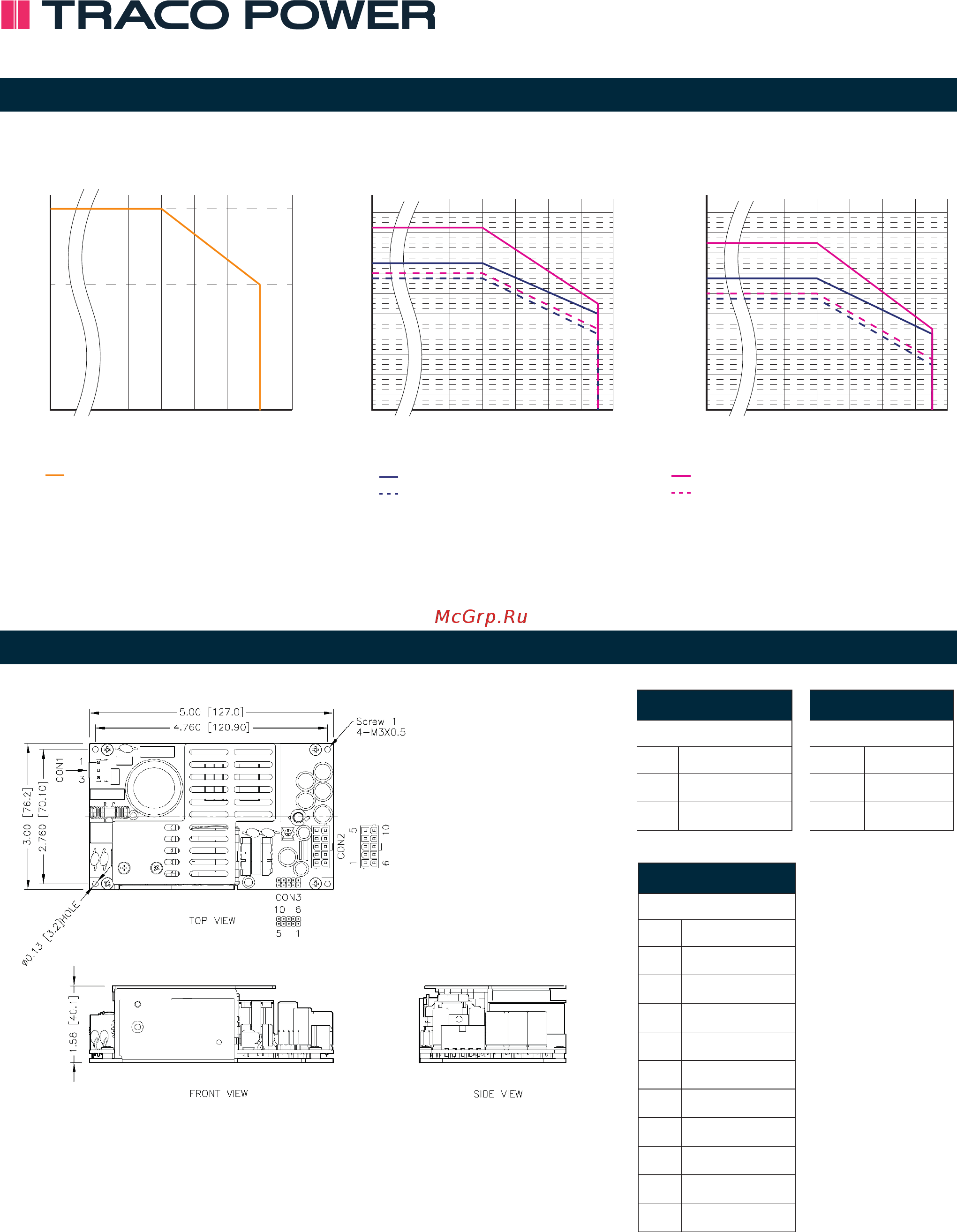

TPP 450A Series, 450 Watt
www.tracopower.com Page 4 of 5
All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
Thermal Considerations
Dimensions in inch, [
] = mm
Outside dimension tolerance: ±0.02 Inch [±0.5 mm]
Hole spacing tolerance: ±0.01 Inch [±0.25 mm]
Weight: 462 g (16.29 oz)
CON 1:
Molex housing:
09-50-8031
Molex crimp terminals:
2478,6838,45570
CON 2:
Molex housing:
39-01-2105
Molex crimp terminals:
5556,45750
CON 3:
Molex housing:
90143-0010
Molex crimp terminals:
9 0119
Dimension
40 50 80
450
0
Output Power [W]
Ambient Te mperature [°C]
-40
5040 60 80
Output Power [W]
Ambient Te mperature [°C]
-40
140
100
12 &15 Vout models at input voltage 230 VAC
other output models at input voltage 230 VAC
all models at input voltage 115 or 230 VAC
270
60 70
180
220
260
300
340
380
70 85
60
5040 60 80
Output Power [W]
Ambient Te mperature [°C]
-40
140
100
180
220
260
300
340
380
70 85
60
12 &15 Vout models at input voltage 115 VAC
other output models at input voltage 115 VAC
Forced air cooling of 21 CFM (external fan)
Mounted to a thermal conducting
metal plate or chassis (480x248x12 mm)
Natural convection
The units are optionally available with casing and internal fan to meet the considerations for forced air cooling (see TPP 450 Series).
The thermal considerations refer to the test setup (horizontal mounting) for certification.
Temperature reference positions for to determine the effective temperature limits in the application will be advised.
Auxiliary
CON 3
Pin Function
1 +Fan
2 +Sense
3 +Remote
4 PG
5 +Standby
6 –Fan
7 –Sense
8 –Remote
9 No Pin
10 –Standby
Input
CON 1
Pin Function
1
AC (L)
3
AC (N)
Output
CON 2
Pin Function
1-5
+Vout
6-10
–Vout
