2. Installation

This section describes the functionalities of FGSW-2620 components

and guides how to install it on the desktop or shelf. Basic knowledge

of networking is assumed. Please read this chapter completely before

continuing.

2.1 Product Description

The PLANET FGSW-2620 provides 24 10/100Mbps Fast Ethernet ports

with 2 10/100/1000Mbps ports (port 25/26). The two Gigabit ports can

be 1000Base-T for 10/100/1000Mbps; the distance can be extended

from 100 meters (TP). The Switch with non-blocking backplane

and simplies the task of upgrading your LAN to cater for increased

bandwidth demand.

2.1.1 Product Overview

PLANET FGSW-2620 is Ethernet Switch with 24 RJ-45 10/100Mbps

ports. The Switch also provides up to two 10/100/1000Mbps ports for

cost effective high-performance network connectivity. With its 8.8Gbps

non-blocking switch fabric, the Switch can also provide a local, high

bandwidth, Fast Ethernet network for your departmental backbone.

This Switch also supports store-and-forward forwarding scheme to

ensure low latency and high data integrity, eliminates unnecessary

trafc and relieves congestion on critical network paths. With an

intelligent address recognition algorithm, Switch could recognize up to

8K different MAC address and enables ltering and forwarding at full

wire speed.

2.1.2 FGSW-2620 Front Panel

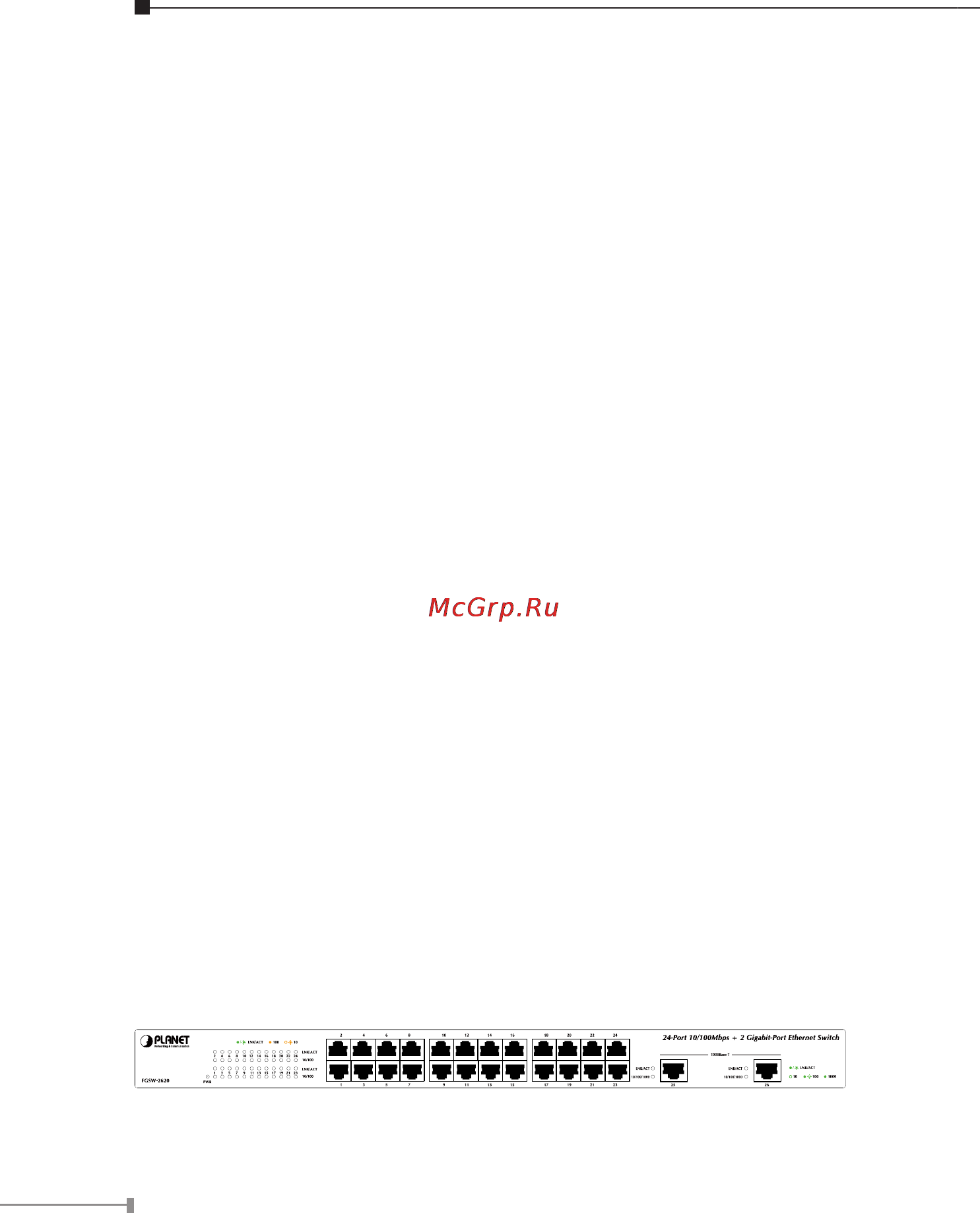

Figure 2-1 shows front panel of FGSW-2620.

Figure 2-1 FGSW-2620 Front Panel
