10 | Chapter 2: Hardware Installaon

2.3 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector

may be dierent according to the fan manufacturer.

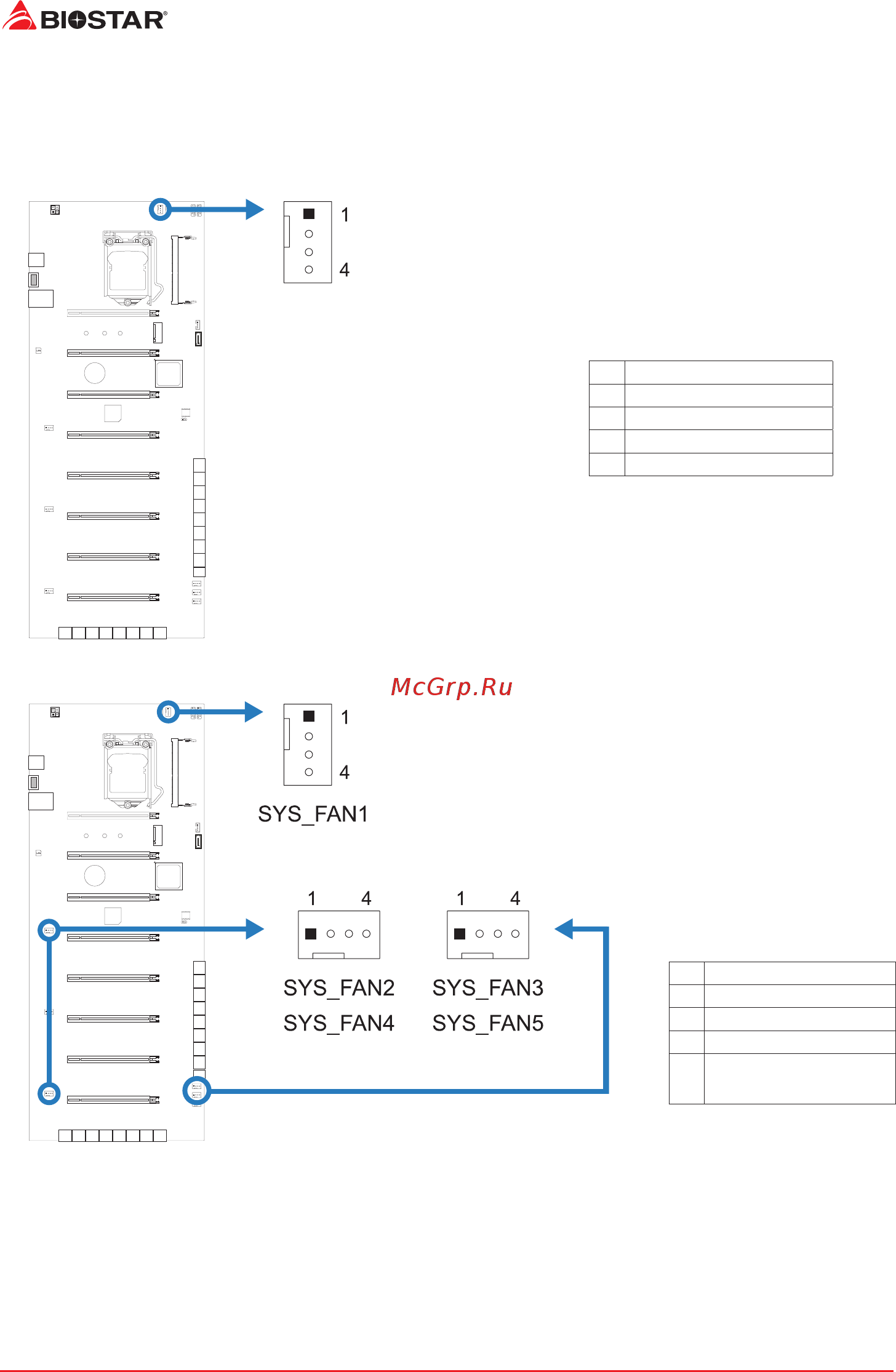

CPU_FAN1: CPU Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN1_Tach

4 FAN1_Ctl

SYS_FAN1/ SYS_FAN2/ SYS_FAN3/ SYS_FAN4/ SYS_FAN5: System Fan Header

Pin Assignment

1 Ground

2 +12V

3 Monitoring_Tach

4 Fan Control
