3. Wiring the Power Inputs

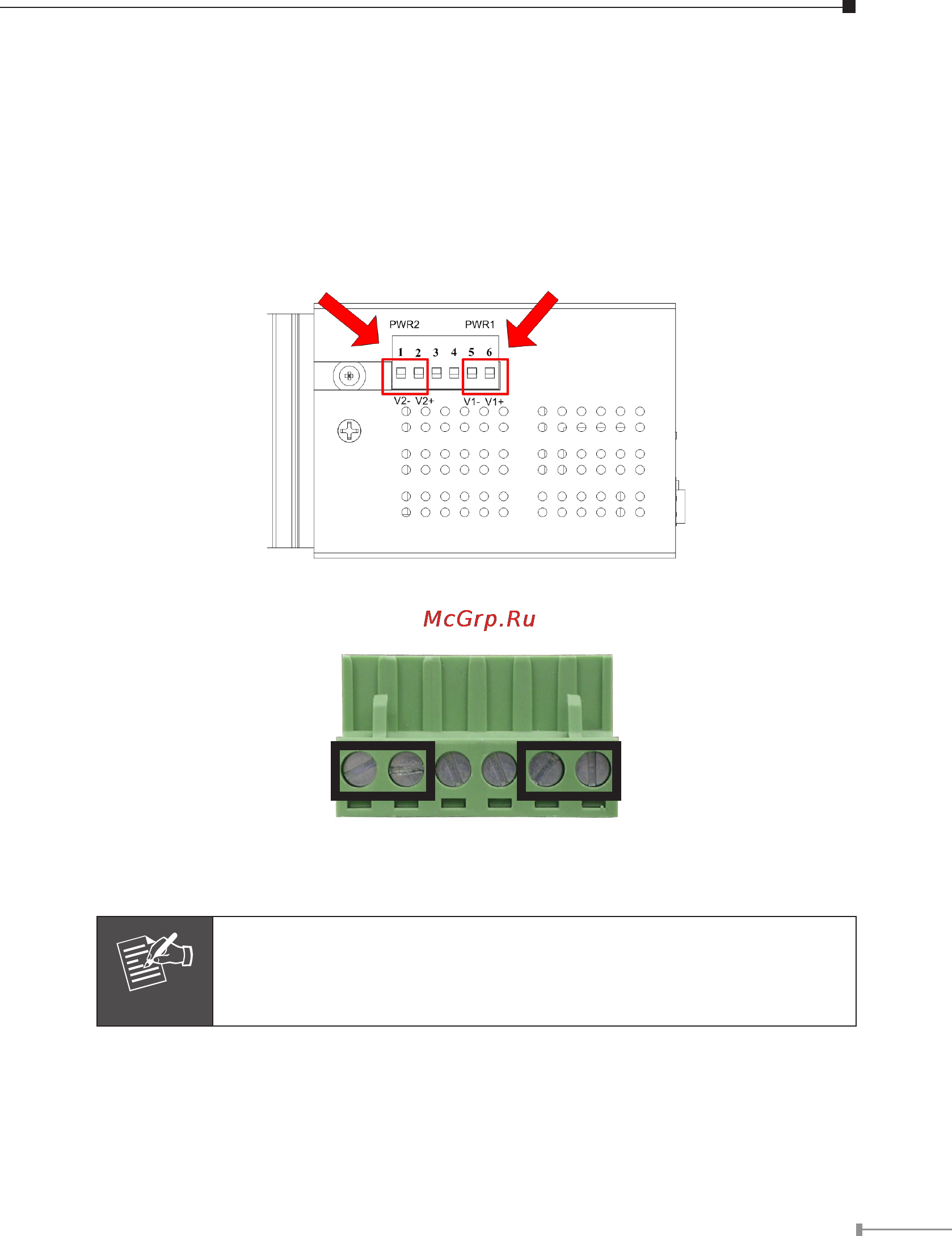

The 6-contact terminal block connector on the top panel of Managed Industrial

Switch is used for two DC redundant powers input. Please follow the steps below

to insert the power wire.

1. Insert positive / negative DC power wires into the contacts 1 and 2 for POWER

2, or 5 and 6 for POWER 1.

2. Tighten the wire-clamp screws for preventing the wires from loosing.

1 2 3 4 5 6

Power 2 Power 1

- + - +

Note

The wire gauge for the terminal block should be in the range

between 12 ~ 24 AWG.
