4. Terminal Setup

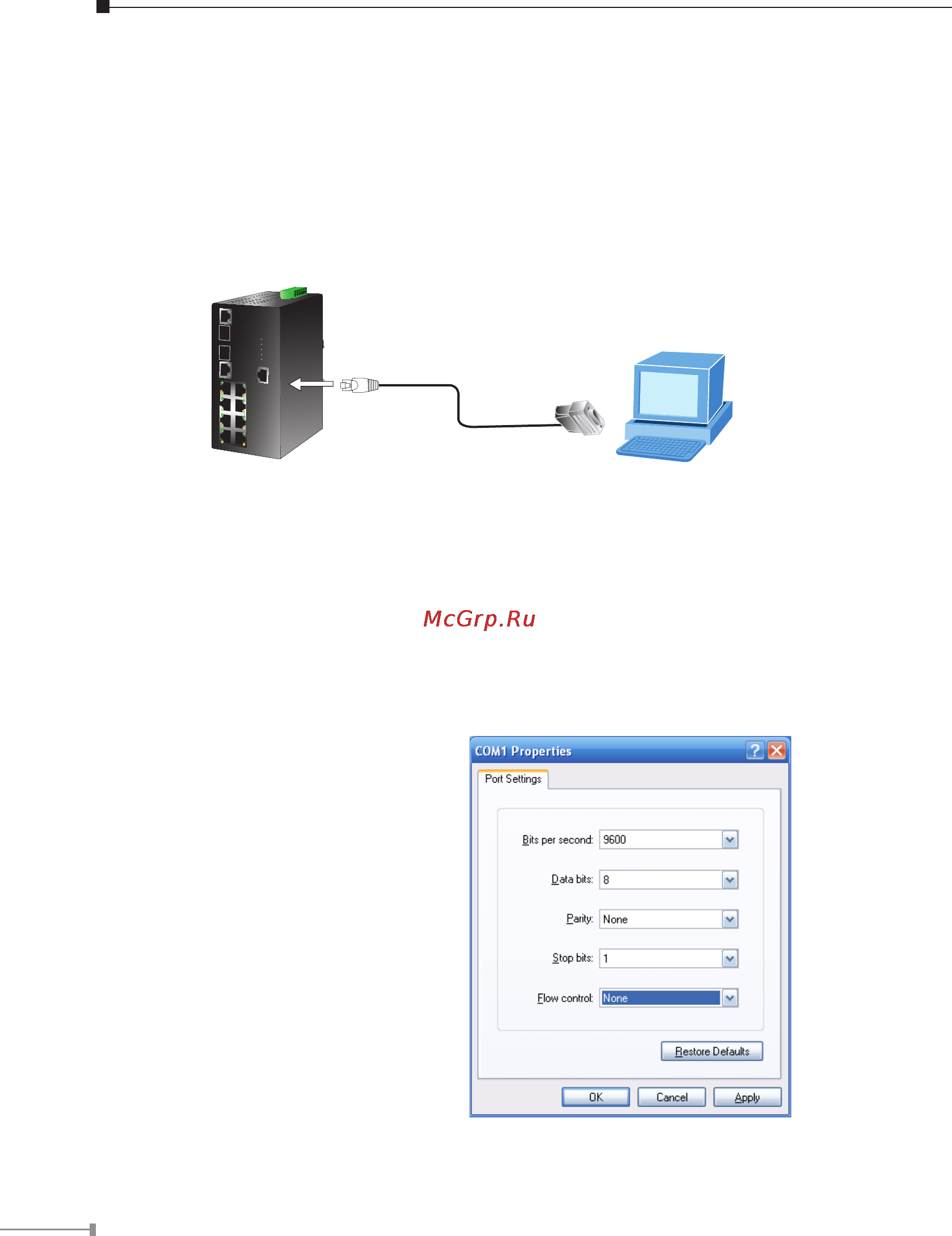

To congure the system, connect a serial cable to a COM port on a PC or notebook

computer and to RJ-45 type serial (console) port of the Managed Industrial Switch.

The console port of the Managed Industrial Switch is DCE already, so that you can

connect the console port directly through PC without the need of Null Modem.

PC / Workstation

with

Terminal emulation software

ISW Industrial Managed Switch

RJ-45 Type Serial Port

9600,8,n,1

RJ-45 to DB9 Rs-232

Cable

Serial Port

A terminal program is required to make the software connection to the ISW

Managed Industrial Switch. Windows’ Hyper Terminal program may be a good

choice. The Hyper Terminal can be accessed from the Start menu.

1. Click

START, then Programs, Accessories and then Hyper Terminal.

2. When the following screen appears, make sure that the COM port should be

congured as:

Baud: 9600

Parity: None

Data bits: 8

Stop bits: 1

Flow Control: None
