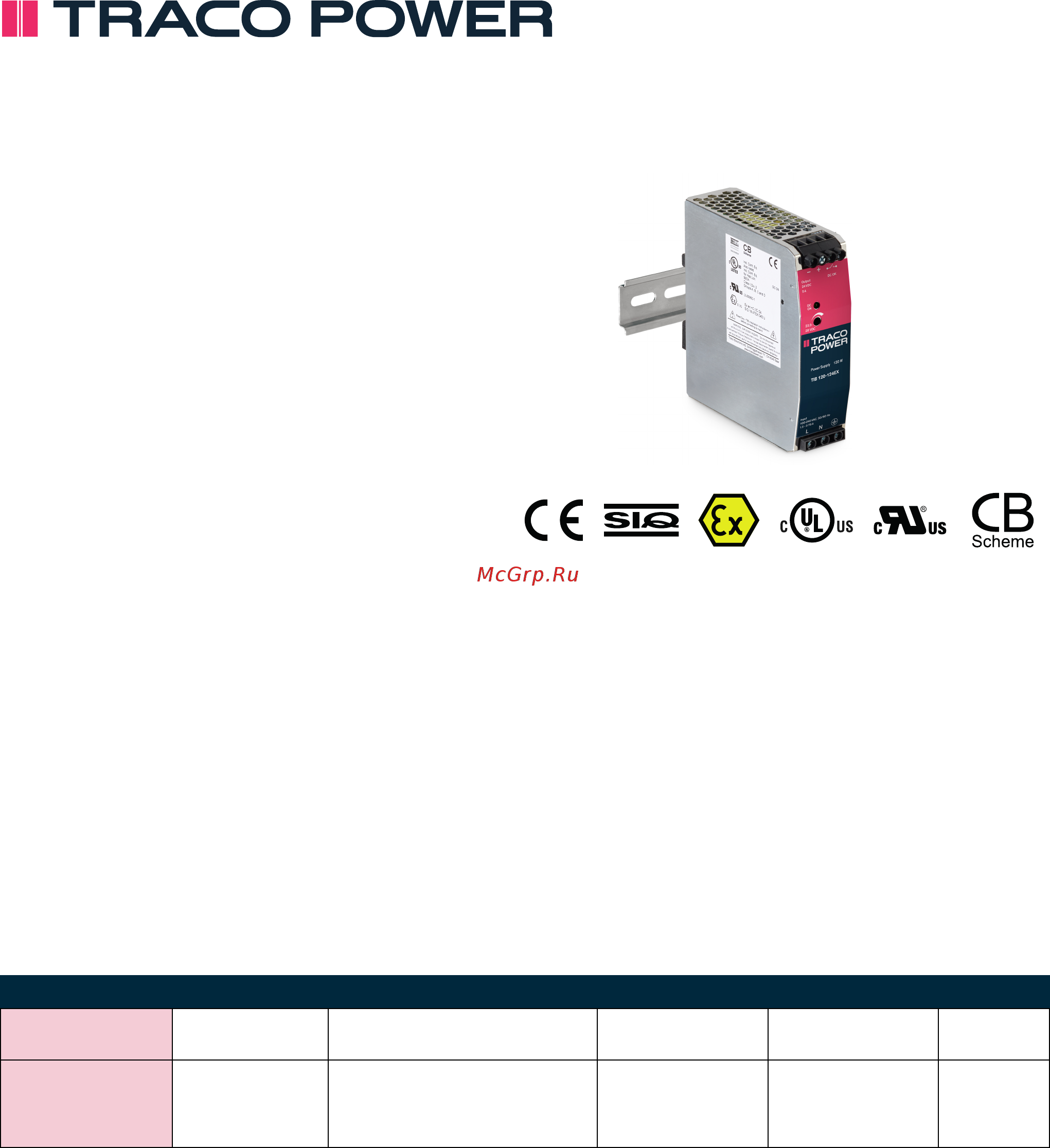

TRACO POWER TIB 120-112EX Datasheet онлайн
AC/DC Industrial Power Supply
TIB 120-EX Series, 120 Watt
•
UL Hazloc Class I, division 2 approval
and ATEX certification
•
SEMI F47 compliant for voltage sag
immunity
•
Rugged metal case with optional
side-mounting
•
Back power immunity
•
150% peak current for 4 s
•
Operating Temp –40°C to +70°C (full
load up to 60°C)
•
Adjustable output voltage
•
High Reliability: MTBF 1 mill hrs per IEC
61709
•
Short circuit and overload protection
•
5 year product warranty
IEC 60950-1
UL 60950-1
UL 508
The TIB 120-EX family of next generation of 120 Watt din rail power supplies
feature high efficiency operation of up to 94% enabling a slim design with al-
ternative side-mounting for flat panels (DC OK Indicator on both front and side
panel). These products certified to UL Hazloc Class 1 / Div 2, and ATEX (EN
60079-0, EN 60079-7. EN 600079-15) for operation in hazardous locations.
These convection cooled power supplies have a -40°C to +60°C full load oper-
ating temperature range. 150% peak power for up to 4 seconds which is ideal
for stepper motors, solenoids or actuators. The TIB 120-EX series has an im-
portant Back Power Immunity feature that helps protect against shut-down or
malfunction with loads such as inductors and decelerating motors that can feed
voltage back to the power supply. Outputs are radio-interference-suppressed to
impede radiation at long output lines which reduces the common mode current
to within limits of telecommunication ports. The series operate with a high pow-
er factor of up to 99% which also minimizes inrush current. Additional qualifi-
cations include IEC/EN/UL 60950-1, UL 508 and CB Report with EMC compli-
ance to IEC/EN 61000-6-2 and IEC/EN 61000-6-3.
Models
Order Code
Output Power
max.
Output Voltage
nom. (adjustable)
Output Current
max.
Output Current
peak
Efficiency
typ.
TIB 120-112EX
120 W
12 VDC (11.8 - 15.0 VDC)
10'000 mA
15'000 mA
94 %
TIB 120-124EX
24 VDC (23.5 - 28.0 VDC)
5'000 mA
7'500 mA
94 %
TIB 120-148EX
48 VDC (47.0 - 56.0 VDC)
2'500 mA
3'750 mA
94 %
www.tracopower.com
April 9, 2019
Page 1 / 6
