H61MGB/H61MLB/H61MHB
3
H61MGB / H61MLB H61MHB
Connector
s
Front Panel Connector x1 Front Panel Connector x1
Front Audio Connector x1 Front Audio Connector x1
CPU Fan Header x1 CPU Fan Header x1
System Fan Header x1 System Fan Header x1
Clear CMOS Header x1 Clear CMOS Header x1
USB 2.0 Connector x2 USB 2.0 Connector x2
Power Connector (24pin) x1 Power Connector (24pin) x1
Connectors
Power Connector (4pin) x1 Power Connector (4pin) x1
Back Panel
I/O
PS/2 Keyboard / Mouse x1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB2.0 Port x4
Audio Jack x3
PS/2 Keyboard / Mouse x1
HDMI Port x1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB2.0 Port x4
Audio Jack x3
Board Size
190 (W) x 244 (L) mm 190 (W) x 244 (L) mm
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS with or without notice
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS with or without notice

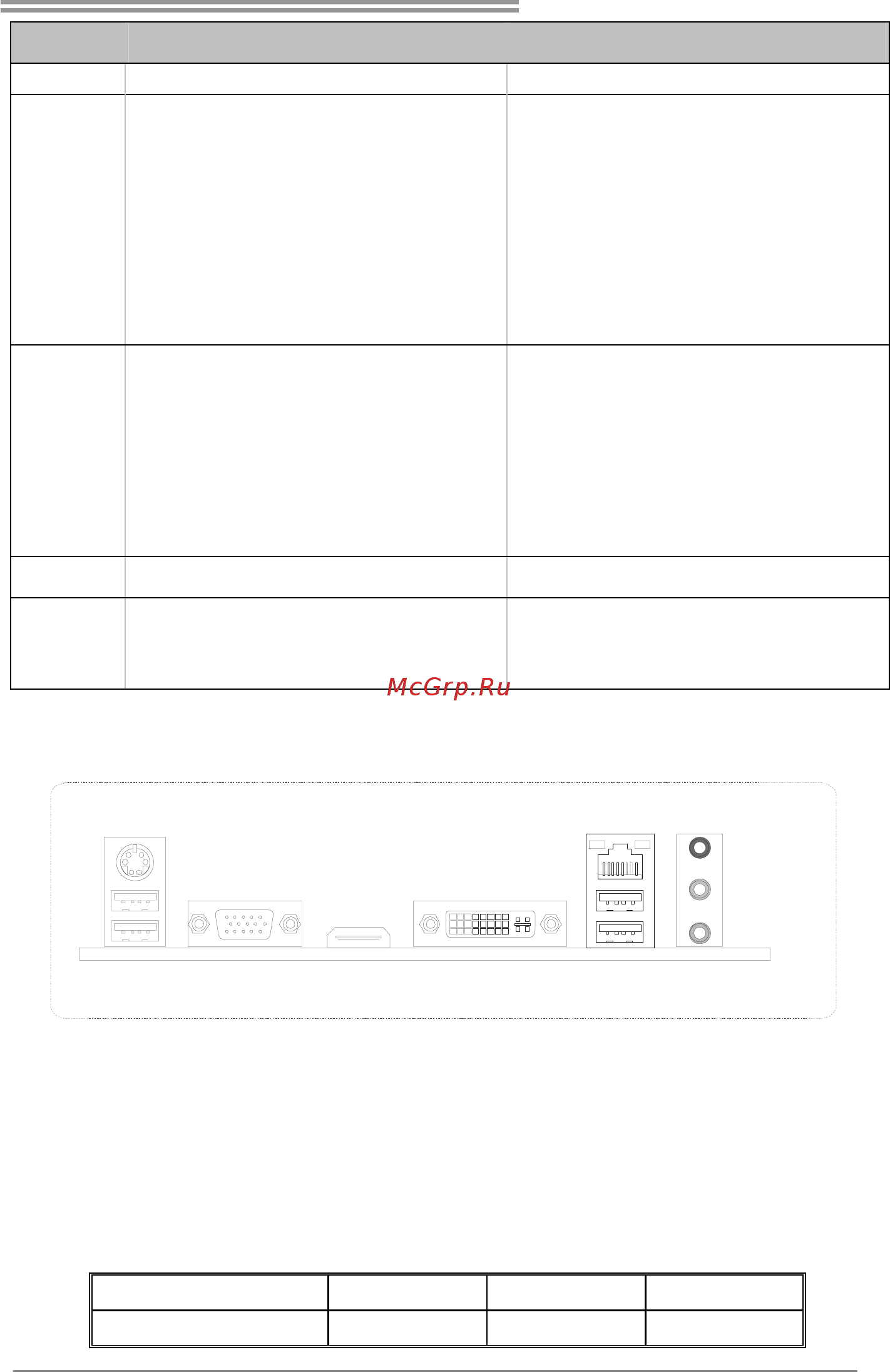

1.4 REAR PANEL CONNECTORS
USB2.0X2
LAN
HDMIVGA DVI-D
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
PS/2
Keyboard / Mouse
USB2.0X2
(H6MHB)
NOTE: HDMI / DVI-D / VGA Output require an Intel Core family processor with Intel Graphics
Technology.
NOTE: Maximum resolution:
HDMI: 1920 x 1200 @60Hz (H61MHB)
DVI: 1920 x 1200 @60Hz
VGA: 2048 x 1536 @75Hz
NOTE: H61MHB supports Multiple VGA output, and the configuration is as below:
(HDMI is not supported under DOS and BIOS setup.)
Display Devices
VGA + HDMI
VGA + DVI-D HDMI + DVI-D
Enabled O O O
