Planet WAP-4033PE [11/38] Chapter 3 web configuration

Chapter 3 Web Configuration

Web configuration provides a user-friendly graphical user interface (web pages) to manage your

WAP-4033PE. An AP with an assigned IP address (e.g. http://192.168.0.1) will allow you to monitor and

configure (via web browser e.g., MS Internet Explorer or Netscape).

1. Open your web browser.

2. Enter WAP-4033PE IP address (default IP address is http://192.168.0.1) into the address field of the

web browser. Please also make sure your PC’s IP address is in the same IP range with WAP-4033PE.

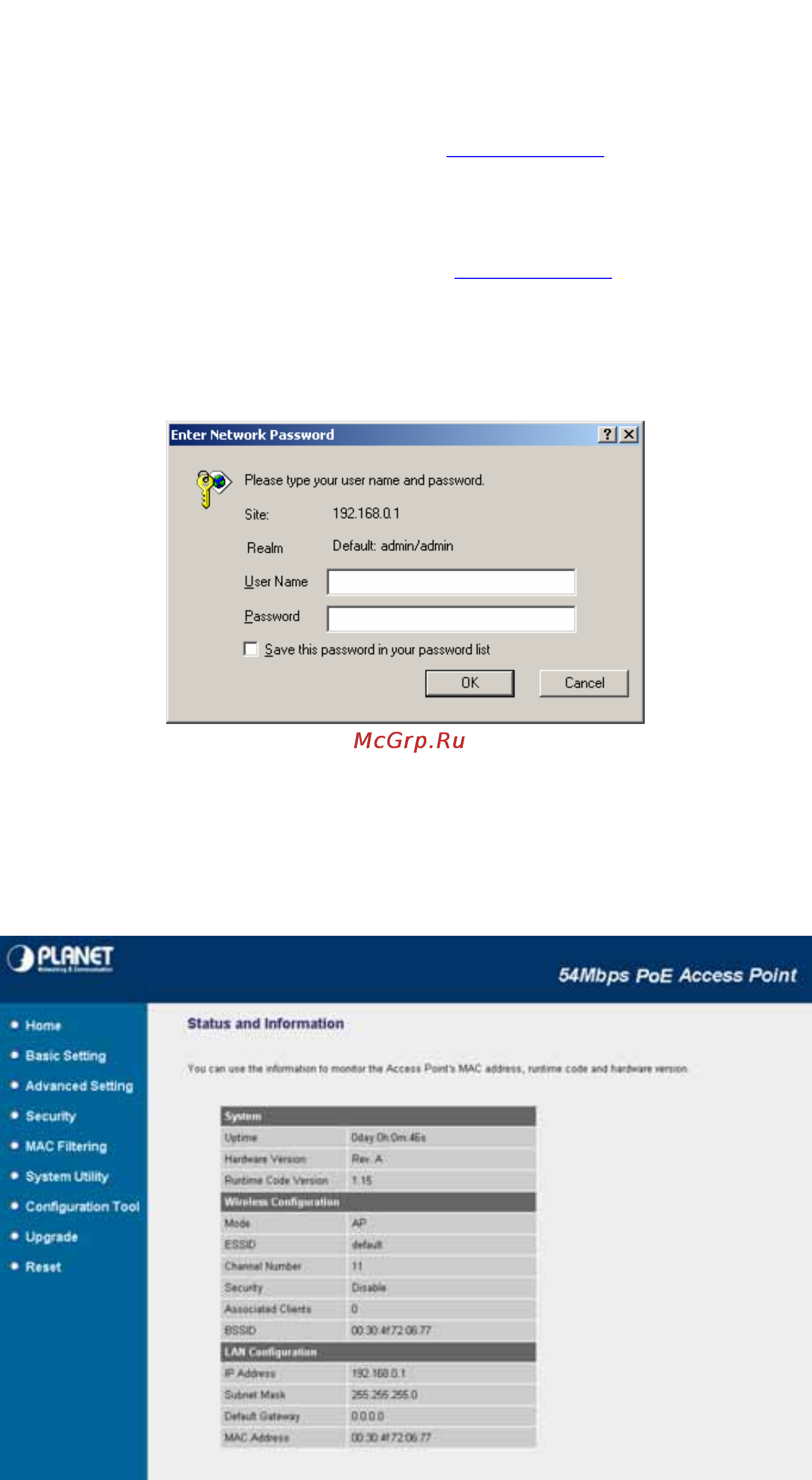

3. A User Name and Password dialog box will appear. Please enter your User Name and Password here.

Default User Name and Password are “admin”. Click “OK”.

4. When enter correct User Name and Password, you will see the configuration screen as section 3.1.

3.1 Home

In this screen, you can check all the information of WAP-4033PE.
