TP45D2-A7/TP43D2-A7
3
TP45D2- A7 TP43D2- A7
PCI slot x3 PCI slot x3
PCI Express Gen2 x 16 slot x1 PCI Express Gen2 x 16 slot x1
Slots
PCI Express x 1 slot x2 PCI Express x 1 slot x2
Floppy connector x1 Floppy connector x1
Printer Port Connector x1 Printer Port Connector x1
Serial port Connector x1 Serial port Connector x1
IDE Conn ector x1 IDE Conn ector x1
SATA Connector x6 SATA Connector x6
Front Panel Connector x1 Front Panel Connector x1
Front Audio Connector x1 Front Audio Connector x1
CD-in Connector x1 CD-in Connector x1
CPU Fan header x1 CPU Fan header x1
System Fan header x2 System Fan header x2
Clear CMOS header x1 Clear CMOS header x1
USB connector x3 USB connector x3
Power Connector (24pin) x1 Power Connector (24pin) x1
On Board
Connector
Power Connector (4pin) x2 Power Connector (4pin) x2
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
LAN port x1
USB Port x6
Audio Jack x3
PS/2 Keyboard x1
PS/2 Mouse x1
LAN port x1
USB Port x6
Audio Jack x3
Board Size 220 (W) x 305 (L) mm 220 (W) x 305 (L) mm
OS Support
Windows 2000 / XP / VISTA
Biostar Reserves the right to add or remove
support for any OS with or without notice
Windows 2000 / XP / VISTA
Biostar Reserves the right to add or remove
support for any OS with or without notice

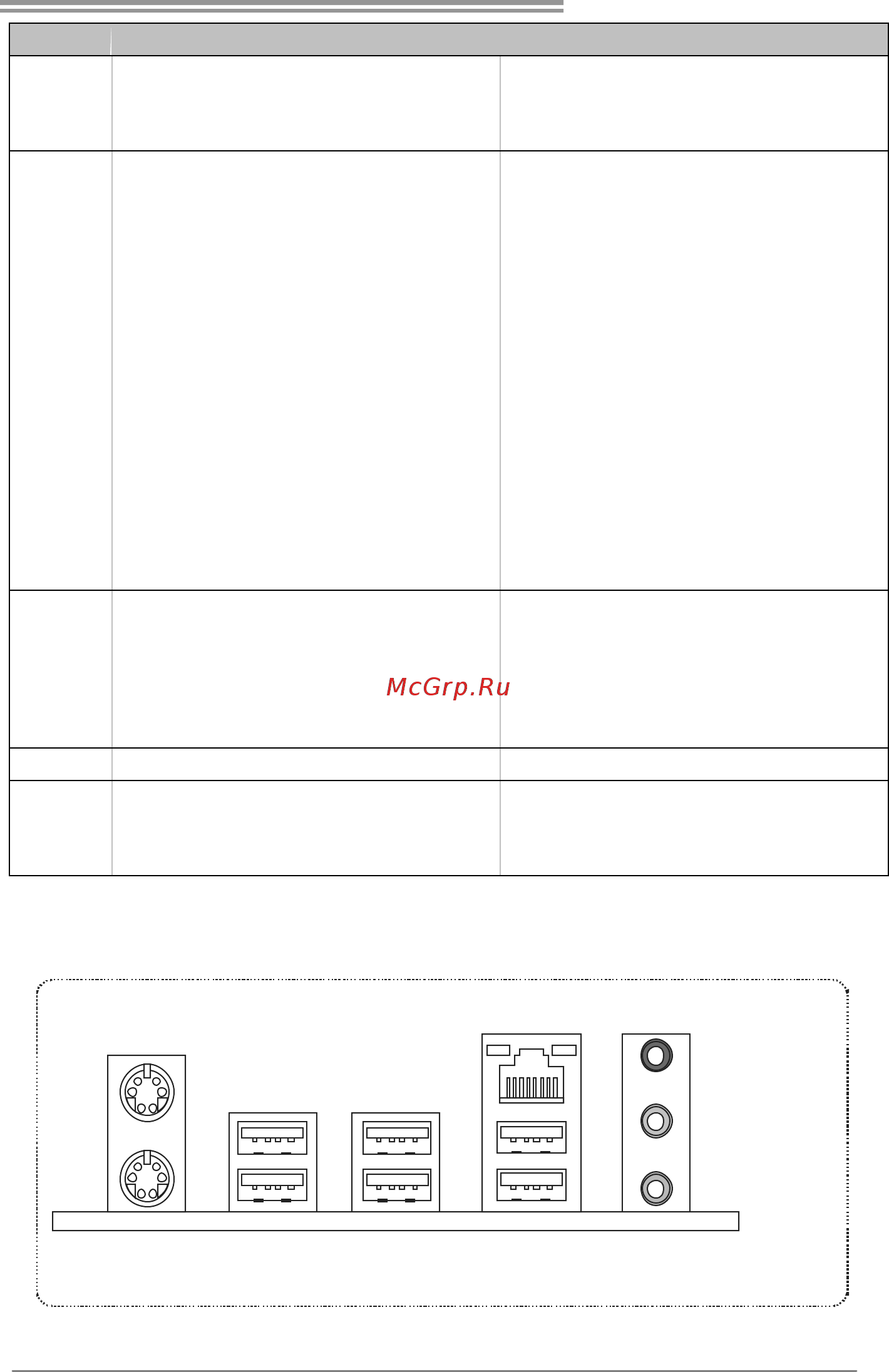

1.4 REAR PANEL CONNECTORS
PS/2
Mouse
PS/2
Keyboard
USBX2 USBX2
LAN
USBX2
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
