Chapter 6

INSTALLING THE CONVERTER

Please follow these steps to install the converter:

• Turn off the power of the device/station in a network to

which the GT-70X will be attached.

• Ensure that there is no activity in the network.

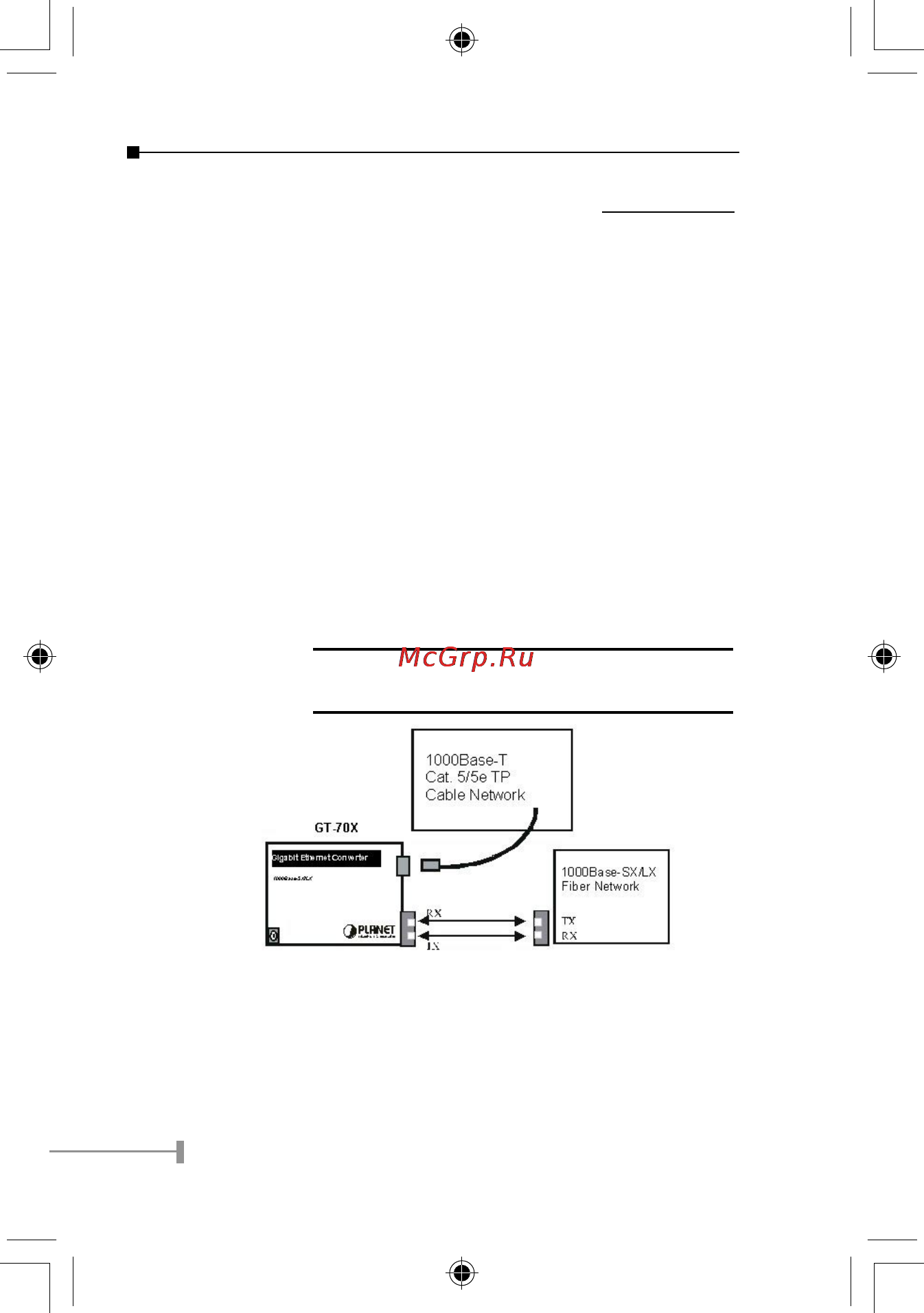

• Attach fiber cable from the GT-70X to the fiber network.

TX, RX must be paired at both ends.

• Connect the 5VDC power adapter to the GT-70X and

verify that the Power LED lights up.

• Turn on the power of the device/station; the PWR LEDs

should light when all cables are attached.

 Notice:

Please refers to section 9 for detailed wiring

information of the GT-70X.

To prevent from optic acceptor malfunction, check the both wires

/ transmitter before power on the converter.
