Biostar G31-M7 TE Версия 6.7/6.8 [10/47] A ddr2 module

Motherboard Manual

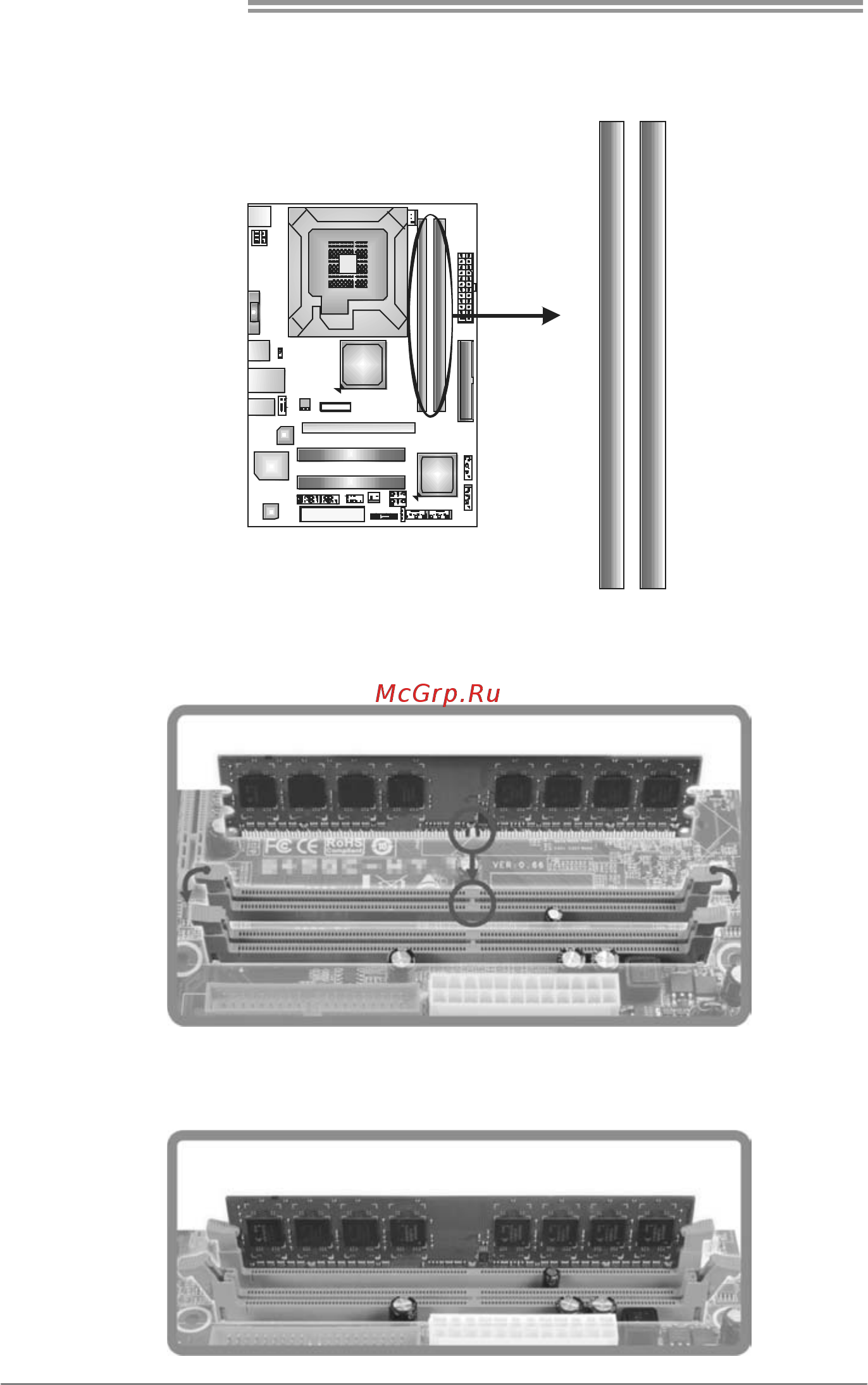

2.3 INSTALLING SYSTEM MEMORY

A. DDR2 module

DDR2_B 1

DDR2_A 1

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a

DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining

chip snap back in place and the DIMM is properly seated.
