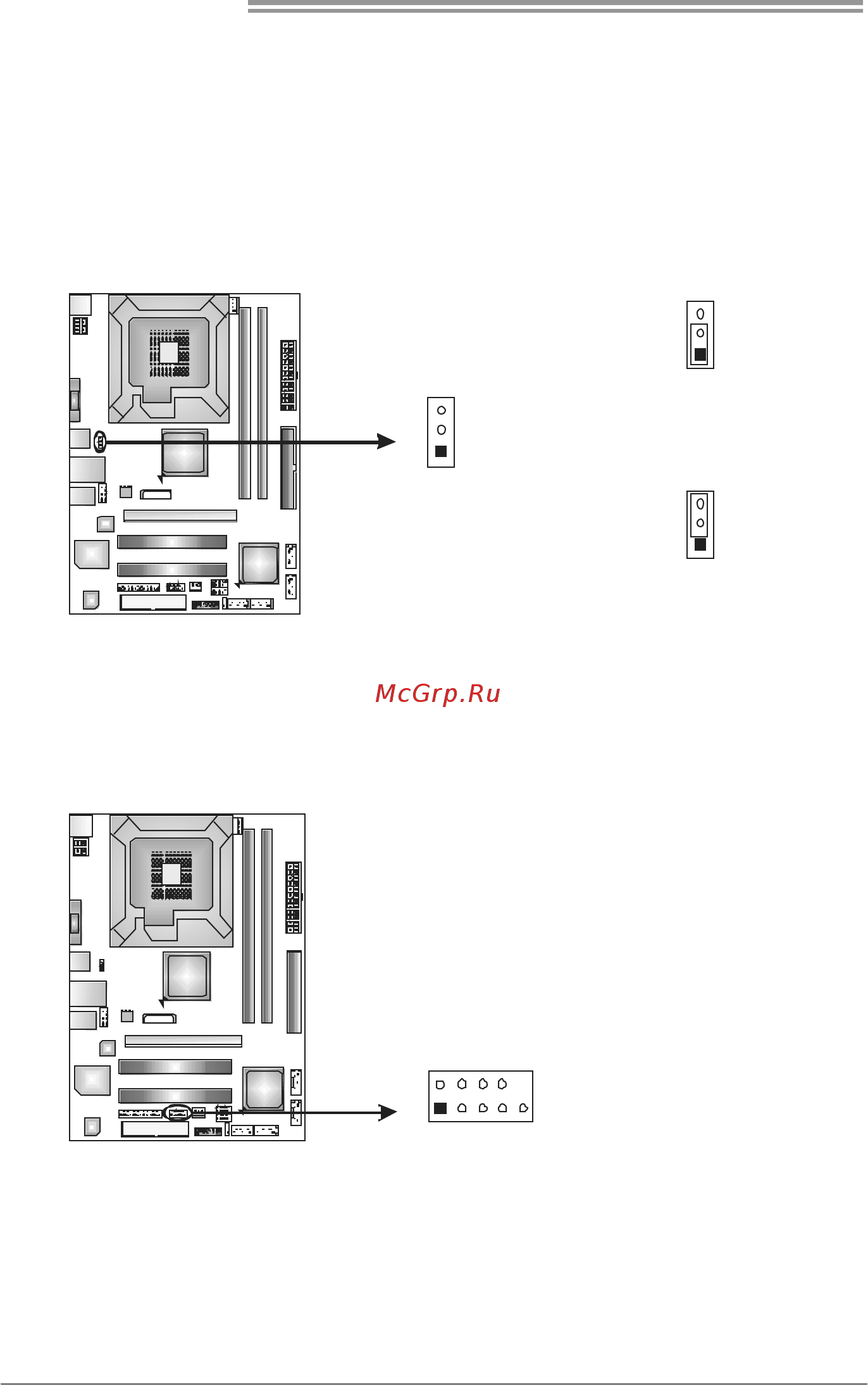

JUSBV1: Power Source Header for USB Ports

Pin 1-2 Close:

+5V for USB ports at JUSB2/JRJ45USB1.

Pin 2-3 Close:

+5V STB for USB ports at JUSB2/JRJ45USB1.

Pin 1-2 close

Pin 2-3 close

JCOM2: Serial port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key
