J1800NH3/J1900NH3/J2900NH3

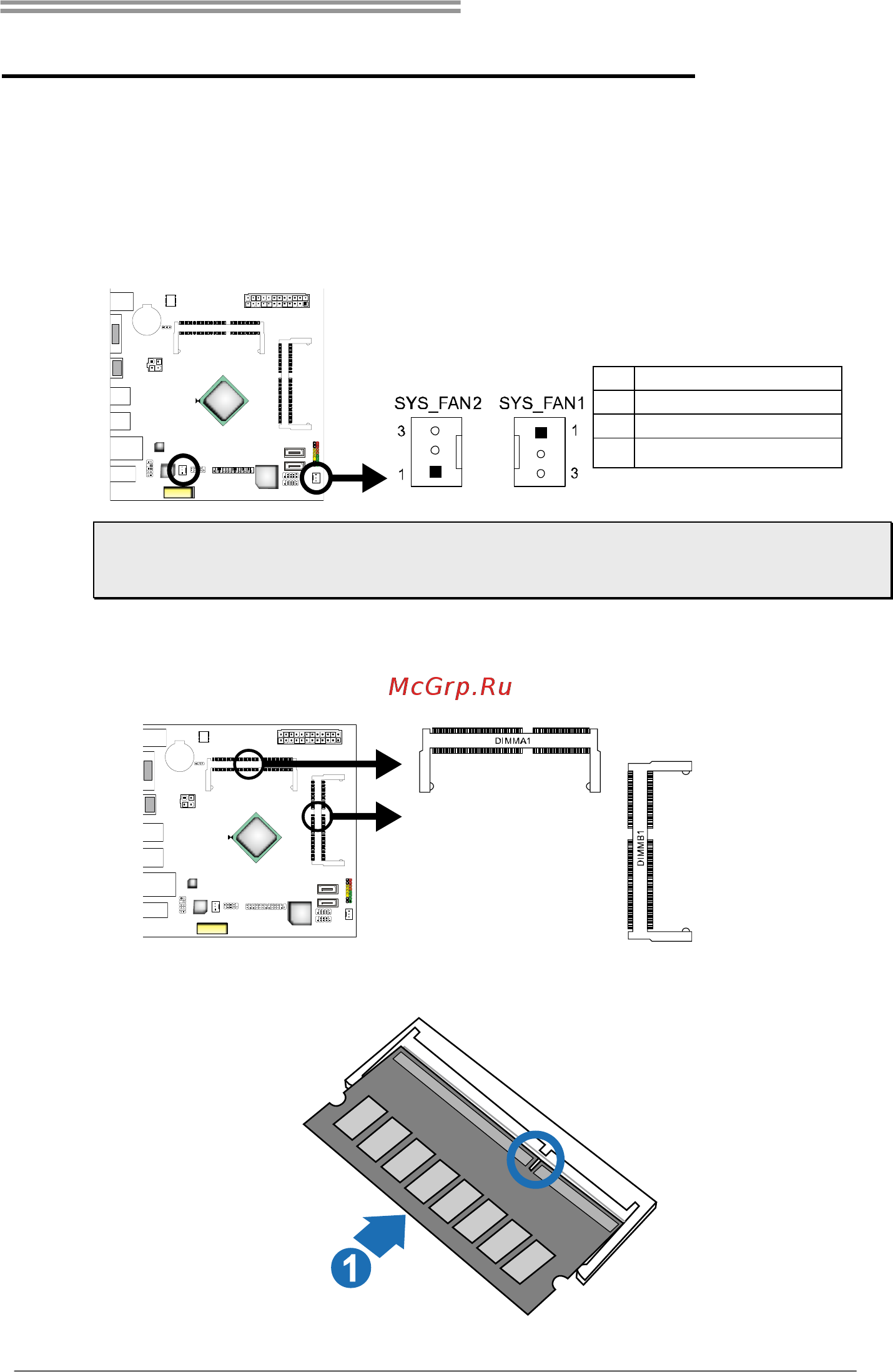

CHAPTER 2: HARDWARE INSTALLATION

2.1 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and

connector may be different according to the fan manufacturer. Connect the fan

cable to the connector while matching the black wire to pin#1.

SYS_FAN1/2: System Fan Header

Pin Assignment

1 Ground

2 +12V

FAN RPM rate sense

Note: When connecting with wires onto connectors, please note that the red wire is the

positive and should be connected to pin#2, and the black wire is Ground and should be

connected to GND.

2.2 Install System Memory

A. DDR3L SO-DIMM Module (1.35V/1.5V)

Step 1: Align a DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.
