Biostar B45M2 Версия V6.x [41/67] 4 后置面板接口

第一章: 主板介绍 | 5

B45M2

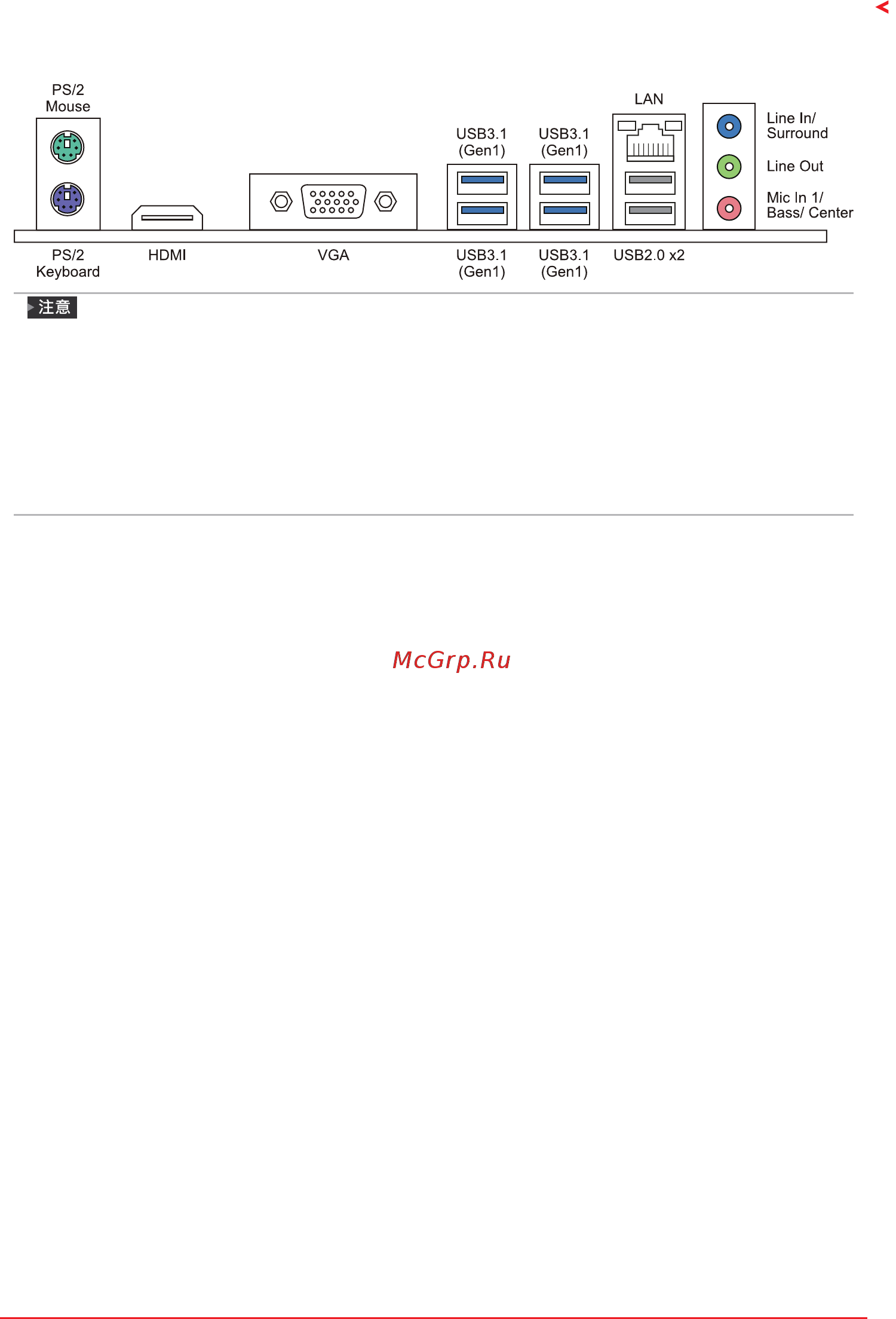

1�4 后置面板接口

带集成显卡的AMD系列处理器才支持HDMI/VGA输出端口。

由于音频芯片支持高保真音频规格，各音频插座的功能由软件定义，上面所列出的各音频插孔

的输入/输出功能表示其默认设置。当连接外部麦克风到音频接口时，请使用Line In（蓝色）和

Mic In（粉红色）插孔。

最高分辨率：

HDMI: 4096 x 2160 @24Hz，符合HDMI 1.4规范

VGA: 1920 x 1200 @60Hz

当使用前置HD音频插孔并插入耳机/麦克风时，后置声音将自动禁用。
