Biostar A55ML+ Версия 6.x [30/53] Chapter 7 bios update

Motherboard Manual

CHAPTER 7: BIOS UPDATE

There are three ways to update the BIOS: BIOS Update Utility, BIOS Online

Update Utility and BIOSTAR BIOS Flasher.

7.1 BIOS UPDATE UTILITY

1. Installing BIOS Update Utility from the CD Driver.

2. Download the proper BIOS from www.biostar.com.tw .

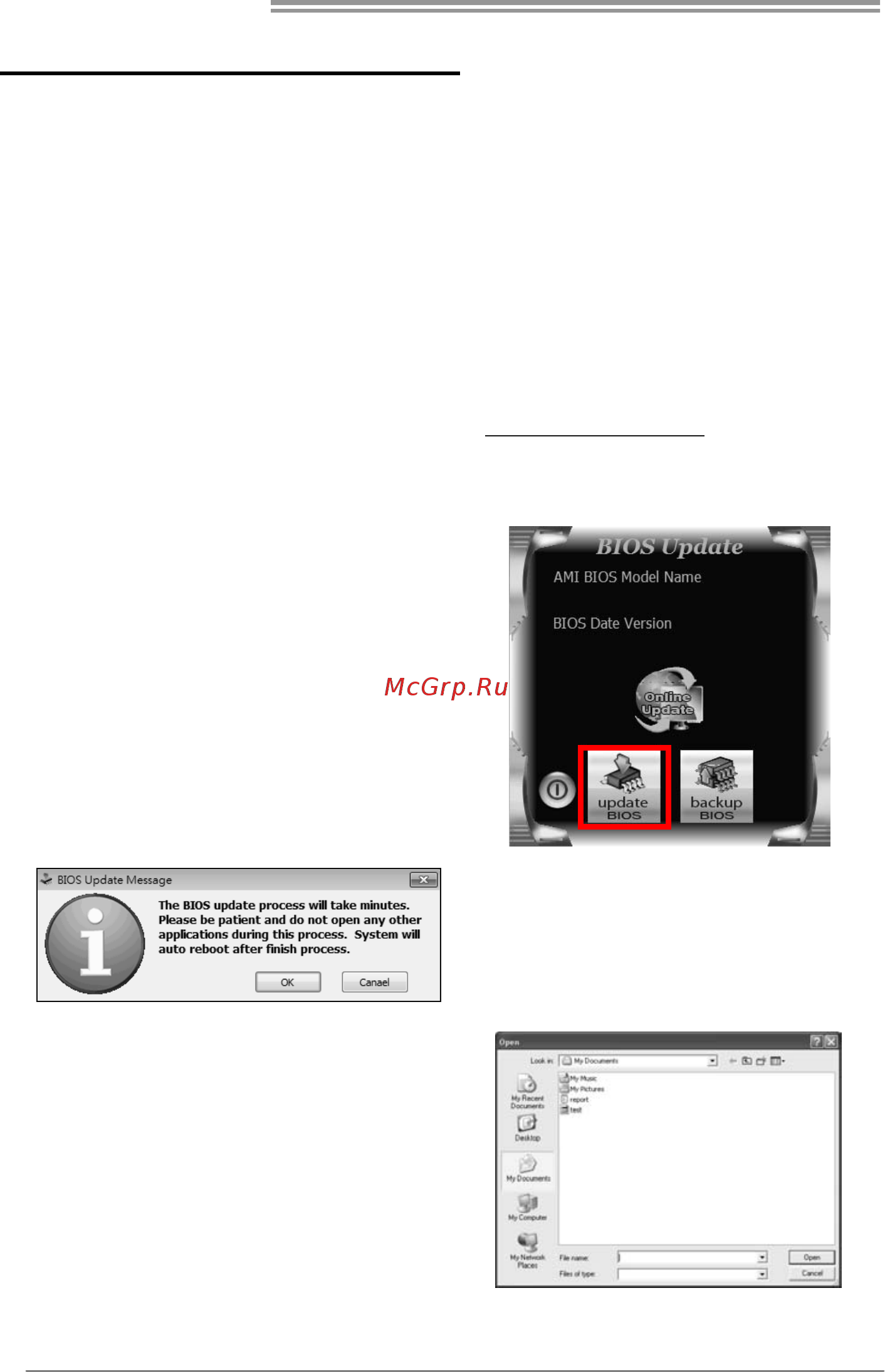

3. Open BIOS Update Utility and click

the Update BIOS button on the main

screen.

4. A warning message will show up to

request your agreement to start the

BIOS update. Click Yes to start the

update procedure.

5. Choose the location for your BIOS

file in the system. Please select the

proper BIOS file, and then click on

Open. It will take several minutes,

please be patient.
