2.5 Expansion Slots

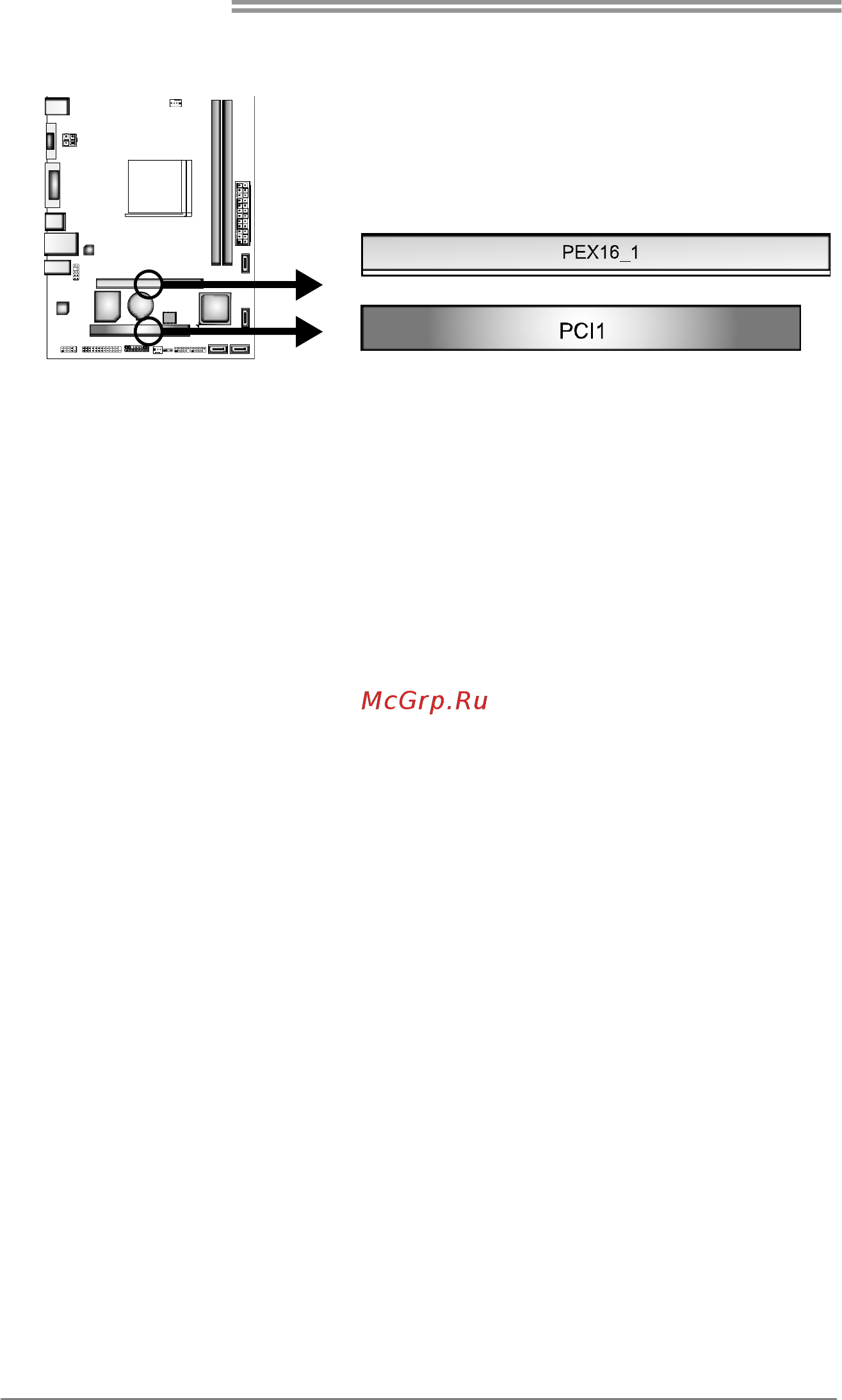

PEX16_1: PCI-Express Gen2 x16 Slot

- PCI-Express 2.0 compliant.

- Maximum theoretical realized bandwidth of 8GB/s simultaneously per

direction, for an aggregate of 16GB/s totally.

- PCI-Express Gen2 supports a raw bit-rate of 5.0Gb/s on the data pins.

PCI1: Peripheral Component Interconnect Slot

This motherboard is equipped with 1 standard PCI slot. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for

expansion cards.

Install an Expansion Card

You can install your expansion card by following steps:

1. Read the related expansion card's instruction document before install the

expansion card into the computer.

2. Remove your computer's chassis cover, screws and slot bracket from the

computer.

3. Place a card in the expansion slot and press down on the card until it is

completely seated in the slot.

4. Secure the card’s metal bracket to the chassis back panel with a screw.

5. Replace your computer's chassis cover.

6. Power on the computer, if necessary, change BIOS settings for the

expansion card.

7. Install related driver for the expansion card.
