Biostar A55ML2 Версия 7.x [32/51] Amd dual graphics setup

Motherboard Manual

AMD Dual Graphics Setup

Step 1: Insert Dual Graphics-Ready graphics card into PEX16_1 slot.

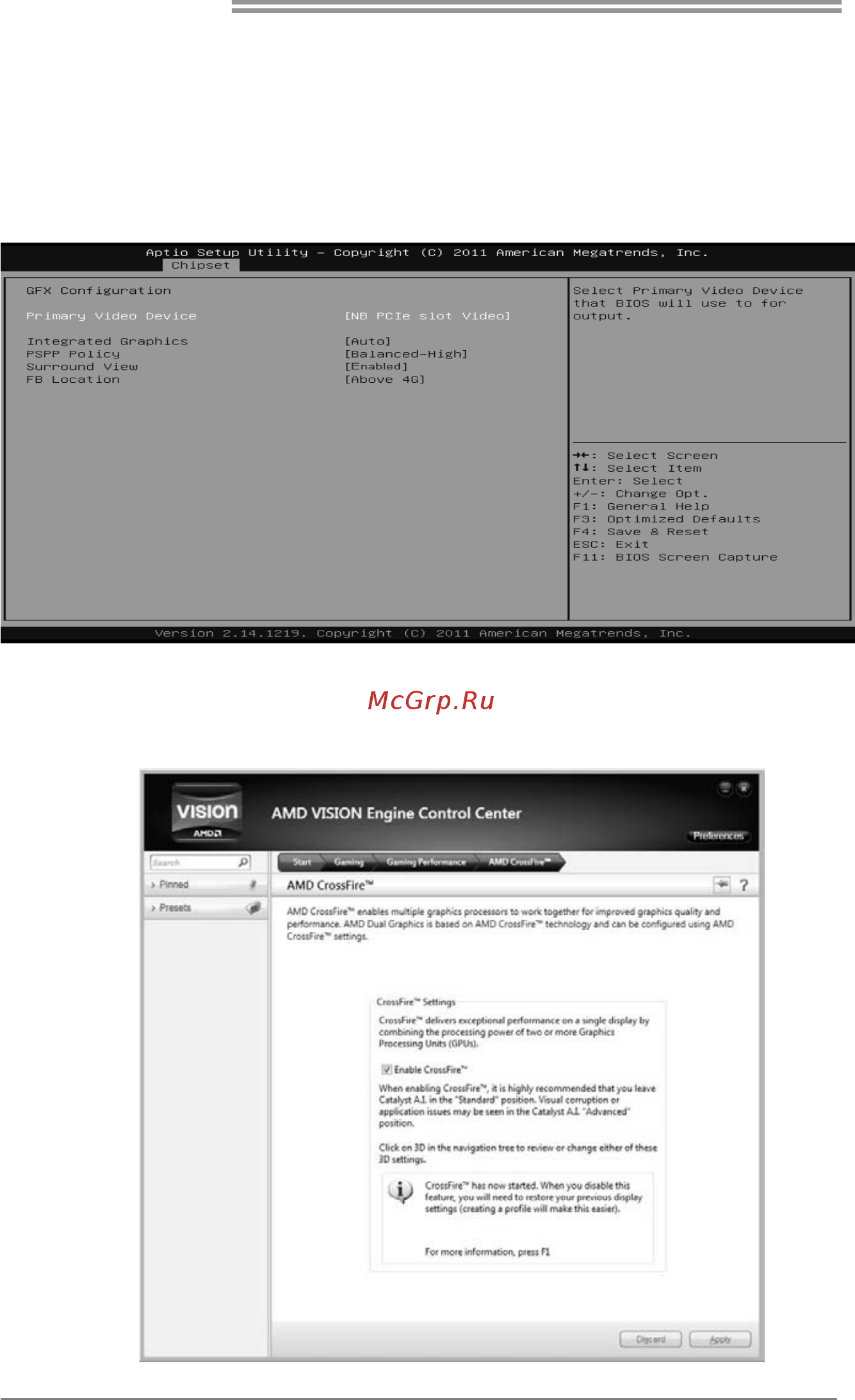

Step 2: Set the BIOS setting as follows:

[Chipset]→[North Bridge]→[GFX Configuration]

→[Surround View]→[Enabled]

Step 3: Install Driver DVD Chipset Driver, and reboot the system. Activate

AMD VISION Engine Control Center to make sure CrossFire has

been enabled.
