Motherboard Manual

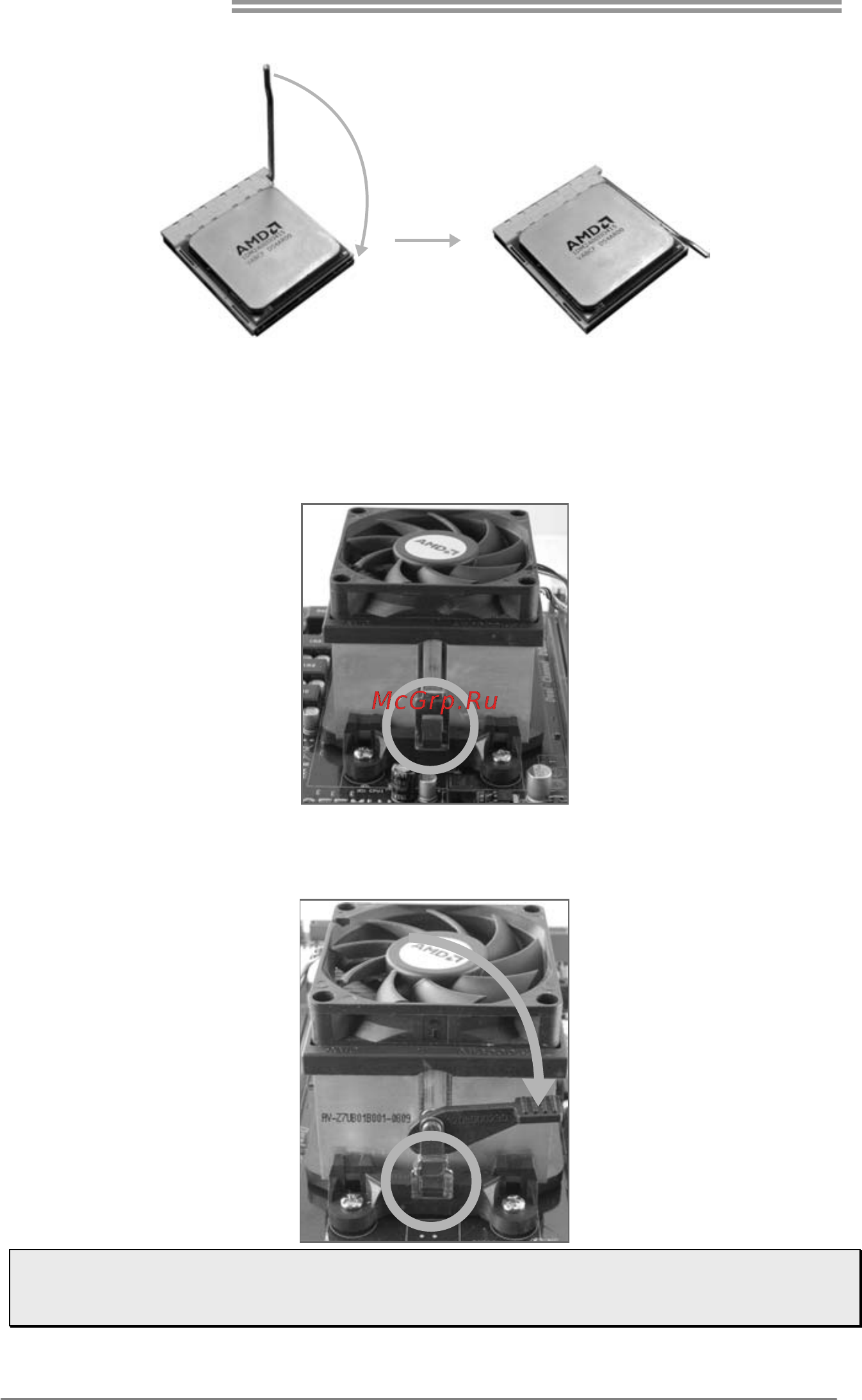

Step 4: Hold the CPU down firmly, and then close the lever to locked the position

2.2 Install a Heatsink

Step 1: Place the heatsink and fan assembly onto the retention frame. Match the

heatsink clip with the socket mounting-lug. Hook the spring clip to the

mounting-lug.

Step 2: On the other side, push the retention clip straight down to lock into the

plastic lug on the retention frame, and then press down the locker until it

stops.

Note1: Do not forget to connect the CPU fan connector.

Note2: For proper installation, please kindly refer to the installation manual of your CPU

heatsink.
