Biostar TA880GB+ Версия 6.x [12/65] Atxpwr2 atx power source connector

Motherboard Manual

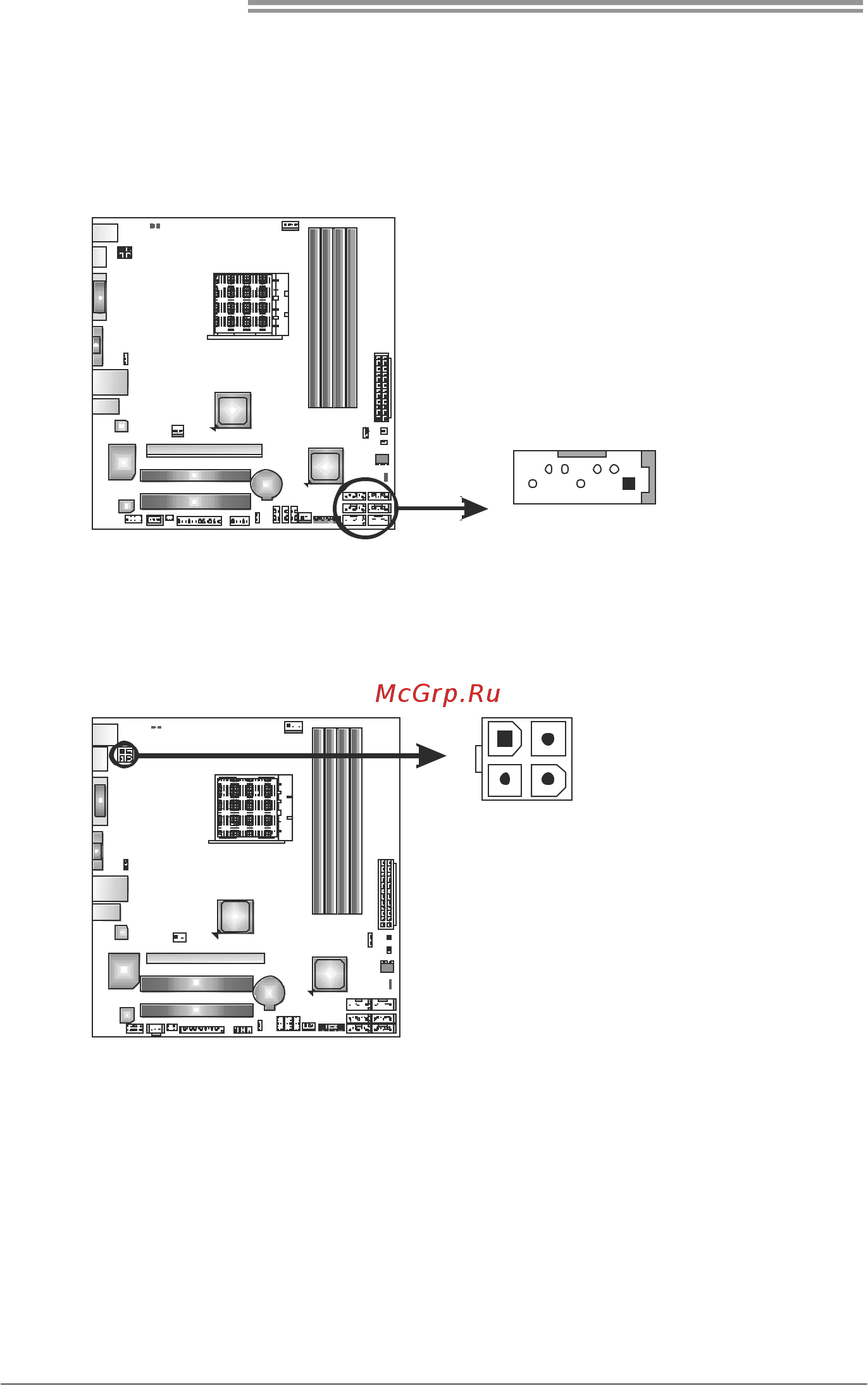

2.4 CONNECTORS AND SLOTS

SATA1~SATA6: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 6 channels SATA interface,

it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.

Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

147

S ATA3 S ATA 6

S ATA2 S ATA 5

S ATA1 S ATA 4

7 Ground

ATXPWR2: ATX Power Source Connector

Connecting this connector will provide +12V to CPU power circuit.

Pin Assignment

1 +12V

2 +12V

3 Ground

4 Ground
