Motherboard Manual
8
2.3 INSTALLINGSYSTEMMEMORY
A. Memory Modules
DDR3_A1
DDR3_B1

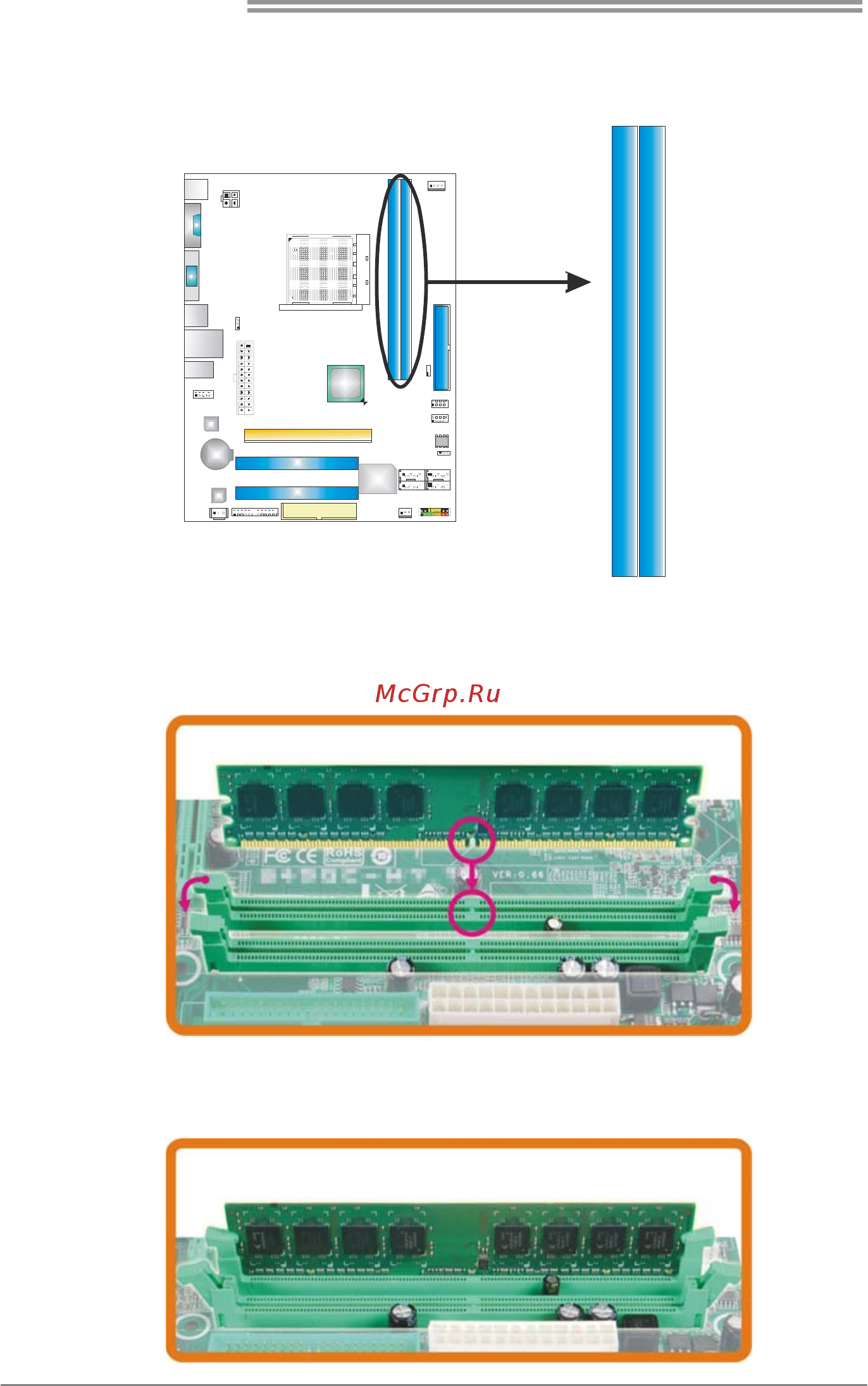

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
