Biostar TA790XE3 Версия 6.x [18/65] Jusbv1 power source header for rear usb ports

Motherboard Manual

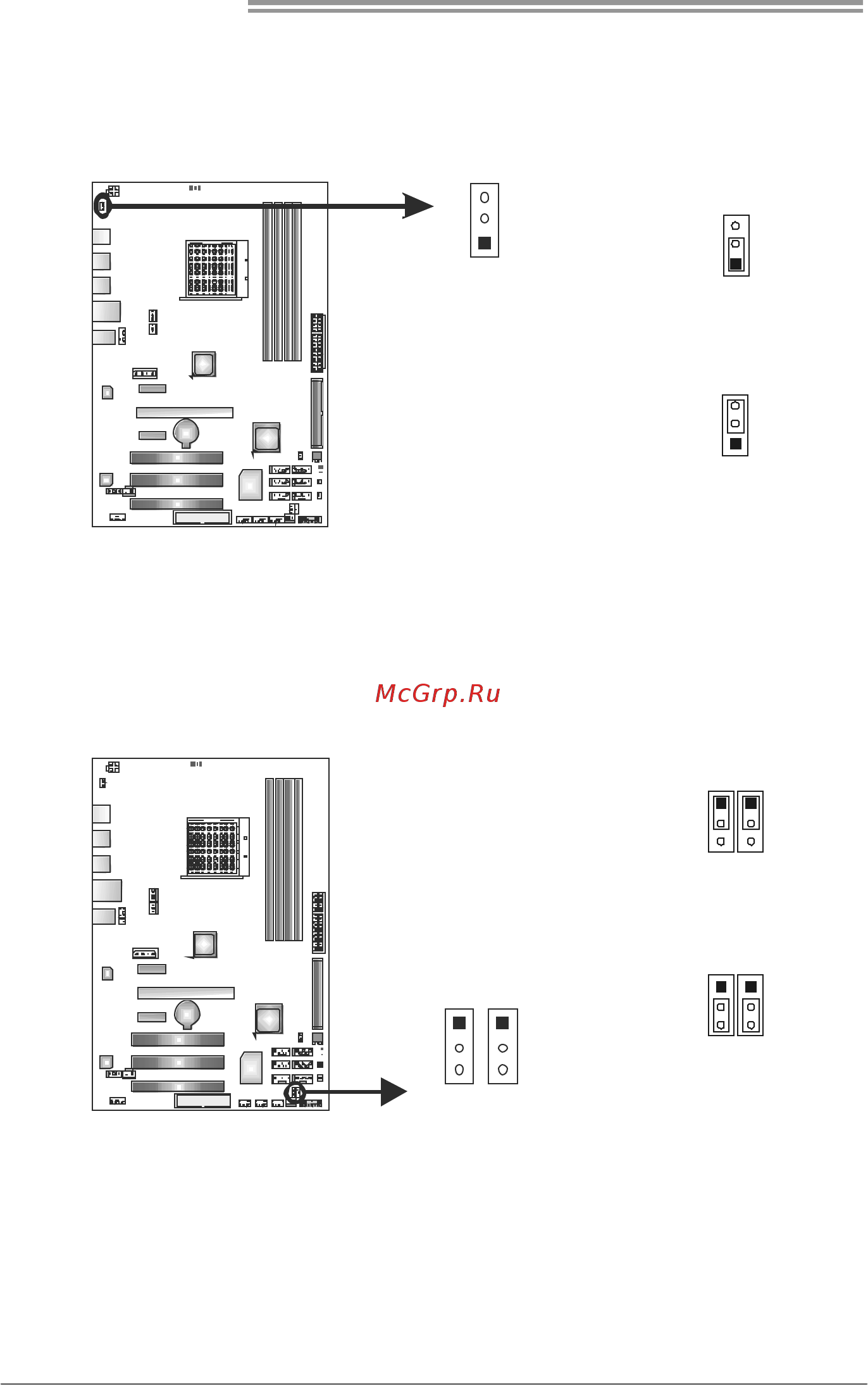

JUSBV1: Power Source Header for Rear USB Ports

Pin 1-2 Close: +5V for USB ports at USB1/USB2/RJ45USB1.

Pin 2-3 Close: +5V STB for USB ports at USB1/USB2/RJ45USB1.

Pin 1-2 close

Pin 2-3 close

JUSBV2/JUSBV3: Power Source Headers for Front USB Ports

Pin 1-2 Close: +5V for USB ports at F_USB1/F_USB2/F_USB3.

Pin 2-3 Close: +5V STB for USB ports at F_USB1/F_USB2/F_USB3.

Pin 1-2 close

JUSBV2

JUSBV3

Pin 2-3 close
