Biostar TA790XE3 Версия 6.x [19/65] F_audio1 front panel audio header

TA770E3/TA790XE3

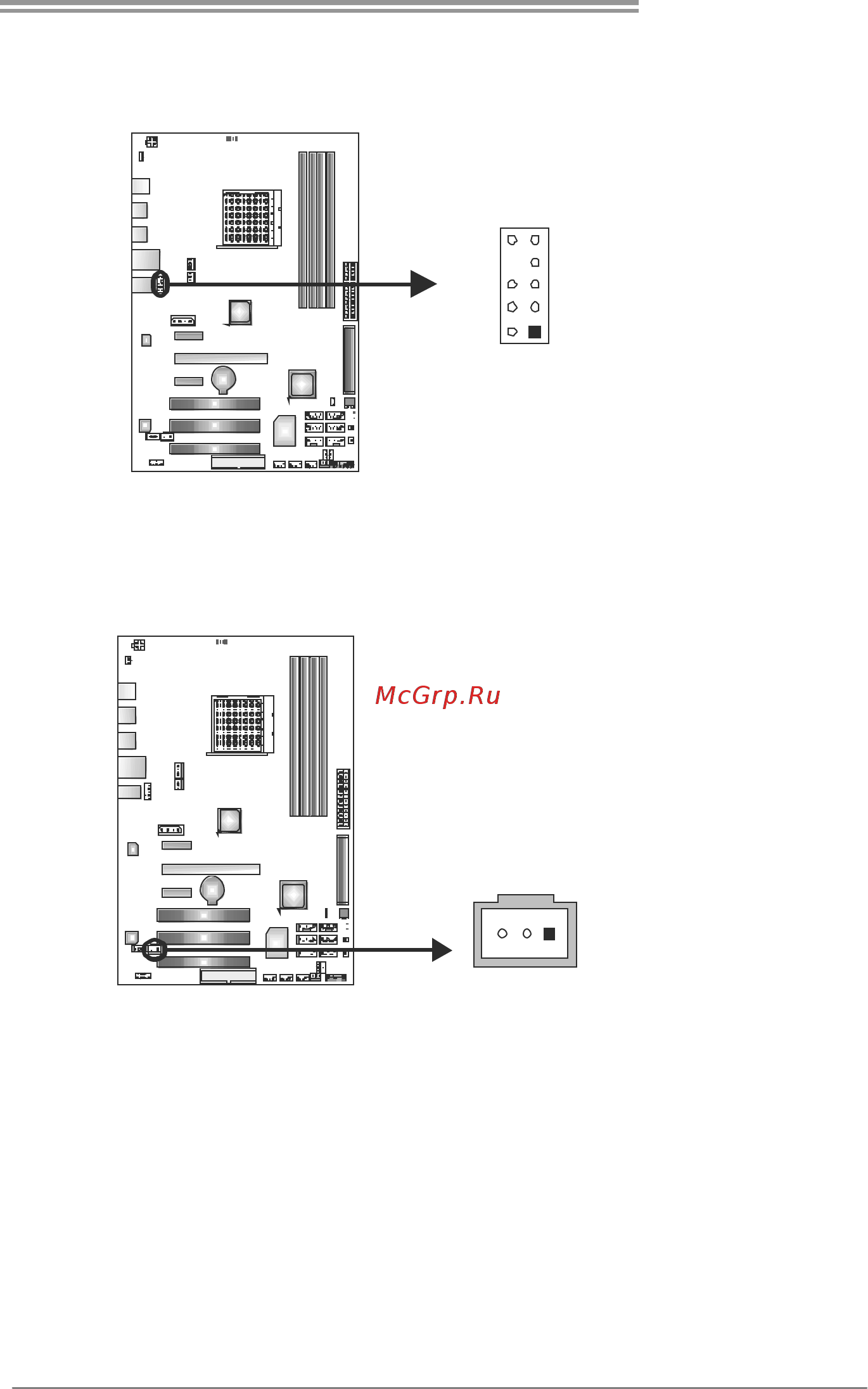

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front

panel. This header allows only HD audio front panel connector, not AC’97.

Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GPIO

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

10 Jack Sense

910

JSPDIFOUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Assignment

1 +5V

2 SPDIF_OUT

3 Ground
