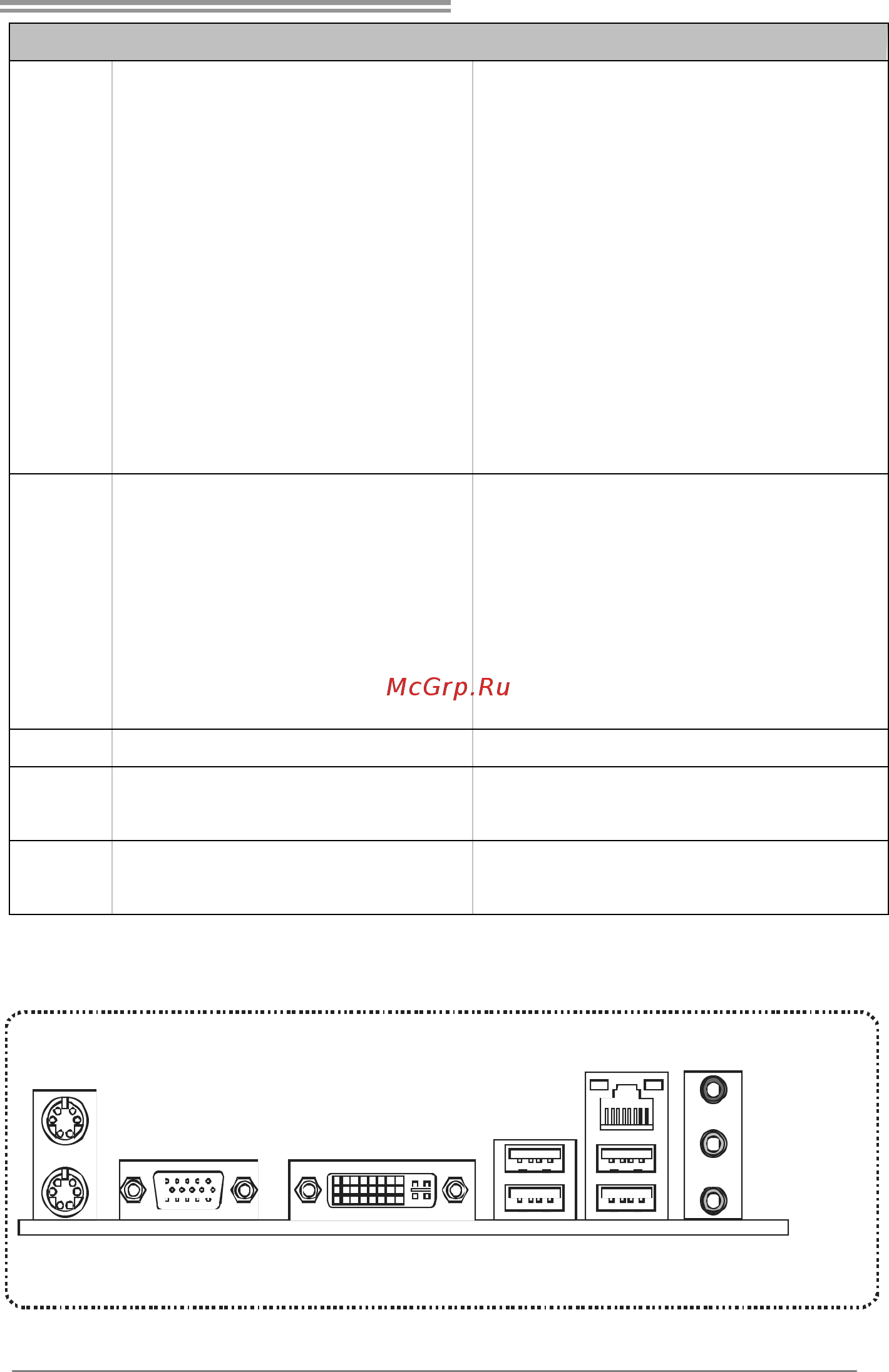

A780L M2G+/A780L M2L+/A780L
3
SPEC
Front Panel Connector x1 Supports front panel facilities
Front Audio Connector x1 Supports front panel audio function
S/PDIF out Connector x1 Supports digital audio out function
CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)
System Fan Header x1 System Fan Power supply
CMOS clear Header x1 Restore CMOS data to factory default
USB Connector x2 Each connector supports 2 front panel USB ports
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Printer Port Connector x1 Each connector supports 1 Printer port
Serial Port Connector x1 Connects to RS-232 Port (A780L M2G+)
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
DVI port x1
VGA port x1
LAN port x1
USB Port x4
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connect to DVI-D monitor
Connect to D-SUB monitor
Connect to RJ-45 Ethernet cable
Connect to USB devices
Provide Audio-In/Out and microphone connection
Board Size 182 mm(W) x 235 mm(L)
Special
Features
RAID 0 / 1 / 1+0 support
OS Support Windows XP / Vista 32 / Vista 64 / 7
Biostar reserves the right to add or remove support
for any OS With or without notice.
1.4 R
EAR PANEL CONNECTORS
PS/2
Mou se
PS/2
Keyboard
USB X2USBX2
LAN
VGA
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
DVI-D
