NF520B A2G+
3
SPEC
SATA Connector x2 Each connector supports 1 SATA devices
Front Panel Connector x1 Supports front panel facilities
Front Audio Connector x1 Supports front panel audio function
CD-in Connector x1 Supports CD audio-in function
S/PDIF out Connector x1 Supports digital audio out function
CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)
System Fan Header x1 System Fan Power supply
USB Connector x2 Each connector supports 2 front panel USB ports
CMOS clear Header x1 Restore CMOS data to factory default
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
Serial Port x1
LAN port x1
USB Port x4
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connects to RS-232 Port
Connect to RJ-45 ethernet cable
Connect to USB devices
Provide Audio-In/Out and microphone connection
Board Size
200 mm (W) x 293 mm (L)
Special
Feature
RAID 0 / 1 support
OS Support
Windows XP / Vista 32 / 64 / Windows 7
Biostar reserves the right to add or remove support for
any OS with or without notice.

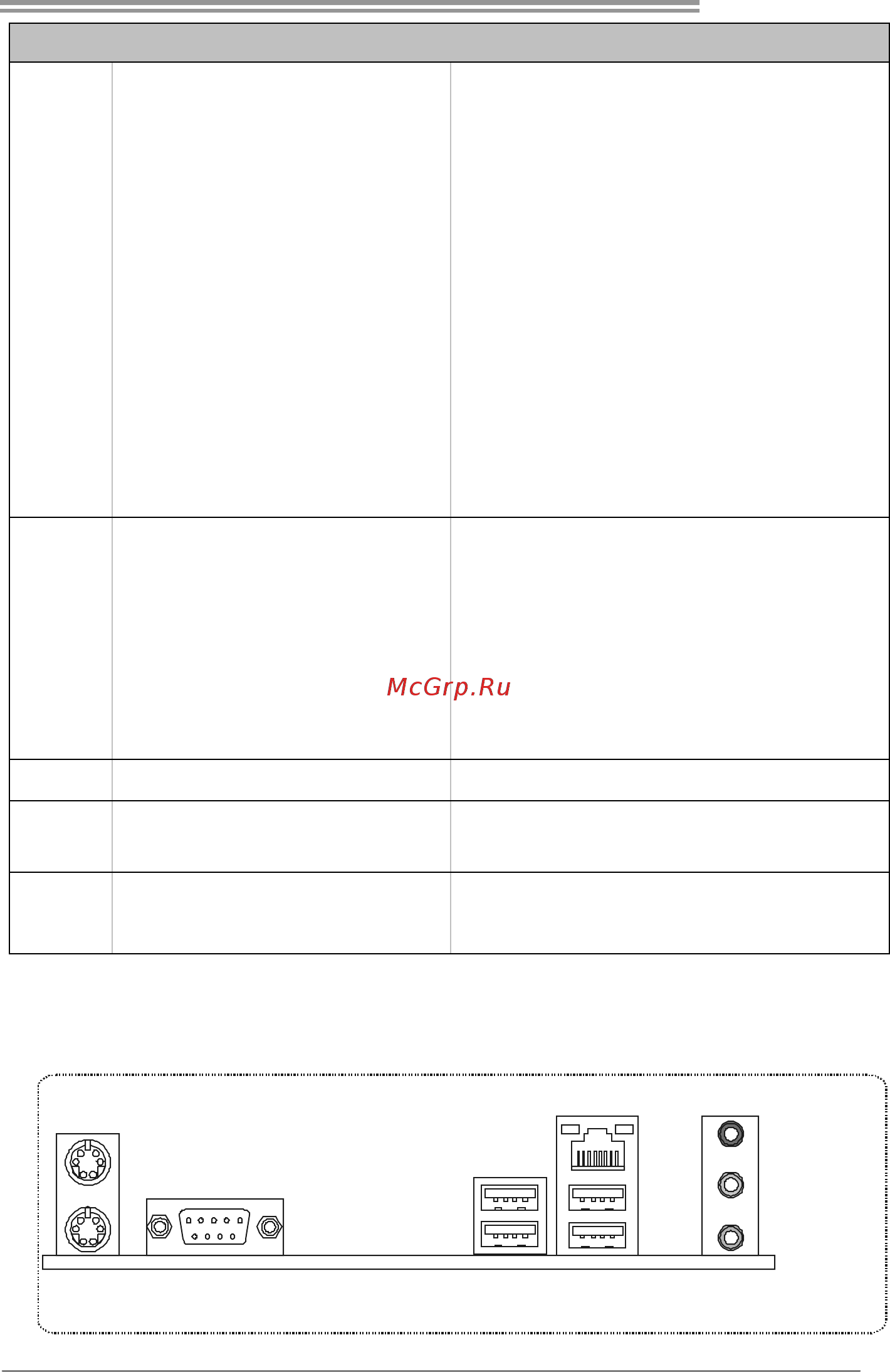

1.4 REAR PANEL CONNECTORS
PS/2
Mouse
PS/2
Keyboard
COM1 USBX2USBX2
LAN
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
