M7VIW BIOS Setup
28
8 PC Health Status

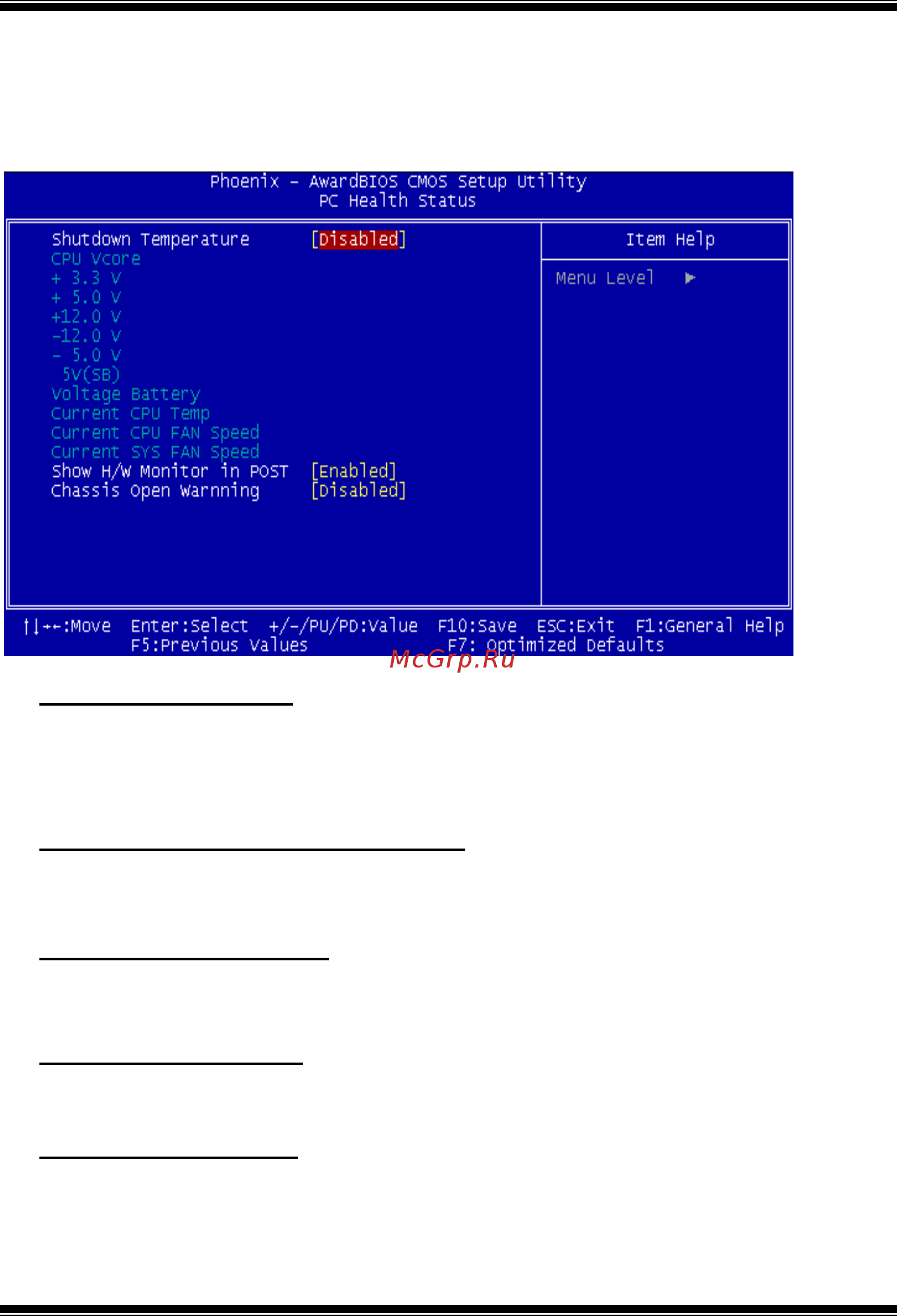

Figure 8. PC Health Status
Shutdown Temperature
This item allows you to set up the CPU shutdown Temperature. This item only effective
under Windows 98 ACPI mode.
The Choices: Disabled (Default), Enabled.
CPU Voltage/+3.3V/+5V/+12V/-12V/-5V
Detect the system’s voltage status automatically.
Current CPU Temperature
This field displays the current temperature of the CPU.
Current CPUFAN Speed
This field displays the current speed of CPU fan.
Current SYSFAN Speed
This field displays the current speed SYSTEM fan.
