K8T890-A9
8

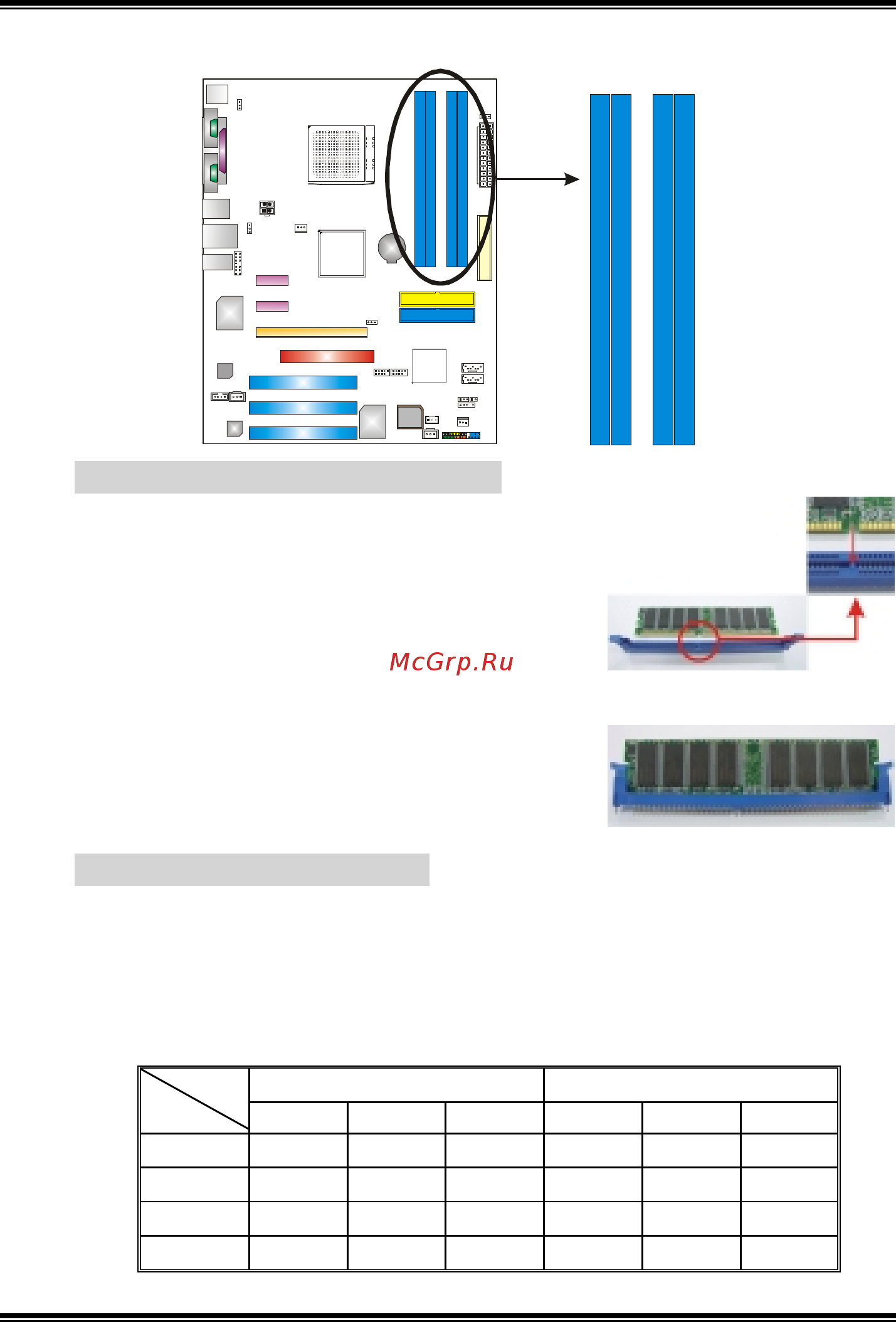

2.3 INSTALLING SYSTEM MEMORY
DIMM2
DIMM4
DIMM1
DIMM3
A DDR Module installation
1. Unlock a DIMM slot by pressing the
retaining clips outward. Align a DIMM on
the slot such that the notch on the DIMM
matches the break on the Slot.
2. Insert the DIMM vertically and firmly into
the slot until the retaining chip snap back
in place and the DIMM is properly seated.
B DDR Installation Notice
1. Please follow the table below to install DDR memory module, or the
system may not boot up or may not function properly.
2. “SS” represents Single Side DDR memory module.
3. “DS” represents Double Side DDR memory module.
4. Star sign “*” represents leave the DIMM socket empty.
64bit 128bit
setup1 setup2 setup3 setup1 setup2 setup3
DIMM1 SS/DS
*
SS/DS SS/DS
*
SS/DS
DIMM2
* * *
SS/DS
*
SS/DS
DIMM3
*
SS/DS SS/DS
*
SS/DS SS/DS
DIMM4
* * * *
SS/DS SS/DS
