K8T890-A9 BIOS Setup

5 Integrated Peripherals

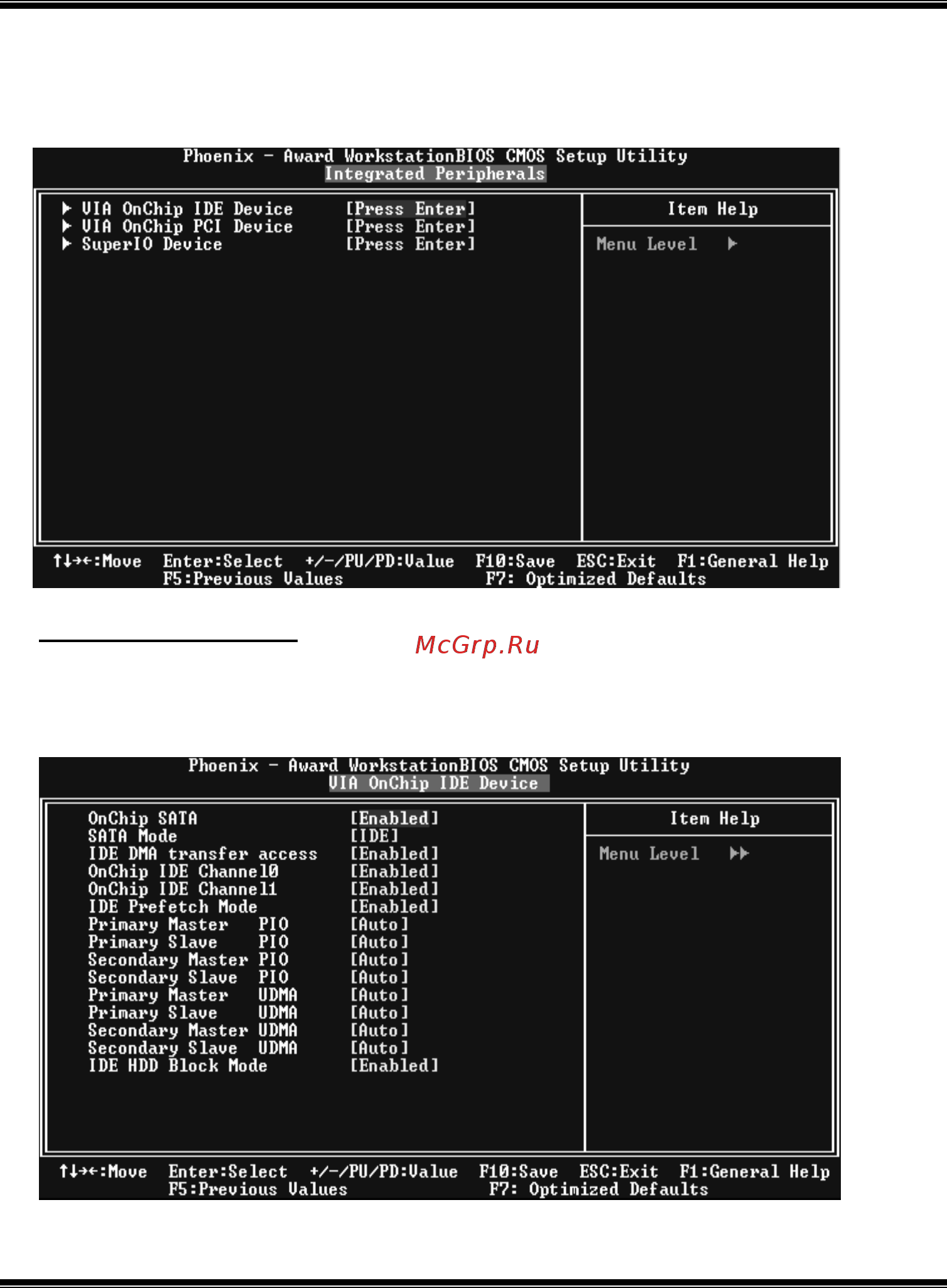

 Figure 5. Integrated Peripheral

VIA OnChip IDE Device

If you highlight the literal “Press Enter” next to the “VIA OnChip IDE Device” label and then

press the enter key, it will take you a submenu with the following options:

 Figure 5.1: VIA OnChip IDE Device
