K8VGA-M

2.4 CONNECTORS, & SLOTS

FFllooppppyy DDiisskk CCoonnnneeccttoorr:: FFDDDD11

The motherboard provides a standard floppy disk connector that

supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This

connector supports the provided floppy drive ribbon cables.

HHaarrdd DDiisskk CCoonnnneeccttoorrss:: IIDDEE11~~22

The motherboard has a 32-bit Enhanced PCI IDE Controller that

provides PIO Mode 0~5, Bus Master, and Ultra DMA 33/66/100/133

functionality. It has two HDD connectors IDE1 (primary) and IDE2

(secondary).

The IDE connectors can connect a master and a slave drive, so you

can connect up to four hard disk drives. The first hard drive should

always be connected to IDE1.

PPeerriipphheerraall CCoommppoonneenntt IInntteerrccoonnnneecctt SSlloottss:: PPCCII11~~33

This motherboard is equipped with 1 standard PCI slot. PCI stands

for Peripheral Component Interconnect, and it is a bus standard for

expansion cards. This PCI slot is designated as 32 bits.

CCoommmmuunniiccaattiioonn NNeettwwoorrkk RRiisseerr SSlloott:: CCNNRR11

The CNR specification is an open Industry Standard Architecture, and

it defines a hardware scalable riser card interface, which supports

modem only.

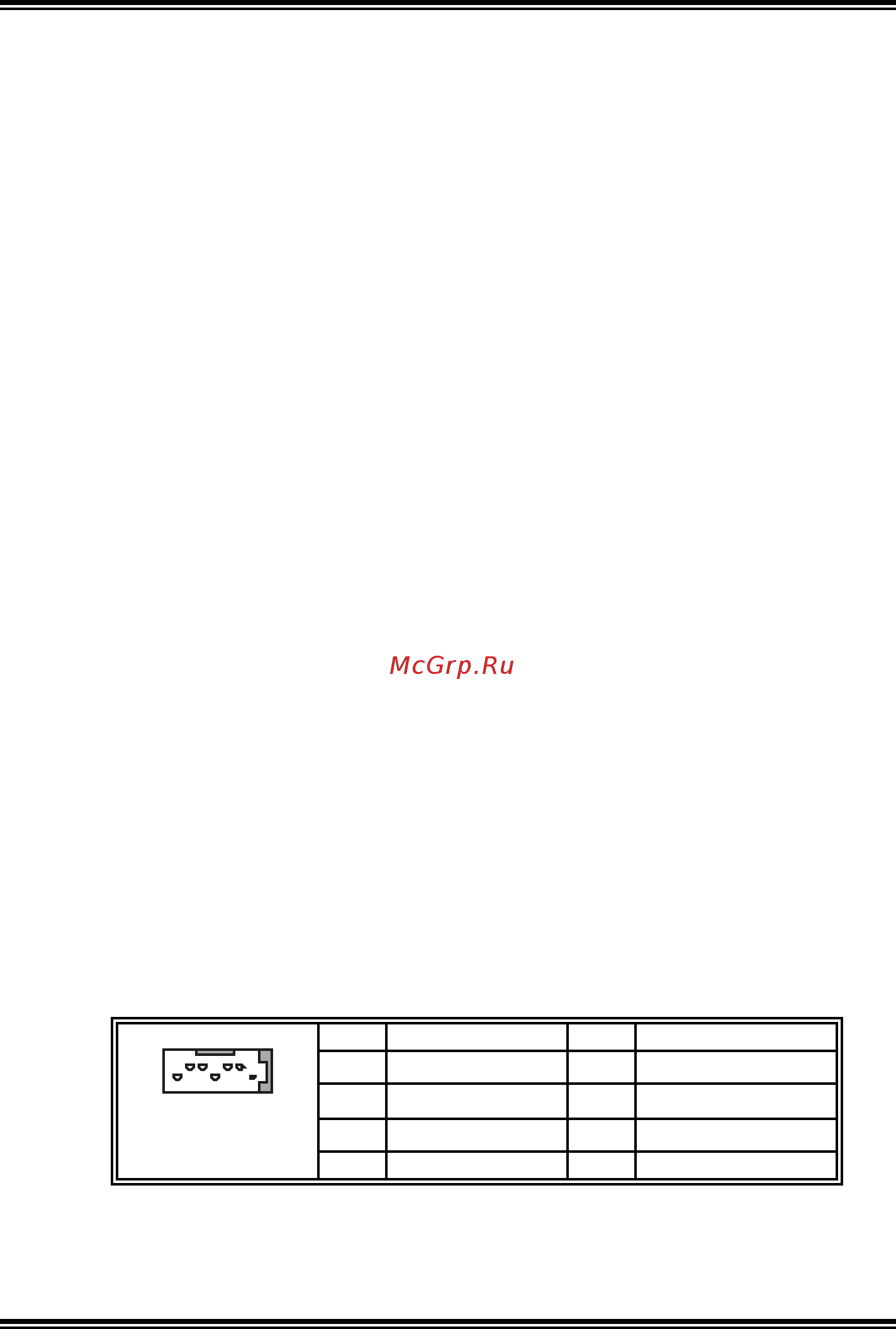

SSeerriiaall AATTAA CCoonnnneeccttoorr:: JJSSAATTAA11~~22

The motherboard has a SATA Controller in SB VT8237 with 2

channels SATA interface, it satisfies the SATA 1.0 spec and with

transfer rate of 1.5Gb/s.

Pin Assignment Pin Assignment

1 Ground 2 TX+

3 TX- 4 Ground

5 RX- 6 RX+

JSATA1~2

7 Ground
