4. Hardware Installation Procedures
Before you proceed with the installation, it is necessary that you have enough
information about the MAP-3120/MAP-3020.
There are four MAP-3020 interfaces (1) Mesh (2) LAN (3) Public (4) WLAN.
WLAN
Public
LAN
Mesh

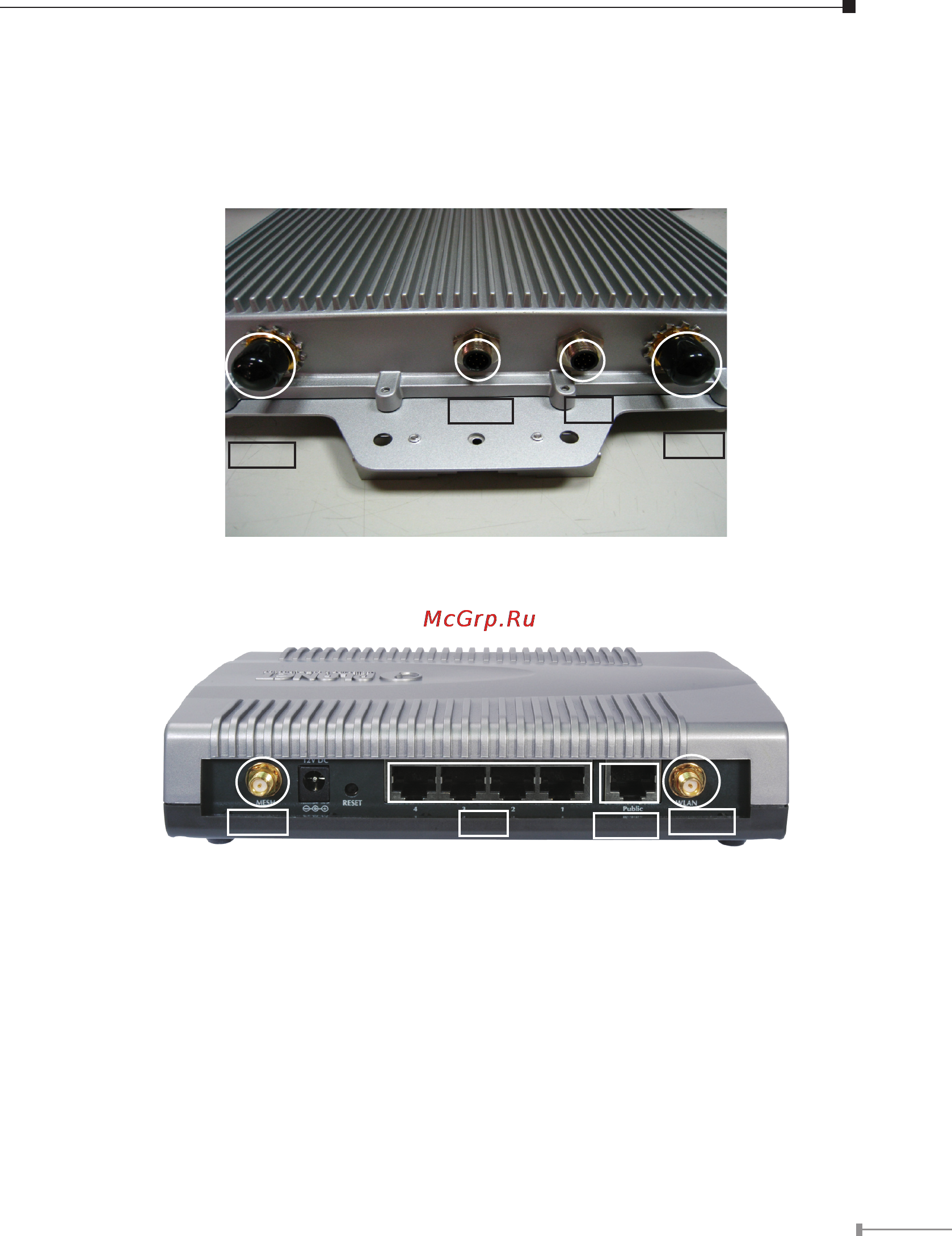

Figure 1. Connectors of MAP-3020
There are four MAP-3120 interfaces (1) Mesh (2) LAN (3) Public (4) WLAN.
WLAN
Public
LAN
Mesh
Figure 2. Connectors of MAP-3120
1. Locate an optimum location for the Mesh AP. Plan for the output frequency of
the Mesh AP, 2.4GHz or 5GHz.
2. Assemble the antennas to Mesh AP follow the frequency band plan. Try to place
them to a position that can best cover your wireless network. The antenna’s
position will enhance the receiving sensitivity. When installing antenna(s), follow
these general tips:
For most elevated antenna installations, we recommend you to ask the professional
installers for proper installation and safety.
