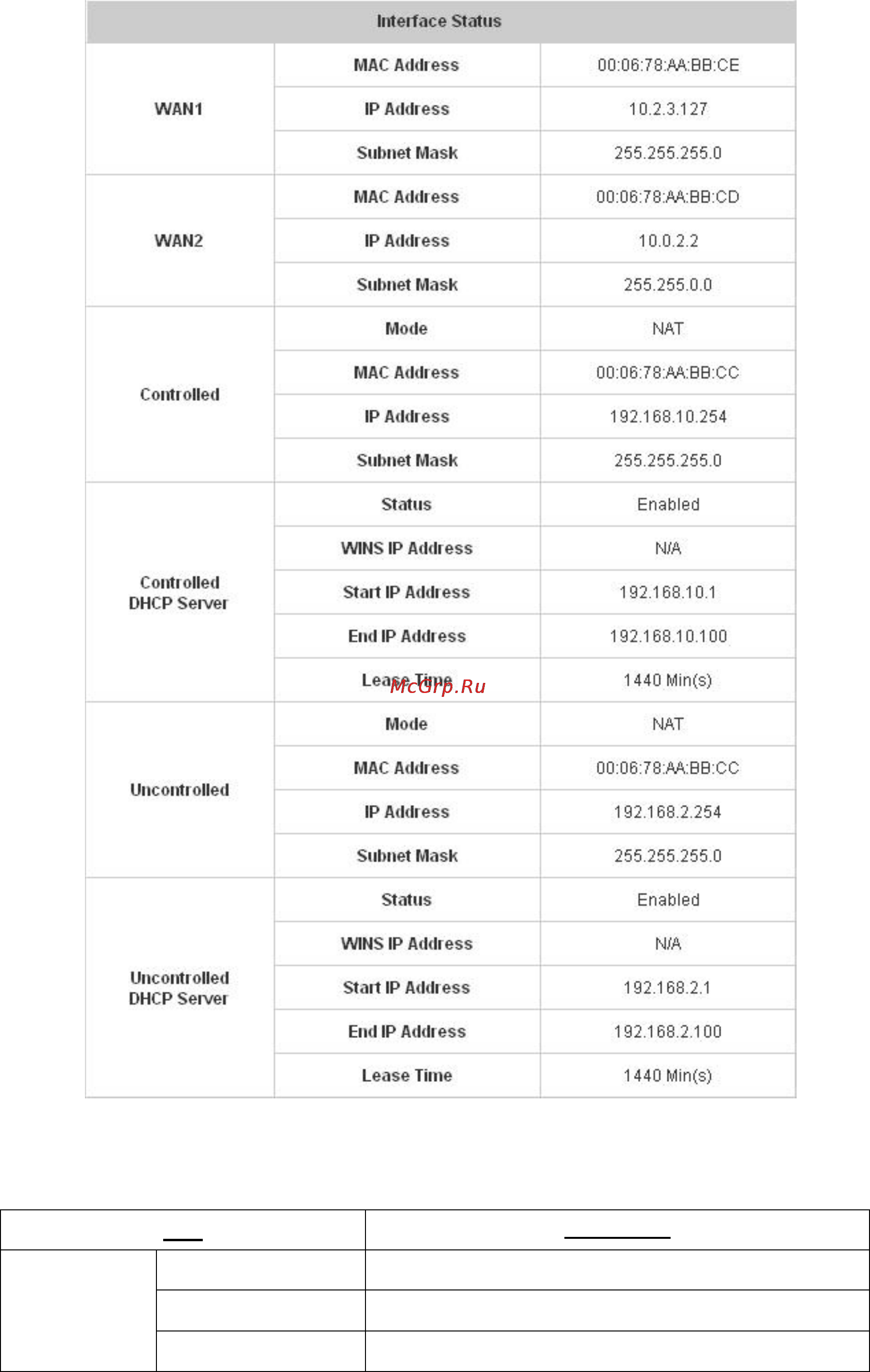

The description of the table is as follows.
Item
Description
MAC Address
The MAC address of the WAN1 port.
IP Address
The IP address of the WAN1 port.
WAN1
Subnet Mask
The Subnet Mask of the WAN1 port.
