6. Appendix B – Network Configuration on PC

After PLANET WLS-1280 is installed, the following configurations must be set up on the PC: Internet Connection

Setup and TCP/IP Network Setup.

y Internet Connection Setup

If the Internet Connection of this client PC has been configured as use local area network already, you can skip

this setup.

 Windows XP

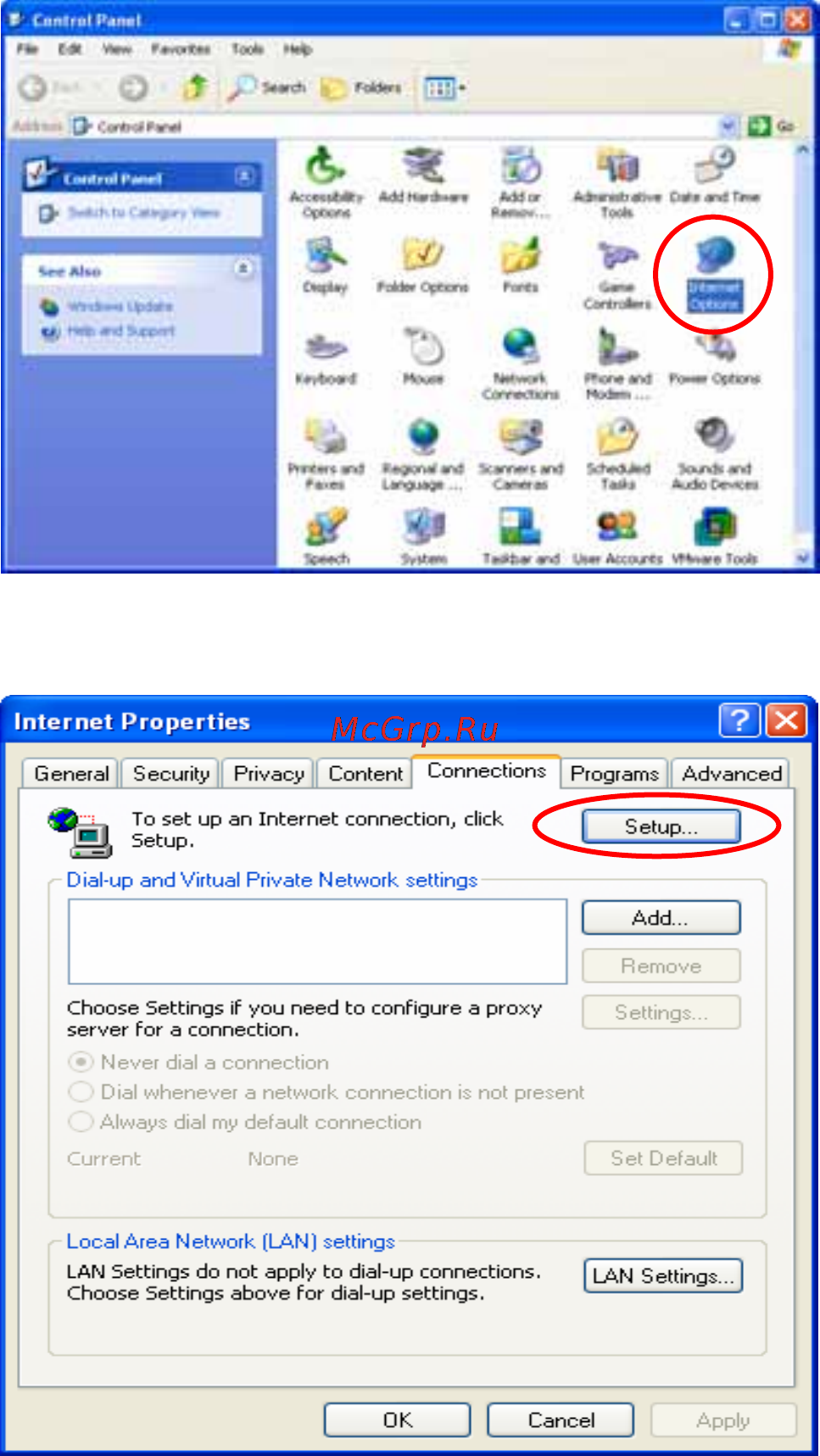

1. Choose Start > Control Panel > Internet Option.

2. Choose the “Connections” label, and then click

Setup.
